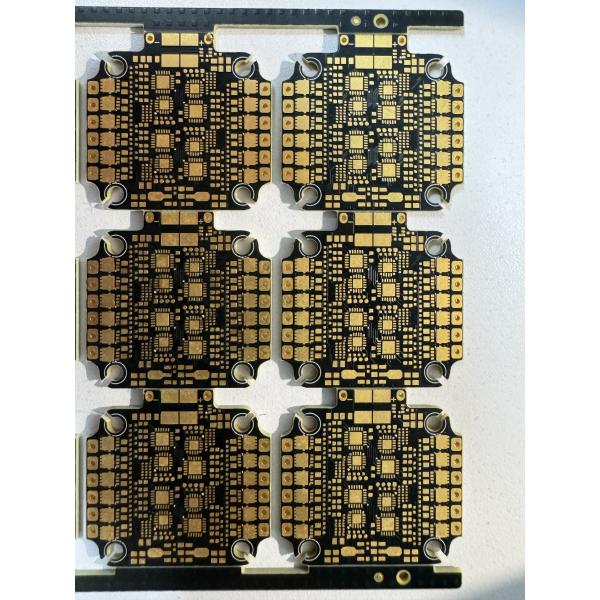

A double-sided PCB (Printed Circuit Board), also commonly referred to as a two-layer PCB, is a type of printed circuit board that features conductive copper layers on both sides of a non-conductive insulating substrate. Unlike single-sided PCBs (which only have a conductive layer on one side), its core design allows for circuit traces, components, and interconnections to be arranged on two opposing surfaces, enabling more complex circuit functionality while maintaining a relatively compact form factor.

Key Characteristics & Construction :

A double-sided PCB is typically constructed from a core material, most commonly FR-4, which is a fiberglass-reinforced epoxy laminate. This insulating substrate is clad with a layer of copper on both sides.

• Vias: The defining feature of a double-sided PCB is the use of vias, which are small, plated through-holes that create an electrical connection between the circuit traces on the top and bottom layers. This "bridge" allows for a much more flexible and intricate routing of signals, as traces can cross over each other without shorting.

• Layers: The board has a simple stack-up: a bottom copper layer, the insulating substrate, and a top copper layer. Additional layers like a solder mask (to protect traces from oxidation and prevent solder bridges) and silkscreen (for component labels and markings) are applied to both sides.

Manufacturing Process :

The manufacturing process for a double-sided PCB involves several key steps:

1. Design & Layout: The circuit is designed using specialized software, with careful consideration for the placement of components and the routing of traces on both sides.

2. Drilling: Holes for components and vias are drilled through the board.

3. Plating: A crucial step for double-sided boards is electroplating, which deposits a thin layer of copper into the drilled holes to form the vias, ensuring electrical connectivity between the two sides.

4. Imaging & Etching: A photoresistive film is applied to both sides, and a UV light exposes the circuit pattern. The exposed areas harden, and the unexposed copper is chemically etched away, leaving only the desired circuit traces.

5. Soldermask & Silkscreen: The protective solder mask and silkscreen layers are then applied to both sides of the board.
