1OZ Copper Thinkness Black Oil Drone Circuit Board With White Silkscreen Colour
1OZ Copper Thinkness Black Oil Drone Circuit Board With White Silkscreen Colour
Specifications
Brand Name :
xingqiang
Model Number :
Varies by goods condition
Place of Origin :
China
Certification :
ROHS, CE
MOQ :
Sample,1 pc(5 square meters)
Price :
NA
Delivery Time :
7-10 work days
Payment Terms :
,T/T,Western Union
Supply Ability :
3000
Copper Wall Thickness :
1OZ
Marterial :
FR4
Soldermask :
Green/ White/ Black/ Blue/ Yellow
Feature :
Lightweight
Min. line Spacing :
0.075
Color :
Green, Blue, Yellow
Legend Color :
White
Type :
Offline
Description

Product Description

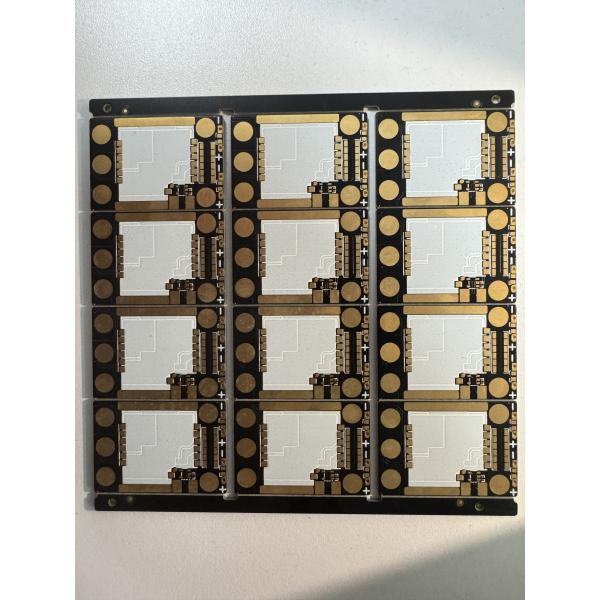

Black oil Drone Circuit Board


A drone circuit board, also known as the flight controller (FC), is the central electronic hub of a drone. Think of it as the drone's brain. This small, sophisticated board contains all the key components that control the drone's flight and functions.


Crucial Functions:
  1. Core Control
    • Circuit chips coordinate various drone functions, including GPS navigation, servos, and motors
    • Ensures flight stability and safety through real-time sensor data processing
  2. Power Management
    • Efficient, low-power management of drone power supply
  3. Sensor Signal Processing
    • Processes data from GPS, pressure sensors, attitude sensors, etc.
    • Provides essential location and flight status information for safe operation
  4. Data Transmission
    • Transmits aerial video and images to ground equipment
    • Supports wireless network transmission to the cloud for long-term unattended data transfer




Special Processes:

  • HDI (High-Density Interconnect) board technology
  • Rigid-flex board (used in foldable arm drones)
  • High-frequency and high-speed materials (used for high-frequency signal transmission such as 5.8GHz image transmission and radar waves)


Item Consumer Drone Industrial Drone Military/Special Drone
Board material Ordinary FR-4 High TG FR-4 / PI PTFE / Ceramic substrate / Rogers
Number of layers 4~8 layers 6~12 layers 8~20 layers + HDI + blind and buried vias
Copper thickness 1~2oz 2~3oz ≥4oz (high-power modules)
Surface treatment OSP/Deposit of gold Immersion Gold/Hot Air Solder Leveling/Anti-sulfurization Process Immersion Gold/Immersion Silver/Three-proof Coating
Anti-interference ability Medium High Extremely high (EMI/EMC reinforced design)
Applicable temperature range 0~70℃ -20~85℃ -40~125℃ or higher
Communication functions Bluetooth/WiFi/Image transmission, etc. 4G/5G/Data transmission/RTK GPS Encrypted communication/Radar/Electronic countermeasure links
