ENIG Surface UAV PCB Drone Circuit Board 1.6mm Thickness Lightweight design
ENIG Surface UAV PCB Drone Circuit Board 1.6mm Thickness Lightweight design
Specifications
Brand Name :
UAV PCB
Place Of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
10000㎡
Delivery Time :
15-16 Working Day
Model Number :
Varies by goods condition
Certification :
ROHS,CE
MOQ :
Sample,1 pc(5 square meters)
Price :
NA
Min. Trace Spacing :
0.075mm
Surface Finish :
ENIG
Material :
FR-4
Silkscreen Color :
White
Solder Mask Color :
Green
Min. Trace Width :
3mil
Testing Method :
Flying Probe Test
Min. Hole Size :
0.1mm
Min. Hole Spacing :
3mil
Layers :
4
Copper Weight :
1oz
Max. Board Size :
528mm x 600mm
Thickness :
1.6mm
Description

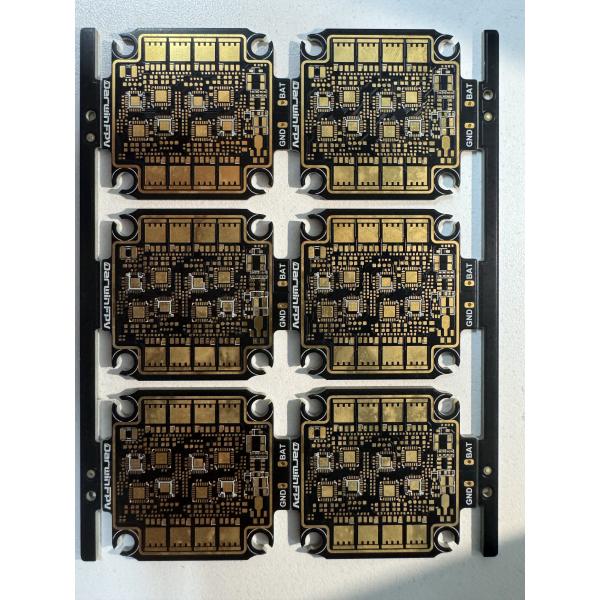

Drone Circuit Board


Drone circuit boards are circuit substrates installed in electronic components such as flight control systems, image transmission systems, electronic speed controllers, power distribution modules (PDB), GPS modules, sensors, communication modules, and cameras. They are responsible for functions such as signal processing, power conversion, and communication control.


Structural and Material Characteristics:

  • Number of layers: Commonly 4-layer, 6-layer or even 8-layer multi-layer boards, used to meet the requirements of high-speed signals and power integrity.
  • Materials: FR-4 is commonly used, and some high-end applications adopt polyimide (PI) or ceramic substrates to improve shock resistance and high-frequency characteristics.

Features:

  • Lightweight design
  • Vibration resistance and temperature resistance
  • High integration
  • EMI/EMC control


Item Consumer Drone Industrial Drone Military/Special Drone
Board material Ordinary FR-4 High TG FR-4 / PI PTFE / Ceramic substrate / Rogers
Number of layers 4~6 layers 6~10 layers 8~16 layers + HDI + blind and buried vias
Copper thickness 1oz 2~3oz ≥3oz (high-power modules)
Surface treatment OSP/Immersion Gold Immersion Gold/Hot Air Solder Leveling/Anti-sulfurization Process Immersion Gold/Immersion Silver/Three-proof Coating
Anti-interference ability Medium High Extremely high (EMI/EMC reinforced design)
Applicable temperature range 0~70℃ -20~85℃ -40~125℃ or higher
Communication functions Bluetooth/WiFi/Image transmission, etc. 4G/5G/Data transmission/RTK GPS Encrypted communication/Radar/Electronic countermeasure links
