White Oil Sinking Gold 4 Layer Rigid Flex PCB Board Stable Performance Customized
White Oil Sinking Gold 4 Layer Rigid Flex PCB Board Stable Performance Customized
Specifications
Brand Name :
xingqiang
Model Number :
Varies by goods condition
Certification :
ROHS, CE
Place of Origin :
China
MOQ :
Sample,1 pc(5 square meters)
Price :
NA
Payment Terms :
,T/T,Western Union
Supply Ability :
3000㎡
Delivery Time :
15-16 work days
Solder Mask Color :
Green
Solder Mask Colour :
Black Solder Mask
Outline Tolerance :
±0.1mm
Pcb Standard :
IPC-A-610 E
Min. Line Width/Spacing :
0.075mm
Finished Copper :
1oz
Material :
FR4,Polyimide
Treatment :
ENIG/OSP/HASL
Panel :
Customized
Other Service :
PCB assembly
Description

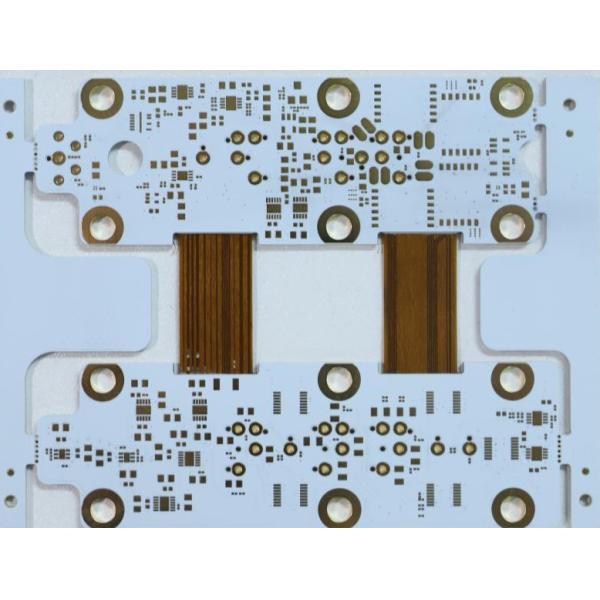

White oil sinking gold 4-layer soft and hard combination plate PCB

The 4-layer gold immersion rigid-flex PCB combines the characteristics of multi-layer structure, gold immersion treatment and rigid-flex design, with the following notable advantages:​ In terms of structure and design, the 4-layer layout provides sufficient wiring space, enabling reasonable partitioning of power, ground and signal layers to meet the integration needs of medium and high complexity circuits. The rigid-flex feature allows it to ensure overall structural stability through the rigid part, while adapting to narrow and irregular assembly spaces by virtue of the bending and folding ability of the flexible part, reducing the use of connectors and simplifying the assembly process.​ In terms of performance, the gold layer formed by gold immersion surface treatment is uniform and dense, with excellent oxidation resistance and wear resistance, which can maintain good solderability for a long time, especially suitable for high-frequency plugging or precision welding scenarios. Moreover, the gold layer has good conductivity, which can improve the signal transmission efficiency.​ In addition, the gold immersion process has high stability, which can ensure the consistency of the surface performance of the board and reduce the production defect rate. Compared with high-order multi-layer boards, the 4-layer structure makes material costs and processing difficulties more controllable under the premise of meeting performance requirements. Combined with mature rigid-flex technology, the production cycle is relatively controllable, making it suitable for mass production. It is widely used in communication equipment, precision instruments, automotive electronics and other fields.


Product Features:


Feature Category Specification Details
Layer Structure Number of layers 4 layers (2 flexible + 2 rigid)
Material composition Fr4 (rigid) + PI (flexible)
Physical Properties Board thickness 1.0mm (rigid) + 0.15mm (flexible)
Copper thickness 35μm (outer layer), 35μm (inner layer)
Surface finish ENIG (Electroless Nickel Immersion Gold)
Circuit Design Line width/space 6/6 mil (min)
Solder mask Green solder mask (rigid area), Coverlayer (flexible area)
Functional Features Flexibility Flexible areas allow bending/folding
Rigidity Rigid areas provide mechanical support
PTH (Plated Through Holes) Electrical connection between layers



Appplication:

  • Consumer electronics: Smartphones (connecting components like cameras, flashlights, and fingerprint sensors), foldable screen devices (enabling flexible screen unfolding and folding), wearables (e.g., smartwatches and health monitoring bands), and TWS earbuds (compact design with high-density interconnects).
  • Medical devices: Endoscopes (precise image transmission and operation), pacemakers (reliable signal transmission in compact spaces), and portable diagnostic equipment (high-precision and miniaturized designs).
  • Automotive electronics: In-vehicle displays, sensors, battery management systems (BMS) for new energy vehicles, and ADAS (advanced driver assistance systems), ensuring stable operation in complex environments.
  • Industrial automation: Industrial robots and sensor control modules (high-density integration and reliable performance in harsh conditions).
  • Aerospace: Satellite communication equipment and flight control systems (lightweight design for high-speed signal transmission in extreme environments).
  • IoT (Internet of Things): Smart home devices and edge computing equipment (efficient data transmission and high integration).
