Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Cast Iron Industrial Woltman Water Meter
Specifications
Place of Origin :
Ningbo
Brand Name :
Yongzhou
Certification :
ISO9001:2008
Model Number :
LXLG-125B
MOQ :
50pcs
Packaging Details :
Wooden box
Delivery Time :
15-30days after receiving deposit
Payment Terms :
T/T , L C, West union,etc.
Supply Ability :
5000pcs/week
Model NO :
LXLG-125B
Dial :
Dry Dial
Feature :
Horizontal|Detachable
Material :
Iron
Product Name :
Industrial Water Meter
Standard :
ISO 4064|Class B
Water Type :
Hot|Cold
Description

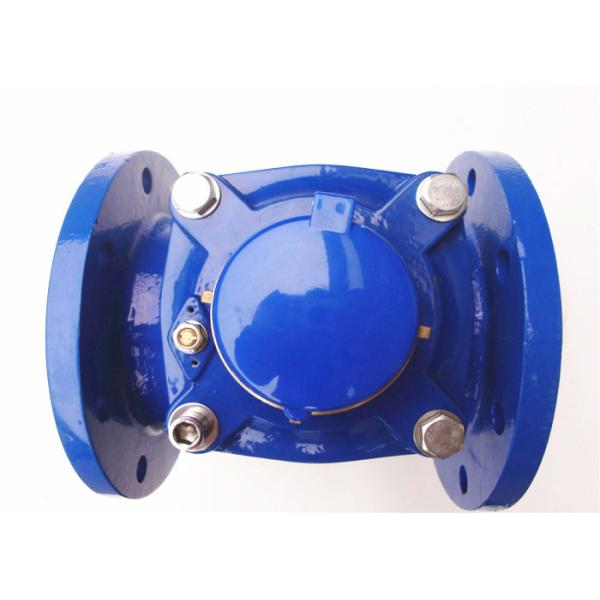

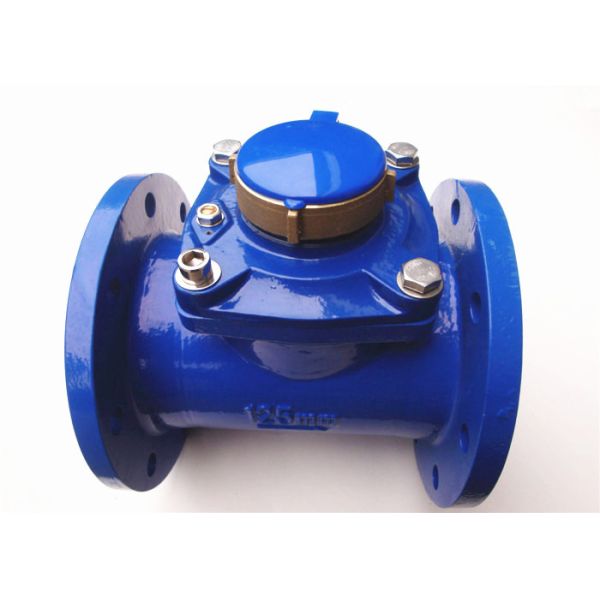

Cast Iron Industrial Water Meter Horizontal Dry Dial LXLG-125B

Quick Detail:

1. Type name: Woltmann removable type

2. Model No.: LXLG-125B

3. Standard :ISO 4064 Class B

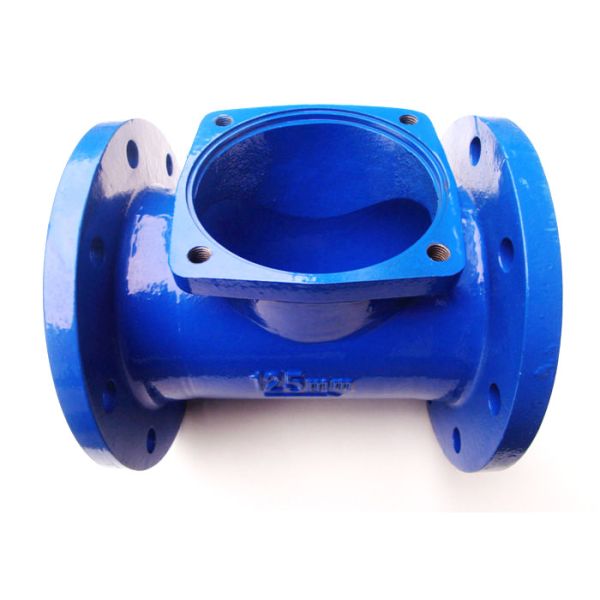

4. Material: Cast iron

5. Dry-dial,magnetic type

6. Industrial water meter

Description:

Cast Iron Woltmann Dry Type Water Meter LXLG-125B

Product features:

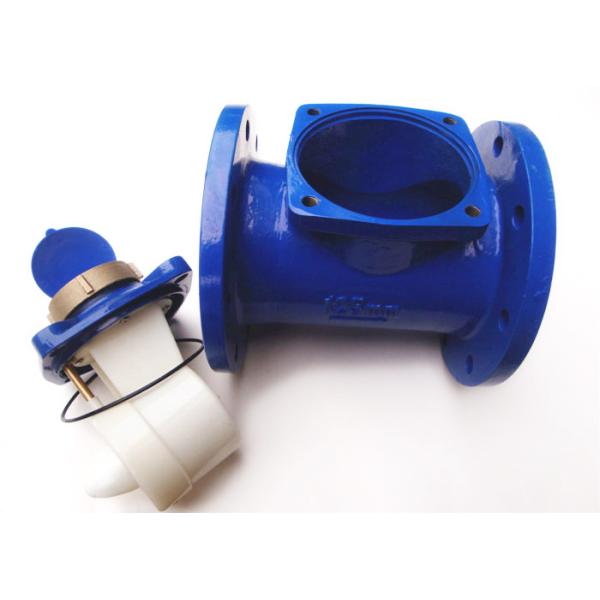

Woltmann detachable type

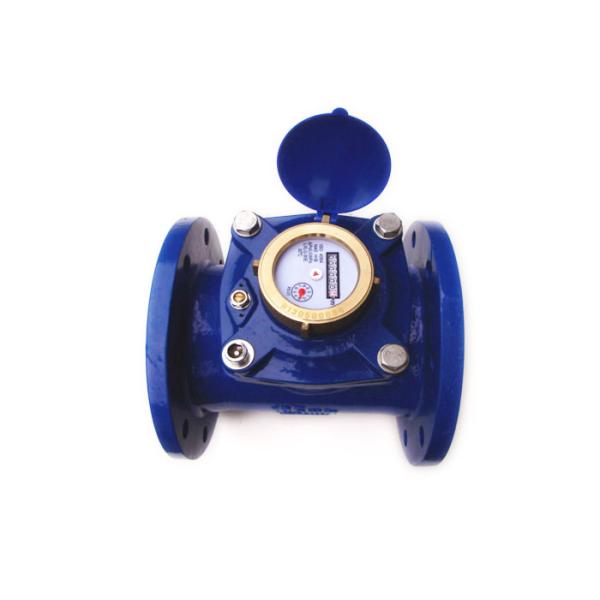

Dry-dial,magnetic drive

Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term

Steady and reliable performance

Application:

This range of water meter is used to measure the total quantity of cold (hot) water which consumed in industrial and mining enterprise passing through the pipeline .

Installation requirements:

  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Main Technical data

Meter Size DN (mm)

Class

Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Starting

Flow

Min

Reading

Max

Reading

m³/h

L/h

m³

50

B

30

15

3

0.45

150

0.01

9999999

65

B

50

25

5

0.75

170

0.01

9999999

80

B

80

40

8

1.2

280

0.01

9999999

100

B

120

60

12

1.8

400

0.01

9999999

125

B

200

100

20

3

800

0.01

9999999

150

B

300

150

30

4.5

1200

0.01

9999999

200

B

500

250

50

7.5

1500

0.01

9999999

250

B

800

400

80

12

2500

0.01

9999999

300

B

1200

600

120

18

6000

0.01

9999999

400

A

2000

1000

300

80

15000

0.01

9999999

B

200

30

500

A

3000

1500

450

120

20000

0.01

9999999

B

300

45

Competitive Advantage:

100% tested

Reasonable price with good quality

Long time guarantee

On time delivery
