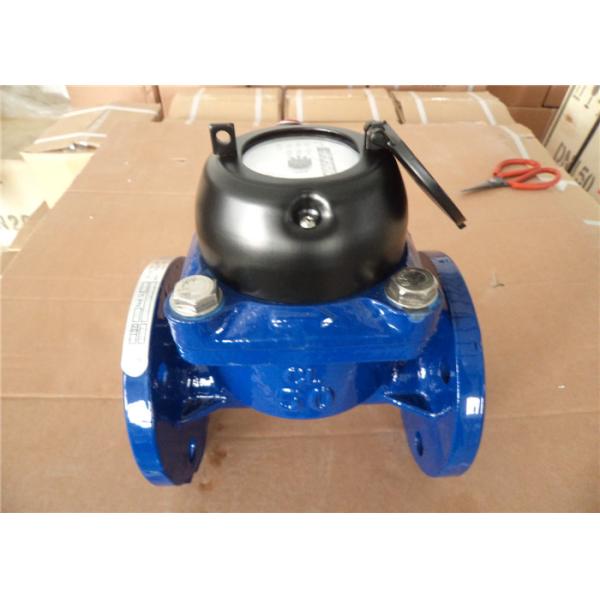

Agriculture Woltman Water Meter
Agriculture Woltman Water Meter
Specifications
Dial :
Dry Dial
Feature :
Magnetic|Removable
Material :
Iron
Product Name :
Woltman Water Meter
Standard :
ISO 4064|Class B
Water Type :
Hot|Cold
Model NO :
LXLG-50B
Place of Origin :
Ningbo
Brand Name :
Yongzhou
Certification :
ISO9001:2008
Model Number :
LXLC-50B
MOQ :
50pcs
Packaging Details :
Wooden box
Delivery Time :
15-30days after receiving deposit
Payment Terms :
T/T , L C, West union,etc.
Supply Ability :
5000pcs/week
Description

Magnetic Woltman Water Meter Dry Dial With ISO 4064 Class B For Agriculture

Quick Detail:

1. Type name: Woltmann removable type

2. Model No.: LXLG-50B

3. Standard :ISO 4064 Class B

4. Material: Cast iron

5. Dry-dial,magnetic type

6. Horizontal installation

Description:

Horizontal Woltmann Detachable Dry-dial Type Cold (Hot) Water Meter LXLG-50B

Product features:

Woltmann detachable type

Dry-dial,magnetic drive

Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term

Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.

Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

  1. Meter should be installed in horizontal position with the register face upwards
  2. Pipe line must be flushed before installation
  3. The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)

Class

Qs

Overload

Flow

Qp

Nominal

Flow

Qt

Transitional

Flow

Qmin

Min

Flow

Min

Reading

Max

Reading

m³/h

m³

50

B

30

15

4.5

1.2

0.01

9999999

65

B

50

25

7.5

2

0.01

9999999

80

B

80

40

12

3.2

0.01

9999999

100

B

120

60

18

4.8

0.01

9999999

125

B

200

100

30

8

0.01

9999999

150

B

300

150

45

12

0.01

9999999

200

B

500

250

75

20

0.01

9999999

250

B

800

400

120

32

0.01

9999999

300

B

1200

600

180

48

0.01

9999999

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Competitive Advantage:

Reasonable price with good quality

Long time guarantee

100% tested

On time delivery
