Specifications
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Model Number :
htf1540-0311nh
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
High Temperature Sintering
Fuel :
Electric
Tube Material :
Quarz
Atmosphere :
Vacuum
Furnace Tube Dimensions :
Φ150 mm (ID) × 2100 mm
Transport Package :
Wooden Packaging
Specification :
880*1370*2500mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description

Electric Holding Furnace Htf1540-0311nh Tube Furnace Phi 150 times 2100mm Quartz for Customization

Typical Applications:

High-temperature sintering and heat treatment processes for glass insulators, ferrosilicon sheets, and similar products; also applicable to sintering processes of metal-cased dielectric ceramics under binary atmospheres.

2100mm Quartz High Temperature Tube Furnace Horizontal Phi 150 Times
Parameters and Features:
1.Rated temperature: 1000ºC;
2. Furnace tube dimensions: Φ150 × 2100 mm;

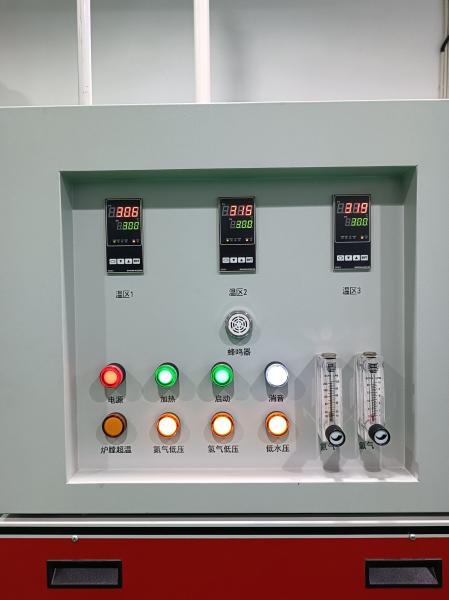

3.Number of temperature zones: 3;
4. Heating via FEC vacuum-formed ceramic fiber heaters with surrounding heating;
5.Single-zone and multi-zone designs with independent temperature control.
6.Flow Meter Range: Nitrogen 10-100LPM; Hydrogen 1-10LPM;

7.Alarm Protection: Audible & visual alarms for overtemperature, broken thermocouple, low pressure, etc., with overtemperature alarm and heating cutoff protection;
8.Maximum Heating Power: 15kW;
9.Idle Furnace Heat Preservation Power: ≤7.5kW;
10.Surface Temperature Rise: ≤35ºC;
11.Equipment Weight: Approx. 500Kg;
12.Equipment Exterior Color: Light Gray;
13.Dimensions: 880×1370×2500mm (W×H×D).

2100mm Quartz High Temperature Tube Furnace Horizontal Phi 150 Times
Delivery Checklist
Name Main Contents Quantity
Basic Components Furnace Main Uni 1 unit
Inspection Certificates Certificates for key purchased components 1 set
Technical Documents User manual, technical documents for key purchased components, etc. 1 set
Key Components FEC Heater 1 set

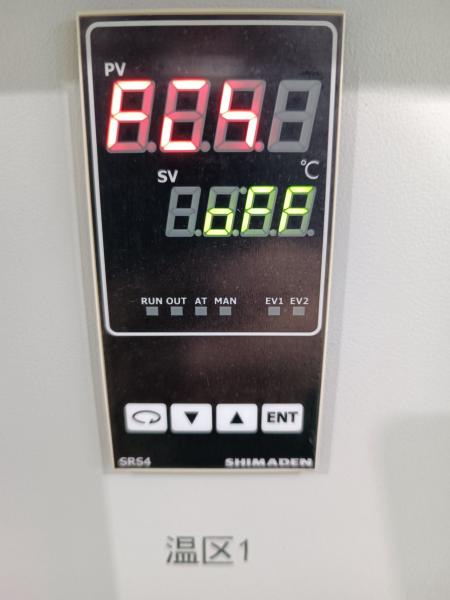

Temperature Controller
 Shimaden SRS11 3 unit
Quartz furnace tube Φ150×2100mm 1 set
Spare Parts Solid-State Relay (SSR) 1 piece
Heater 1 set
Graphite plate 100×100×6mm 3 piece

Operating Conditions:

1.Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, no corrosive gases, no strong airflow disturbance;
2.Gas Supply Requirements:Nitrogen: 0.1-0.3 MPa, 99.999% high-purity nitrogen gas, consumption approx. 3-6 m³/h;Hydrogen: 0.1-0.3 MPa, consumption approx. 0.3-0.6 m³/h;
3.Water Supply Requirements: 0.1-0.3 MPa, flow rate 1-3 L/min;
4.Ventilation System: Non-contact exhaust system, exhaust capacity >7 m³/h;

5.Floor Requirements: Level, no significant vibration, load-bearing capacity >300 kg/m²;
6.Power Supply: Capacity >20 kVA, 3-phase 5-wire, voltage 220/380 V, frequency 50 Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Ground wire: Yellow-green;
7.Installation Space: 3000×3000×4400 mm (W×H×D), installation area >9 m².
