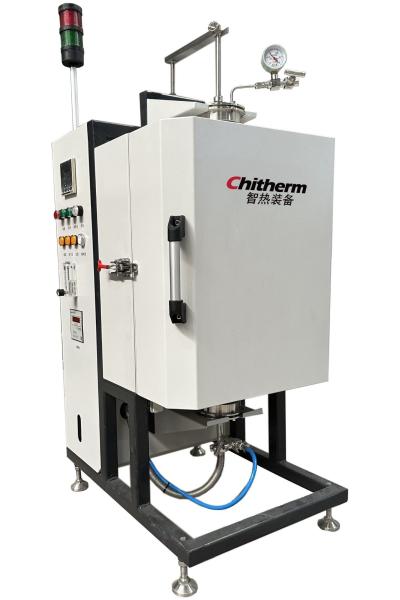

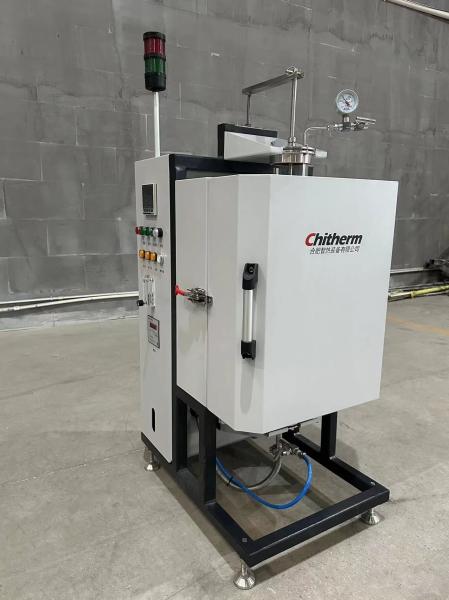

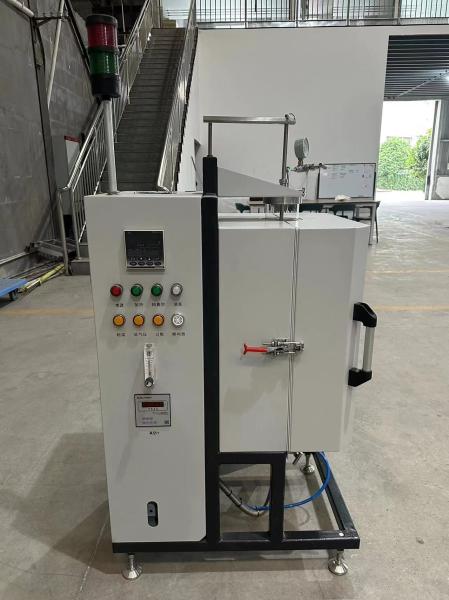

Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Specifications
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Model Number :
VTF1050-05
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Fuel :
Electric
Tube Dimensions :
Φ100(Od)*Φ94(ID)*800mm
Tube Material :
Quarz
Atmosphere :
Vacuum
Transport Package :
Wooden Packaging
Specification :
450*1100*840mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Description
Chitherm Vtf1050-05 Vertical Vacuum Tube Furnace with and 94 ID *800mm Tube Dimensions 50 Sets/Year
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the R&D, design, manufacturing, sales, maintenance and service of industrial heat treatment furnaces and experimental furnaces.

Our products include Bell Furnace, Hot Air Dryer, Box Furnace, Tube Furnace, Vacuum Furnace, Trolley Furnace, Rotary Furnace, Mesh Belt Furnace, Push Plate Furnace, etc. , which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields.

It is suitable for the heat treatment process of ITO target, MLCC / HTCC / LTCC, ceramic filter, magnetic material, CIM / MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials.
2.Technical Specification:
  1. Rated Temperature: 450ºC
  2. Max. Temperature: 500ºC
  3. Tube Dimensions: φ100(OD)mm×φ94(ID)mm×800mm
  4. Temp Zone Length: 500mm
  5. Chamber Insulation Material: Aluminosilicate Ceramic Fiber
  6. Heating Elements: Resistance Coils in Ceramic Fiber Block
  7. Thermcouple: Type K
  8. Temperature Control Point: 1 Point
  9. Temperature Control Precision≤ ±1ºC
  10. Temperature Control Mode: Temperature controller imported from Japan with PID
  11. Vacuum Level: 10Pa
  12. Pump Speed: 100Pa in 2 min
  13. Furnace Surface Temperature ≤ RT+35ºC
  14. Alarms: Over temp, TC failure, low air pressure etc
  15. Total Power: 3kW
  16. Insulation Power: 1.5kW
  17. Furnace Dimensions: 450×1100×840mm(W×H×D)
  18. Weight: about 120kg
Vertical Vacuum CVD Tube Furnace 94 ID 800mm For Laboratory
