Specifications
Brand Name :
Chitherm
Model Number :
Bf580-17
Place of Origin :
China
MOQ :
1
Price :
100000
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Year
Delivery Time :
90 work days
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air and O2
Effective Chamber Dimensions :
1200*600*800mm(D*W*H)
Warranty :
1 Year
Temperature Range :
1700ºC-1750ºC
Transport Package :
Wooden Packaging
Description

Product Description

Product Description


1. Application:
The equipment is widely used in high-temperature sintering processes for advanced ceramics, magnetic materials, electronic ceramic components, and other products.Bf580-17 High Temperature Bell Jar Furnace For Air And O2 Atmosphere

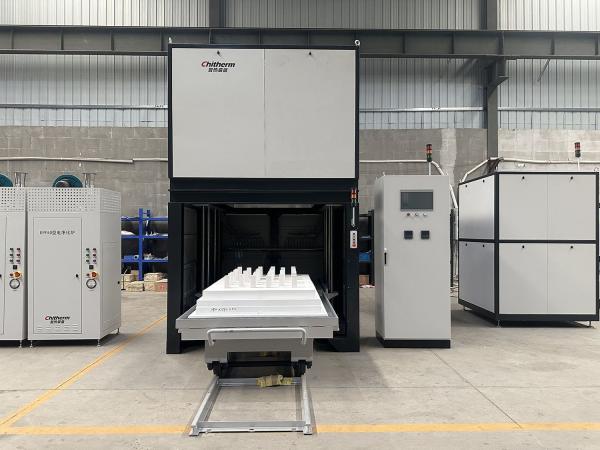

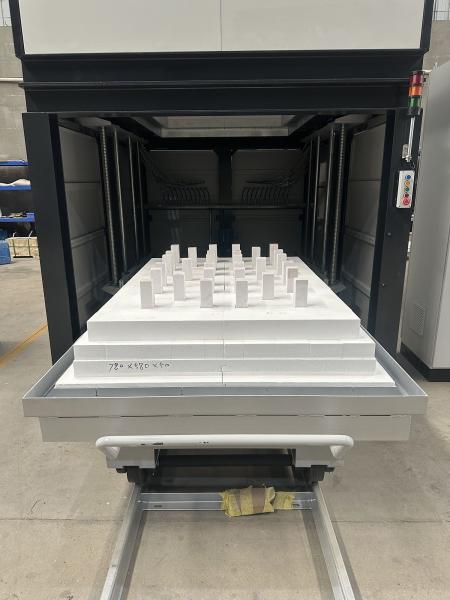

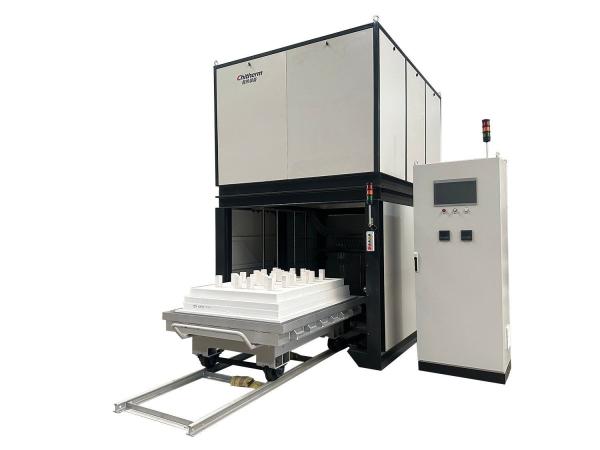

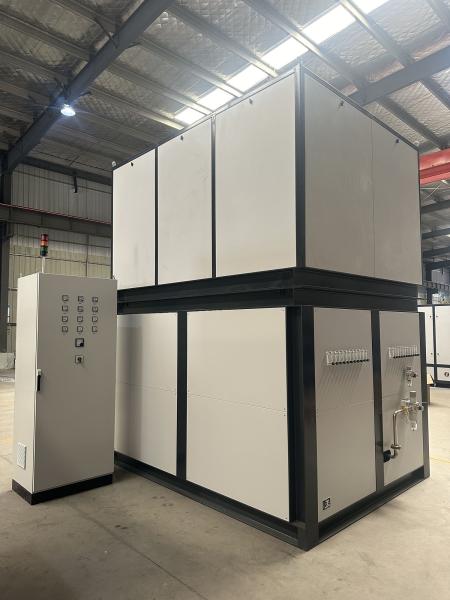

Detailed Photos

Bf580-17 High Temperature Bell Jar Furnace For Air And O2 Atmosphere

Product Parameters

2. Technical Specification:

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Reference Dimensions: 2880×3600×2240, excluding tracks and control cabinet
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Number of Control Points: 2
Temperature Control Instrument: Imported Intelligent Temperature Controller from Japan
Number of Gas Inlet Points: 20 points in total on opposite sides of the furnace body (10 points on each side)
Operating Power Supply: 220/380VAC 50Hz
Maximum Power: 120kW
Equipment Weight: Approximately 8000kg

3. Delivery List
Table 1 Delivery list

Item Note Qty.
Basic Components Furnace
1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Silicon molybdenum rod U-shaped silicon molybdenum heater 1 SET
Power regulator
1 SET
Thermocouple
1 SET
temperature controller Island Electric, Dahua Qianye, Eurofins and other similar brands 1 SET
PLC SIEMENS 1 SET
Touch Screen 15 cun 1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC

4. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 10 -30 m3/h;
  3. Ventilation System: Non contact access user exhaust system, with an exhaust capacity greater than 50 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m2;
  5. Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m2.
