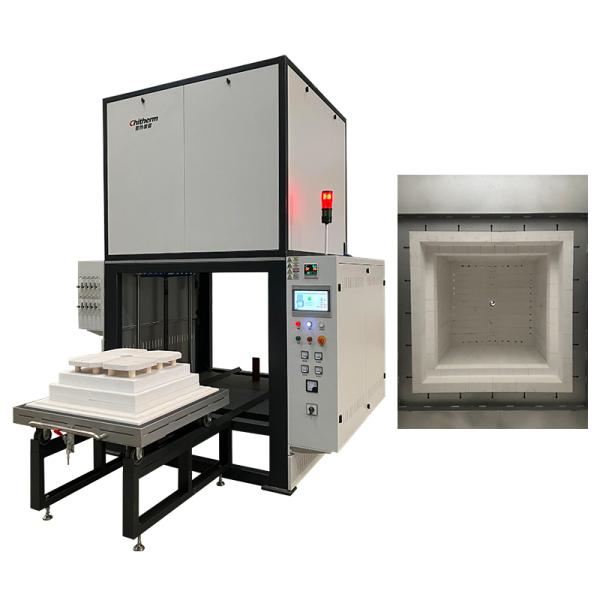

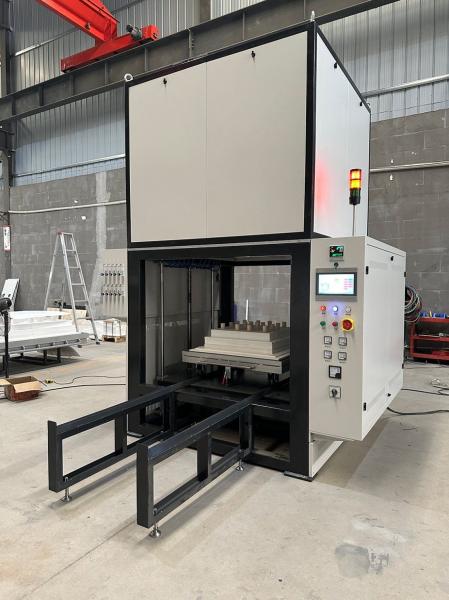

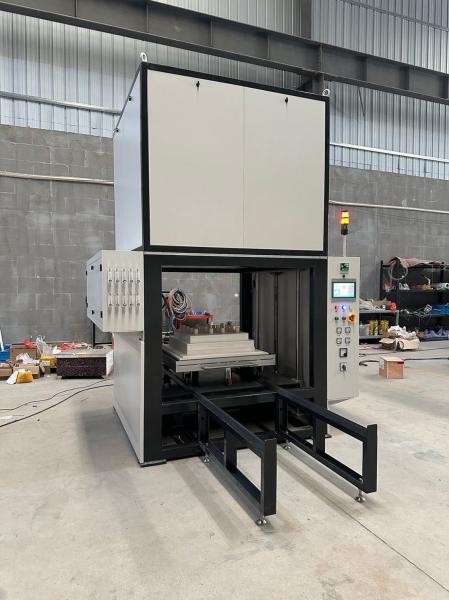

1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials
Specifications
Model NO. :
Bf125-17
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
550*500*550mm(D*W*H)
Transport Package :
Wooden Packaging
Specification :
1740*2780*2505mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
50 Sets/Year
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
1. Application:
This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:

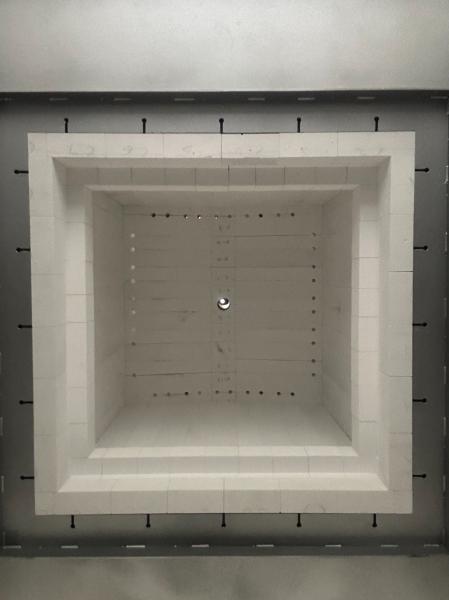

  1. Effective Chamber Size: 500×500×500mm (D×H×W)
  2. Overall Dimensions (Reference): 1740×2780×2505mm
  3. Temperature Range: 1600°C - 1700°C
  4. Heating Elements: U-shaped silicon molybdenum rods (MoSi2)
  5. Heating Zones: 1 zone
  6. Insulation Materials: Alumina products / ceramic fiber materials
  7. Atmosphere: Clean, dry, oil-free compressed air / oxygen
  8. Control Points: 1 point

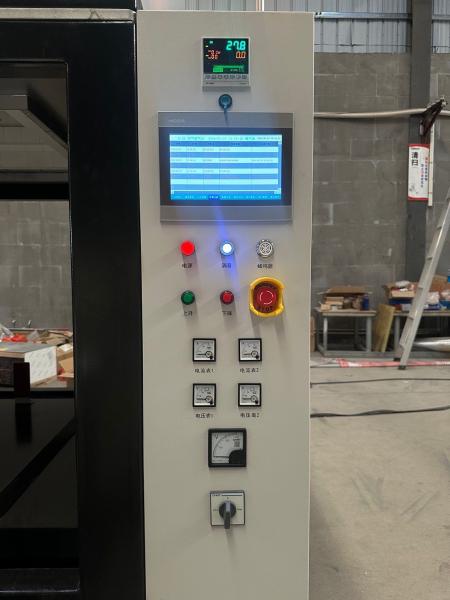

  9. Temperature Controller: Dahua Chino Intelligent PID Regulator
  10. Power Supply: 220/380V AC, 50Hz
  11. Maximum Power: 50kW
  12. Equipment Weight: Approx. 2000kg
  13. External Dimensions: 1740×2780×2505mm(D×W×H) (without control cabinet)
  14. Appearance Color: Light gray.

1 Heating Zone Vertical Elevator Furnace For Magnetic Materials


2. Delivery List
Table 1 Delivery list

Item Note Qty.
Basic Components Furnace
1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Electrical purification furnace
1 SET
Key Components Silicon molybdenum rods U-shaped Model MK1800 (Diameter Range: 6-12mm) 1 SET
Touchscreen
1 SET
Thermocouple R-Type 1 SET
Temperature Control Module
1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC
1 Heating Zone Vertical Elevator Furnace For Magnetic Materials

3. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;

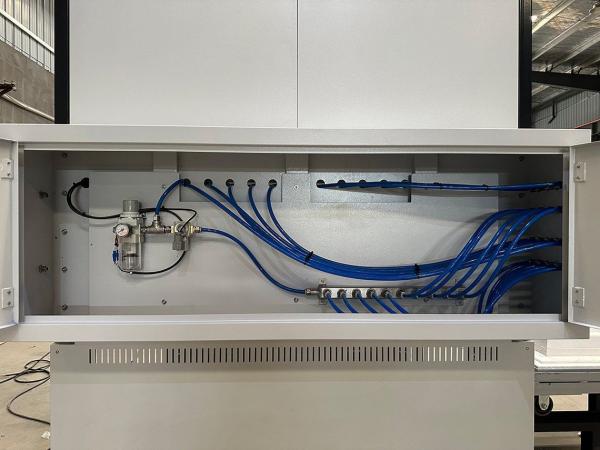

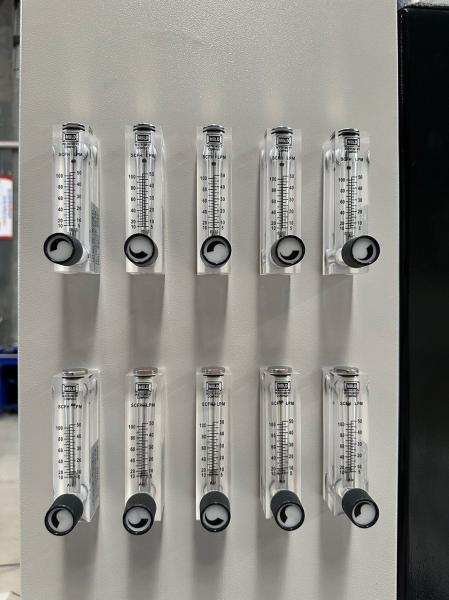

  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site:3800mm×2650mm×3500mm(D×W×H), with an installation area greater than 12m2.1 Heating Zone Vertical Elevator Furnace For Magnetic Materials

    Company Profile

    Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
