Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research, development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its comprehensive product portfolio includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces.

These furnaces find extensive application across diverse fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. They are suitable for the thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as for various other new material processes like pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, and curing.

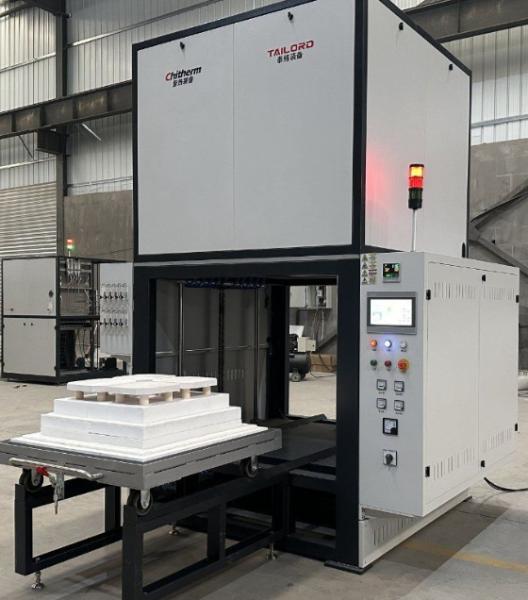

Technical Specification:

The rated temperature is 1650°C with a maximum temperature of 1700°C. Effective dimensions measure 550mm×500mm×550mm (D×W×H), employing a U-shaped silicon molybdenum heating method with B-Type thermocouple. Temperature control is managed at 1 point with ±1ºC set accuracy (during flat temperature insulation). Control utilizes a PID module imported from Japan, featuring heat-up rates of ≤5ºC/min from 400-1000°C and ≤2ºC/min from 1000-1500°C.

Temperature uniformity achieves ±5ºC (in an empty furnace insulation test at 1500°C for 2 hours), with program tracking accuracy of ±2ºC (above 600°C). The maximum lifting trip extends 800mm, while exhaust is handled by 1 chimney installed at the top. Maximum heating power reaches 50kW, with insulation power consumption ≤25kW. External dimensions are 1740×2780×2505mm (D×W×H excluding the control cabinet), finished in light gray.

Equipment operates under normal conditions with environmental parameters of temperature 0-40ºC, humidity ≤80% RH, absence of corrosive gases, and no strong airflow disturbances; atmosphere requires dry, clean, oil-free compressed air at 0.2-0.4MPa working pressure with 10-30 m³/h gas consumption. Ventilation requires non-contact connection to a user pumping system exceeding 35 m³/h capacity.

Ground must be horizontal, vibration-free, and support >600 Kg/m² loads. Power conditions (TBD) demand >70kVA capacity, 3-phases 5-lines configuration at 220/380V voltage and 50Hz frequency, with fire lines (yellow, green, red), zero line (blue), and ground line (yellow-green). Installation requires a 3800mm×2650mm×3500mm (D×W×H) space exceeding 12m² area. Regarding product offerings, Chitherm provides bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

For pre-sales services, timely consultation assists customers in selecting suitable products along with highly customizable solutions. Core strengths include Chitherm's position as an integrated R&D-manufacturing-sales high-tech enterprise with patented technologies and core resources enabling superior solution delivery.
