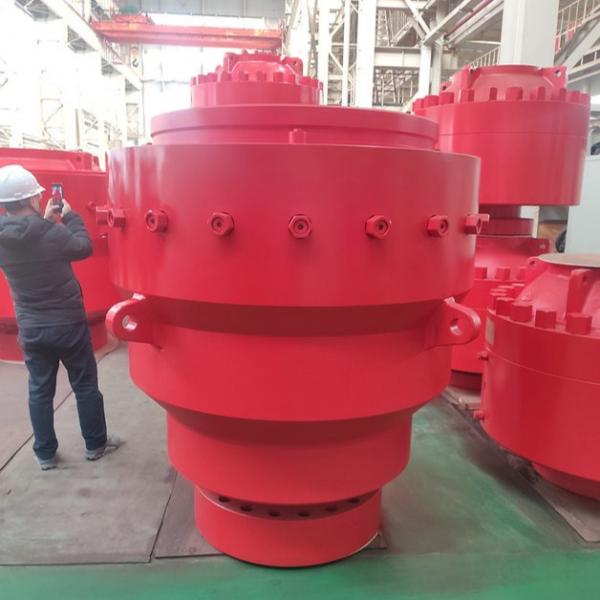

Well Control Hydril Annular Bop 5000 Psi Bop Blowout Preventer 9″
Well Control Hydril Annular Bop 5000 Psi Bop Blowout Preventer 9″
Specifications
Brand Name :
Hebei Pantu
Model Number :
9″
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Hydril Annular Bop
Size :
9″
Pressure :
5000 Psi
Bore (mm/in.) :
228.6
Hydrostatic pressure testing pressure (MPa/psi) :
70 / 10,000
Hydraulic-controlled rated working pressure (MPa/psi) :
21/3,000
Description

Well Control Hydril Blowout Preventer 9″ 5000 Psi

There are two structure models of annular Blowout Preventer BOP, model A: tapered rubber; model D: spherical rubber. The upper housing and the body have two connection forms connection by bolts and a connection by claw chuck. Annular Blowout Preventer with spherical rubber is composed of five parts upper housing, body, piston, spherical rubber, and anti-dust ring. Annular Blowout Preventer with tapered rubber is composed of seven parts upper housing, wear plate, body, piston, tapered rubber, anti-dust ring, and supporting cylinder.

hydril annular bop specifications

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)

Item Specification for Annular BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi
Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4
Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000
Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1,218～1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) ≤10 .5/1,500
Open Max. oil volume (L) 15 15 22.8 33 39 56 69 69 110 181
Close Max. oil volume (L) 21 21 34 42 50 72 94 94 173 241
Lift weight by two lifting rings (t) 16 16 16 25 25 25 32 32 32 64
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃～121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
