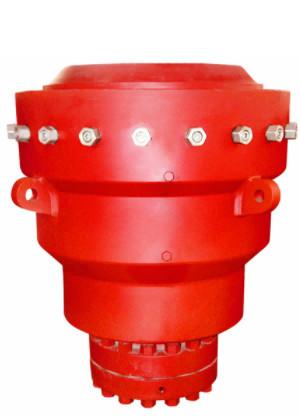

13 5/8-5000psi Hydril Annular Bop Casted API 16A
13 5/8-5000psi Hydril Annular Bop Casted API 16A
Specifications
Brand Name :
Rongsheng
Model Number :
13 5/8"-5000psi
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
ZG25CrNiMo :
Blank
Name :
Hydril Annular Bop
Size :
13 5/8"
Pressure :
5000psi
Standard :
API 16A
Recommended hydraulic working pressure seal pipe (MPa/psi) :
1,218～1,522psi
Description

13 5/8"-5000psi Hydril Annular Bop Casted API 16A Shaffer Annular Bop

The annular preventer (also called bag type, spherical or universal preventer) is the most versatile piece of equipment on the BOP stack since it can close around the casing, drill pipe, drill collars, wireline, and even close an open hole. The rubber packing elements of the annular preventers, which allow this flexibility, are also subject to wear and abuse. Treated properly, the packing unit of the annular preventer has a long, reliable life span, but it can be destroyed in a very short time or very few closing cycles by improper use. Here, we will cover all annular blowout preventer BOP types as Cameron, Hydril & Shaffer BOP types that are used in drilling rigs.

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in below list)

ItemSpecification for Annular BOP
Size and model7 1/16″-3000psi7 1/16″-5000psi9″-3000psi9″-5000psi11″-3000psi11″-5000psi13 5/8″-3000psi13 5/8″-5000psi20 3/4″-3000psi21 1/4″-5000psi
通径mm/in Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4

Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000

Hydraulic controlled rated working pressure (MPa/psi)21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi)1,218～1,522psi
Max. working pressure seal well without pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

Recommended hydraulic working pressure seal well without pipe in (MPa/psi)≤10 .5/1,500
Open Max. oil volume (L)151522.83339566969110181
Close Max. oil volume (L)2121344250729494173241
Lift weight by two lifting ring (t)16161625252532323264
Outlet of hydraulic oilNPT 1”
Temperature grade of metalT-20/250(-29℃～121℃)
Temperature grade of non-metalBAB (-18℃~66℃~93℃)
Medium material contacting with well liquidPer to NACE MR-01-75, meet API 16A 4th Edition Standard
