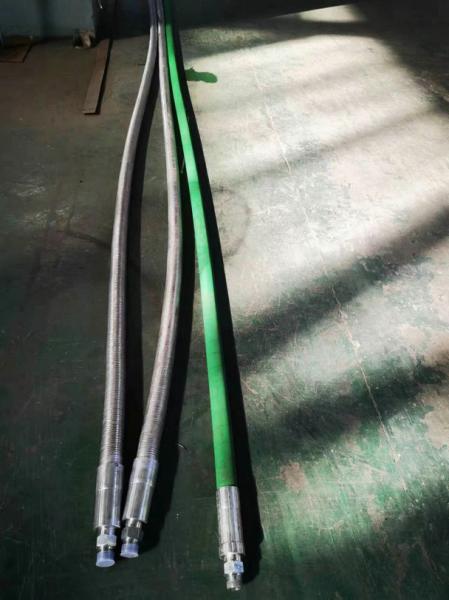

API 16D Bop Drilling Hose Flexible Flame Shield Hydraulic Hose
API 16D Bop Drilling Hose Flexible Flame Shield Hydraulic Hose
Specifications
Brand Name :
Hebi Pantu
Model Number :
1" 5000psi
Certification :
API 16D
Place of Origin :
China
MOQ :
1 set 10m length
Price :
USD 450 per set
Payment Terms :
T/T
Supply Ability :
50 sets per 1 month
Delivery Time :
7 work days
Packaging Details :
Iron Case
Name :
Bop Control Line
Type :
Braided stainless steel wire jacket type
Thread :
NPT LP
Inner Dia :
19-38mm
Applicable Standard :
API Spec 16D
Other Name :
Shield Hydraulic Hose
Description

API 16D Bop Drilling Hose Flexible Flame Shield Hydraulic Hose

Product Overview

  1. The API 16D BOP Drilling Hose is built for high-pressure hydraulic control systems, offering exceptional flame resistance and flexibility. Equipped with a flame shield protective layer, the hose maintains reliable performance during fire exposure, ensuring safe operation of blowout preventer equipment. Its robust reinforcement and flexible structure allow stable hydraulic transmission while resisting harsh drilling environments, including heat, pressure, and chemical contact. Designed in compliance with API 16D standards, this hose is a critical safety component for oilfield drilling rigs where fire protection and hydraulic reliability are essential.

Key Features

1. High pressure resistance (up to [insert psi rating])
2. Flame retardant and fire-resistant performance
3. Flexible structure with multi-layer reinforcement
4. Resistant to oil, heat, and abrasion
5. Suitable for both onshore and offshore drilling rigs

Technical Specifications

Nominal Bore (in) Outer Diameter (in) Working Pressure (psi) Test Pressure (psi) Minimum Burst Pressure (psi) Minimum Bending Radius (in) End Connection Operating Time (Normal / Emergency)
3/4" (19 mm) 1.73 – 1.97 5,000 7,500 15,000 11 NPT / LP 5 min / 25 min
7/8" (22 mm) 1.85 – 2.09 5,000 7,500 15,000 12.6 NPT / LP 5 min / 25 min
1" (25 mm) 1.97 – 2.20 5,000 7,500 15,000 14.2 NPT / LP 5 min / 25 min
1 1/4" (31.5 mm) 2.20 – 2.44 5,000 7,500 15,000 18.1 NPT / LP 5 min / 25 min
1 1/2" (38 mm) 2.48 – 2.72 5,000 7,500 15,000 22 NPT / LP 5 min / 25 min

Applications

  1. Hydraulic control for BOP stacks
  2. Drilling rigs (onshore / offshore)
  3. Emergency well control systems
  4. High-risk oilfield environments requiring flame resistance

Our Advantages

  1. Proven experience in supplying BOP control hoses for major drilling contractors

  2. Customizable hose length, pressure rating, and connections

  3. Global logistics support and fast delivery

  4. API / ISO certified production facilities

5. Good after-sale service is offered, please get back if you got any questions.
