11 API Alloy Steel Single Ram Bop For Oilfield Drilling
11 API Alloy Steel Single Ram Bop For Oilfield Drilling
Specifications
Brand Name :
Rongsheng
Model Number :
11"-5000psi
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
USD 25000 set
Payment Terms :
T/T
Supply Ability :
5 sets per 3 months
Delivery Time :
7 work days
Packaging Details :
Iron Case
Type :
Single Ram Bop
mm/in Bore (mm/in.) :
11"
Rated working pressure (MPa/psi) :
3,000 psi
Hydrostatic pressure testing pressure (MPa/psi) :
4,500psi
Hydraulic controlled rated working pressure (MPa/psi) :
3,000psi
Recommended hydraulic working pressure seal pipe (MPa/psi) :
1218~1522psi
Description

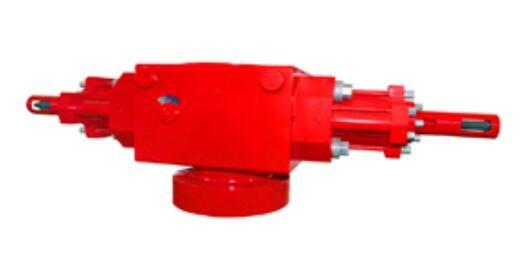

13 5/8 Inch 5000psi Single Ram Bop For Oilfield Drilling

Single Ram Bop Feature

1. Body and side door are made of alloy steel;
2.Use seal rings assembly to improve sealing of side door;
3. Use floating type ram. Front ram rubber is separated from top ram rubber, making it more reliable in sealing and easier to change;
4. Use buried oil way inside body. Loading hinge is separated from hydraulic hinge;

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)

Item Specification for Ram BOP
Size and model 7 1/16″-3000psi 7 1/16″-5000psi 7 1/16″-100000psi 9″-3000psi 9″-5000psi 11″-3000psi 11″-5000psi 11″-10000psi 13 5/8″-3000psi 13 5/8″-5000psi 13 5/8″-10000psi 20 3/4″-3000psi 21 1/4″-5000psi 26 3/4”-3000psi
通径mm/in Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4

679.4

26 3/4
Rated working pressure (MPa/psi)

21

3,000

35

5,000

70

10,000

21

3,000

35

5,000

21

3,000

35

5,000

70

10,000

21

3,000

35

5,000

70

10,000

21

3,000

35

5,000

21

3,000
Hydrostatic pressure testing pressure (MPa/psi)

31.5

4,500

52.5

7,500

105

15,000

31.5

4,500

52.5

7,500

31.5

4,500

52.5

7,500

105

15,000

31.5

4,500

52.5

7,500

105

15,000

31.5

4,500

70

10,000

31.5

4,500
Hydraulic controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1218~1522psi
Volume for open one set rams 36 L
Volume for close one set rams 40 L
Outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃～121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contacting with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
