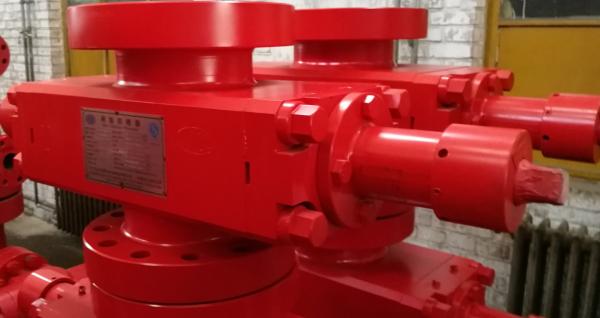

10000psi Drilling Single Ram Bop Shaffer Type Oil Rig Blowout Preventer
10000psi Drilling Single Ram Bop Shaffer Type Oil Rig Blowout Preventer
Specifications
Brand Name :
Shenkai
Model Number :
13 5/8"-10000psi
Certification :
API 16A
Place of Origin :
China
MOQ :
1 set
Price :
1000USD-10000USD
Payment Terms :
L/C, T/T
Supply Ability :
10 SET per month
Delivery Time :
7 days
Packaging Details :
Iron case
Type :
Single Ram Bop
Working pressure :
10000psi
Material :
ZG25CrNiMo Casted
Metallic temperature :
T-20/250
Non-metallic temperature :
BAB (-18℃-121℃）
Other Name :
Oil Rig Blowout Preventer
H2S :
H2S trim, meet NACE 0175 standard
API :
API 16A
Description

Drilling Single Ram Bop Shaffer Type Oil Rig Blowout Preventer

The ram BOP is designed to seal the space between the casing and wellhead. When closed, it allows for operations like circulating drilling fluid, releasing pressure, and killing the well through the spool located beneath the BOP or pipelines connected to the side outlet of the BOP body. In case of an emergency, the ram BOP is capable of shearing the drilling tool in the hole to seal it off. The variable bore rams of the ram BOP can seal the annular space between the casing and pipes of different sizes within a specific range.

Technical parameter of Single Ram Bop

Item Single Ram BOP with booster Double Ram BOP with booster
Size FZ35-70 2FZ35-70
Top connection type Studded Flanged Studded Flanged
Bottom connection type Flanged Flanged Flanged Flanged
Weight (Kg)

6898

(14,320 lb)

7433

12122

(26,555 lb)

12657

(27,800 lb)
Height (mm) 960 1250 1491 1775
Bore 346.1mm (13 5/8″)
Hydrostatic pressure testing pressure 105MPa (15,000psi)
Rated working pressure 70MPa (10,000psi)
Hydraulic control system strength working pressure 31.5MPa(4,500psi)
Hydraulic control system rated working pressure 21MPa(3,000psi)
Recommended hydraulic controlled operating pressure 8.4～10.5MPa(1,200～1,500psi)
Hydraulic Cylinder Bore 342.9mm(13 1/2″)
Booster Bore 250mm(9 7/8″)
Open one set of ram oil volume 29.5 L
Close one set of ram oil volume 33.5 L
Close one set of ram oil volume (Including boosters) 54L
Connection joint of hose NPT 1
Size of outlet 4 1/16″-10,000psi according to the contract
Temperature grade T20(-29～121℃) according to the contract
Close Ratio λ 1:7.4
Close Ratio λ (with Booster) 1:11.4

Note:

BOP design and manufacture are all meet API Spec 16A.

BOP provided can be used for H2S service and also meet NACE MR-01-75.

List 5 Ram size for fitting

Ram size for fitting The max pipe ram is 10 3/4″,5″～5 1/2″VBR ,2 7/8″～5″VBR,3 1/2″～5 ″VBR,5″～7″VBR,3 1/2″double hole, 2 7/8″double hole,2 3/8″double hole,shear ram
