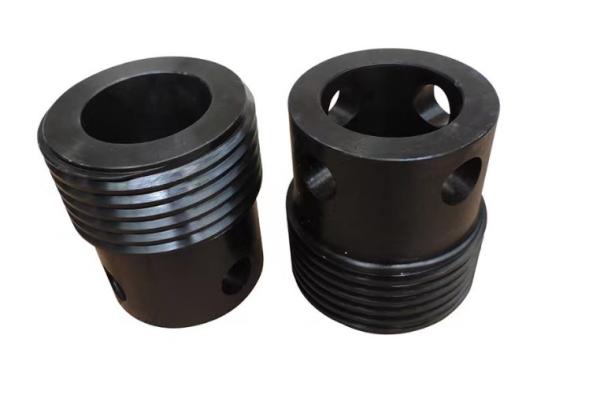

Cylinder Valve Cover For BOMCO And RS F800 Drilling Mud Pump
Cylinder Valve Cover For BOMCO And RS F800 Drilling Mud Pump
Specifications
Brand Name :
BOMCO
Model Number :
F800/F1600
Certification :
API 7K
Place of Origin :
China
MOQ :
10 set
Price :
30-1000usd
Payment Terms :
L/C, T/T
Supply Ability :
1000 SET per month
Delivery Time :
7 days
Packaging Details :
wooden case
Brand :
BOMCO
Certificate :
API 7K
Used :
used for pump hydraulic end assembly
Description

RS-F1000/800 Pump Hydraulic End Assembly List:

S/N Code Name QTY
1 RS11306A.05.009 Valve cover 1
2 RS11306.05.008 Valve cover seal ring 1
3 RS11306.05.010 Valve rod guide (upper) 1
4 RS11306.05.012 Baffle 1
5 BG.05.001 Bolt M10X20 4
6 RS11306.05.11.00 Spring guide 1
7 RS11306.05.013 Valve spring 2
8 API #6 valve assembly 2
9 API #6 valve assembly 2
10 RS11306A.05.01.0011 Cylinder 1
11 BG.05.003 Double-screw bolt M33X2-M33X3X256 4
12 NG.05.002 Nut M33X3 4
13 GB/T 3452.1 O-ring φ97.5X3.55 1
14 RS11306.05.002 Cylinder head flange 1
15 BG.05.004 Double-screw bolt M36X2-M36X3X218 10
16 RS11306A.05.18.00 Cylinder liner 1
17 NG.05.003 Nut M36X3 10
18 RS11306.05.004 Cylinder liner seal ring 2
19 RS11306.05.006 Top cylinder device 1
20 RS11306.05.005 Cylinder head plug 1
21 RS11306.05.003 Cylinder head 1
22 RS11306.05.025 Retaining clip 1
23 RS11306.05.26.001 Valve rod guide (lower guide body) 1
24 RS11306.05.26.002 Valve rod guide (lower) inner sleeve 1
25 RS11306A.05.15.00 Locknut M39X3 1
26 RS-HS.“X” Piston assembly 1
27 RS11305.01.36.1.01 Seal ring 1
28 RS11306A.05.017 Piston rod (F1000) 1
RS11308A.05.008 Piston rod (F800) 1
29 RS11306A.05.20.0011 Clamp (F1000) 1
RS11308A.05.02.0011 Clamp (F800) 1
30 GB/T 93 Spring washer 22 (F1000) 2
Spring washer 20(F800)
31 GB/T 5782 Bolt M22X100 2
Bolt M20X90
32 RS11306.05.022 Cylinder liner end cover 1
33 NG.05.001 Nut M39X3 8
34 BG.05.002 Double-screw bolt M39X2-M39X3X165 8
