Valve Assembly Used For F800 / F1000 / F1600 Oil Drilling Mud Pump
Valve Assembly Used For F800 / F1000 / F1600 Oil Drilling Mud Pump
Specifications
Brand Name :
Hebei Pantu
Model Number :
F800 valve assembly
Certification :
API 7K
Place of Origin :
China
MOQ :
5 set
Price :
USD 200-800
Supply Ability :
100 SET per month
Delivery Time :
7 days
Packaging Details :
wooden case
Specification :
F800/F1000/F1600 mud pump
Description

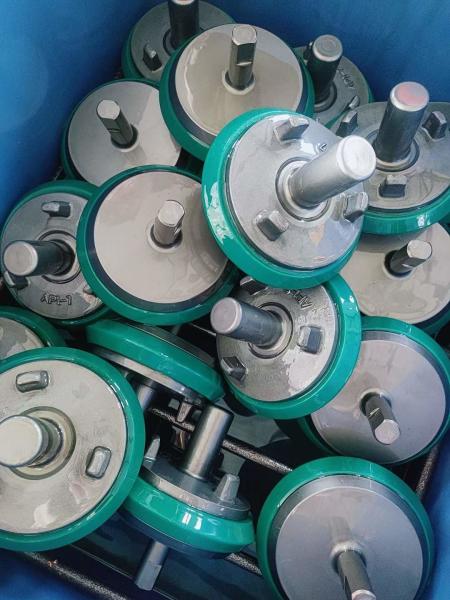

Valve Assembly Used For F800 / F1000 / F1600 Oil Drilling Mud Pump

Product Overview

  1. The valve assembly is an essential expendable for triplex mud pumps, designed for use in F800, F1000, and F1600 models. It plays a critical role in controlling the flow of drilling fluid, ensuring smooth circulation and maintaining pressure stability throughout drilling operations.
  2. Constructed with a durable valve seat, valve insert, and spring, the assembly is engineered to handle high-impact loads and repeated pressure cycles common in oilfield environments. Its precise fit and robust design help extend pump service life, minimize downtime, and support efficient drilling performance.

Supply Brand

3.5'', 4'', 4.5'', 5'', 5.25'', 5.75'', 6'', 6.25'', 7'', 7.25'', 7.5'', 8'', 8.5''


Brand Adaptable model
Bomco F-500 F-800 F-1000 F-1300 F-1600 F-1600HL 　
Brewster B-1000-T B-1100-T B-1300-T B-1600-T 　 　 　
HONGHUA HHF-500 HHF-800 HHF-1000 HHF-1300 HHF-1600 HHF-1600HL HHF-2200HL
Emsco F-350 F-500 F-650 F-800 F-1000 FD-1000 FB-1300
FB-1600 FA-1600 FA-1300 FC-1600 FD-1600 FC-2200D-300/500 D-175
D-225 D-375 D-500 D-550 DA-500 DB-500 D-700
DA-70 DB-700 DC-700 DA-850 DB-850 DC-850 D-1000
DB-1000 DC-1000 D-1000-A D-1350 D-1650 　 　
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-220 JWS-165-L
JWS-340 JWS-400 C-250 C-350 K-380 K-500-A G-700
K-700 N-1000 N-1300 N-1600 　 　 　
Oilwell 350-PT A-650P-T A-850-PT A-1100-PT A-1400-PT A-1700-PT HD-1400-PT
HD-1700-PT 612-P 212-P 214-P 218-P 700-P 816-P
818-P 1000-P 　 　 　 　 　
Ideco T-500 T-800 T-1000 T-1300 T-1600 MM-450 MM-500-F
MM-600-A MM-700-F MM-1000 　 　 　 　
Gardner Denver PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 FK-FXK FY-FXD
FD-FXX FG-GXG FG-FXG KG-KXG FQ-FXQ FF-FXF FF-FXP
TGE TGF TGH PAH-275 　 　 　
LS National Mud Pumps 3NB-500C 3NB1000C 3NB1300C 3NB1600 　 　 　
Wirth Mud Pump TPK1000 TPK1600 TPK2000 　 　 　 　
Russian Pumps UNBT-950 UNB-600 8T-650 UNBT650 NBT600 UNB1180 UNB1180L
WEATHERFORD/Ellis Williams MP-5 MP-8 MP-10 MP-13 MP-16 E-447 E-2200
W446 W440 　 　 　 　 　
Drillmec 7TS-600 8T-800 9T1000 10T-1300 12T1600 14T-2200 10D2C
8D1S 　 　 　 　 　 　
Upetrom 3PN-1000 3PN-1600 3PN-1300 3PN-2000 　 　 　
OPI 350-D 350-GD 500-DC 700-HDL 1000-HDL 　 　
Lewco/Ewco W-250-C WH440 W446 W600 WH600 WH770 W1100
WH1312 W1612 W1712 W2000 W2214 W2215 　
American Block K800 K1000 K1300 K1600 K2200 　 　
Loadmaster LSF-500 LSF-800 LSF-1000 LSF-1300 LSF-1600 　 　
Soilmec 7T500 7T508 8T650 　 　 　 　
Dragon 440HP 660HP 　 　 　 　 　
GASO/Wheatly 1550 1560 1563 1654 1742 1753 1874
1849 1860 2652 　 　 　 　
Great American GA-550 GA-750 　 　 　 　 　
TFI BH-800 F-500 F-800 F-1000 F-1300 F-1600 　
TSC WF-400 WF-450 WF-700 WFU-750 WF-1000 WF-1300 WF-1600
WF-2000 WF-2200 　 　 　 　 　


Other Available Mud Pump Spare Parts

Product Name General Description API Standard Common Sizes/Models Compatible Mud Pump Models
Mud Pump Liner Bi-metal or ceramic liner for mud circulation API 7K 4”–7” bore sizes F-series, W-series, 3NB-series, QDP-series, T-series, Emsco, National, Oilwell, Bomco etc.
Piston & Piston Rod Rubber bonded piston with high-strength piston rod API 7K 4”–7” sizes F, W, 3NB, QDP, T-series and interchangeable with major OEM brands
Valve & Seat Interchangeable valve assemblies for fluid end API 7K #6, #7, #8 Compatible with all API standard mud pumps
Fluid End Module Forged alloy steel module for fluid end API 7K F, W, 3NB, QDP, T-series Widely used in oilfield drilling rigs
Crosshead & Extension Rod Precision machined for stable power transmission N/A Standard sizes F, W, 3NB, QDP, T-series
Cylinder Head & Cover Heavy-duty head & valve cover for liner protection API 7K Standard API sizes Compatible with all API mud pumps
Stuffing Box & Packing Sealing components to reduce leakage API 7K Standard packing sets F, W, 3NB, QDP, T-series
Wear Plate & Guide Shoe Protects crosshead and guides rod alignment N/A Standard F, W, 3NB, QDP, T-series
Crankshaft & Bearings Power end parts for reliable torque transmission N/A Standard F/W/3NB parts F, W, 3NB, QDP, T-series
Complete Fluid End Assy Fully dressed fluid end assembly API 7K F, W, 3NB, QDP, T-series Interchangeable with OEM brands
