ODM Automation Valve Stem Tip End Grinding Machine High Precision
ODM Automation Valve Stem Tip End Grinding Machine High Precision
Specifications
Brand Name :
M-TECH
Certification :
CE.Omron
Place of Origin :
China
MOQ :
1 set
Price :
USD28000-USD35000/set
Supply Ability :
200 sets per year
Delivery Time :
90 work days
Packaging Details :
Plywood case
Power :
5kW
Production Capacity :
1000 pieces/hour
Application :
Engine Valve Manufacturing
Type :
Automatic
Warranty :
1 year
Power Source :
Electric
Material :
Metal
Weight :
500kg
Voltage :
220V
Dimension :
1200mm x 800mm x 1500mm
Frequency :
50Hz
Description

Tip-end Grinding Machine for Engine Valve Manufacturing

Tip-end Grinding Machine is a device used for processing valves. Through a Tip-end Grinding Machine, operators can precisely grind the valve head to ensure its surface smoothness and accuracy meet requirements.Tip-end Grinding Machines are typically equipped with high-precision grinding heads and control systems, enabling precise grinding without damaging the valve material. These machines play a crucial role in the automotive industry by enhancing valve sealing performance and durability, supporting the normal operation and performance improvement of engines.

Performance of Tip-end Grinding Machine for Engine Vlave manufacturing

  • Max total cycle time:4.5 sec.
  • OEE level 90%
  • Capability - Cm/Cmk / Pp/Ppk >= 1,67
  • head diameter within range from 20 mm to 60 mm,
  • overall length within range from 80 mm to 180 mm,
  • stem diameter within range from 5 mm to 10 mm
  • stem length: +/- 0.025mm,
  • stem tip runout after cutting: max 0.02 mm,
  • stem tip roughness after cutting: max 2 Rz
  • Machine should be capable to grind stem engine valves made from the following materials (most important and common ones): EMS1, EMS57 with parameters included in ISO 683-15 and other standards

Our service

1. Automation solution design and consulting
2. Automation equipment supply and integration
3. Software development and system integration
4. After-sales support and maintenance
5. Training and knowledge transfer

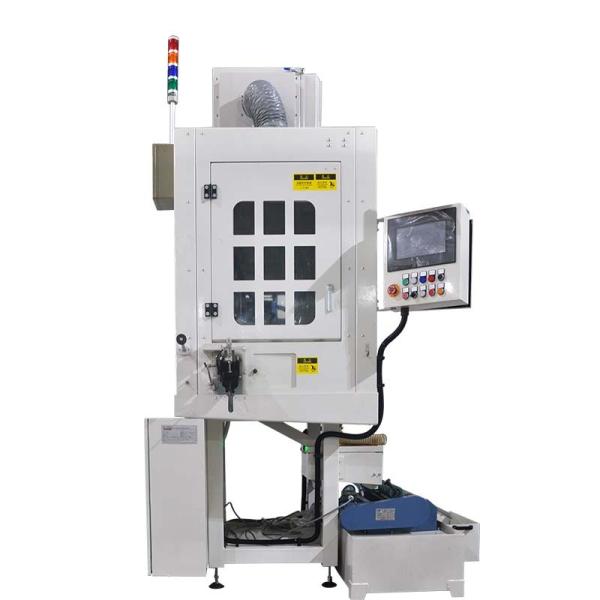

Feature picture of Tip-end Grinding Machine

ODM Automation Valve Stem Tip End Grinding Machine High Precision
