Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Singlemode Direct Buried Copper Fiber Composite Cable 4 6 8 12 Core Oplc Hybrid Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Model Number :
Photoelectric composite cable
Type :
Photoelectric composite cable
Number of Conductors :
2
Product name :
Photoelectric composite cable
Description

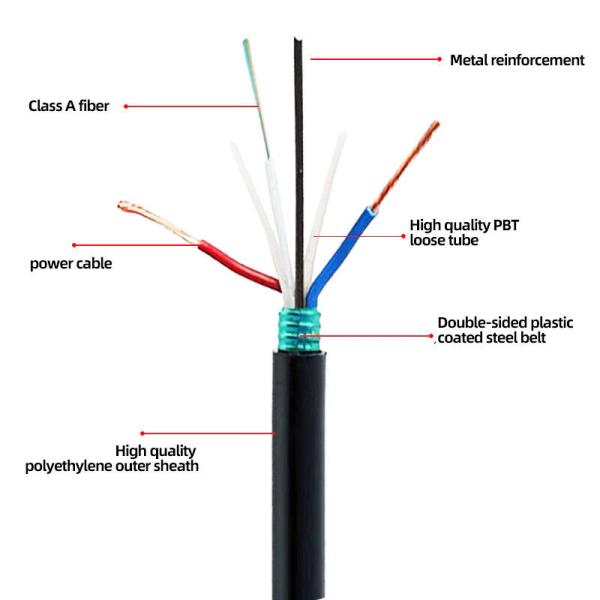

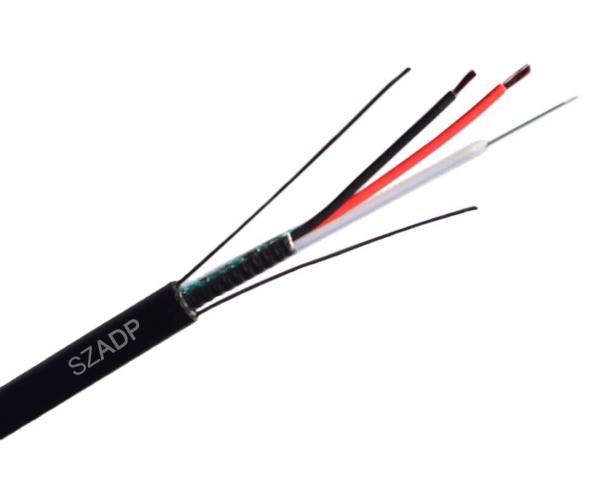

Photoelectric composite optical fibre cable
1-24 fiber + 2*1.5-6.0RV
Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.
Applicaiton:
1 Used for outdoor distribution box to the building's pipeline;overhead; buried.
2 Used in optical communication equipment room, light distribution frame light connection and optical
3 instruments, equipment connect to the light.
4 Used for tail fiber and jump in line.
5 Used for buildings surrounding into cable.
Feature
· Has good flexibility and mechanical properties.
· Photoelectric integration, fully saving pipeline resources.
· The cable section and the cable section maintain a relatively independent structure for easy introduction, extraction and
connection during installation.Consolidate multiple power lines, telephone lines, TV lines, network lines, monitoring lines, data
lines, etcsaving costs.
· Large operating temperature range.
· Large construction temperature range.
· The diameter of the cable and the bending radius are small, and the colleague-compatible optical signal transmission and power
transmission can be freely installed in a small space
Fiber Type
Attenuation
Overfilled launch Bandwidth
Effective Modal Bandwidth
10GB/S Ethernet link length
Min Bending Radius
Conditions
1310/1550nm
850/1300nm
850/1300nm
850nm
850nm
Unit
dB/km
dB/km
MHZ.km
MHZ.km
m
mm
G652D
0.36/0.22
16
G657A1
0.36/0.22
10
G657A2
0.36/0.22
7.5
50/125
3.0/1.0
≥500/500
30
62.2/125
3.0/1.0
≥200/500
30
OM3
3.0/1.0
≥1500/500
≥2000
≥300
30
OM4
3.0/1.0
≥3500/500
≥4700
≥550
30
B1-OM3
3.0/1.0
≥1500/500
≥2000
≥300
7.5
B1-OM4
3.0/1.0
≥3500/500
≥4700
≥550
7.5
