Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Model Number :
GDXTW
Fiber Type :
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Application :
Telecom Comunication
Jacket :
PE Jacket
Strength member :
FRP CENTER Strength Member
Package :
Wooden Drum
Name :
Composite Optical Fiber Cable
Description

Photoelectric Composite Hybrid Optical Fiber Cable GYXTW RVV Armoured 12 Cores 1mm*2 1.5mm*2 with Power Cable

Products Description
OPLC Fiber Optical Cable 1 – 216 Cores G.652D Outdoor For Telecommunication
• Photoelectric integration, solve the problem of equipment power and signal transmission, provide centralized monitoring and
maintenance of equipment power
• Improve power manageability and reduce power supply coordination and maintenance
• Reduce purchase costs and save construction costs
•The precision control of the fiber length ensures that the fiber has good tensile performance and temperature characteristics
•It is mainly used in DC remote power supply system of distributed base stations to connect BBU and RRU
•Suitable for direct burial

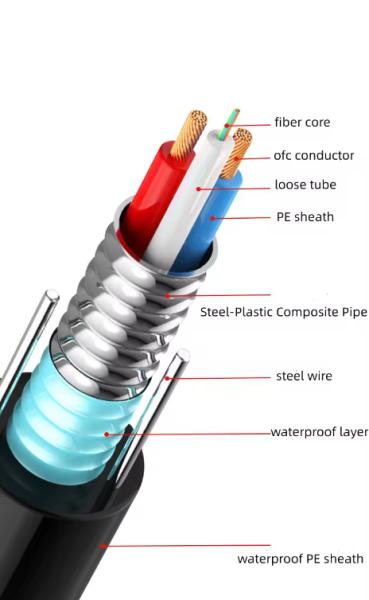

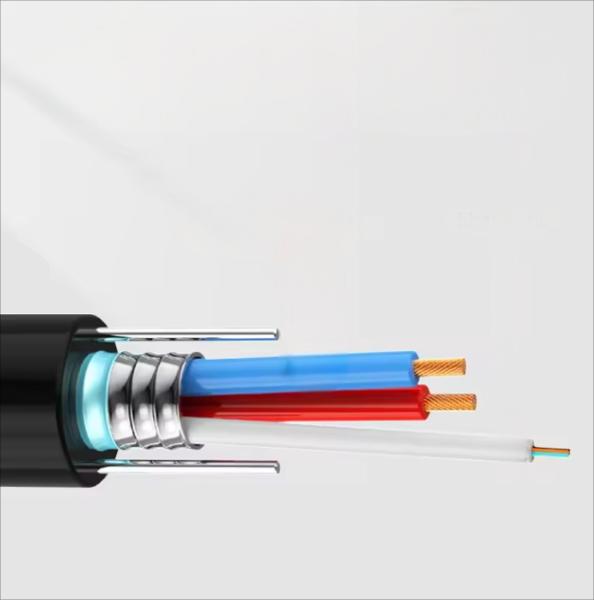

Cable structure
1. PE outer jacket
2. steel wires
3. COOPER WIRE
4. FIBER JELLY
5. Loose tube
6. Fibers
7. steel tap
Details Images
Installation Instructions
Product Paramenters
item
cooper
RVV2*2.5MM
RVV-4*2.5mm
RVV-6*2.5mm
RVV-8*2.5mm
weight
347
382
502
628
fiber count
structure
fibers per tube
loose tube diameter
CONDUCTOR CORSS SECTIONAL AREA
cable diameter
cable weight
2-18
1
2-18
1.8±0.1
1
9.4
92
20-24
1
20-24
1.9±0.1
1
10.4
106
2-18
1
2-18
1.8±0.1
1.5
10.8
119
20-24
1
20-24
1.8±0.1
1.5
11.3
127
Item
Unit
Specification
Fier Tyoe
G652D
G652D
Mode filed Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.8
Cladding diameter
μm
125.0±0.1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
245±7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
μm
≤1260
Attenuation Coefficient
1310nm
db/km
≤0.36
1550nm
db/km
≤0.22
Proof stress level
kpsi
≥100
Note: Other parameters meet standard ITU-T G.652
