48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-5000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Fiber Count :
2-48 Fibers
Fiber :
G652D, G657A1, G657A2
Package :
Iron-wooden Reel
Layer :
AS, AA
Cable Diameter :
40-80mm
Optical Unit :
SST,PBT
Applications :
Telecommunication, Aerial
Operating Temperature :
-40°C To + 70°C
Highlight :
opgw wire, fiber optic opgw cable
Name :
OPGW Cable
Description

2-48 Core Optical Fiber Composite Overhead Ground Wire OPGW

48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable

Description

The central stainless steel tube cable and the OPGW are widely used for electric and communication needs. OPGW has multiple functions and can be customized for different structures.

Features

Fibers are protected and lightweight with excellent mechanical and electrical properties. They withstand high stress and match common ground wires.

Speicfications

Classification Material Value

Construction

 Optical Fibre G652D/G655 etc. 2 - 48
Protection Tube Stainless steel tube 1.5 - 6mm
Stranded Line AS wire/AA wire/Al Rod 1.5 - 6mm
Max. Diameter 18mm
Max. Cross Section 200mm2

Characteristic

 According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
Max. Tensile Strength (RTS ) (kN) 280
Max. Crush Strength(N/100mm) 2200
Max. Short Current Capacity (40℃-200℃)(kA2s) 100
Min. Bending Radius (Dynamic) 20D
Min. Bending Radius (Static) 15D
Environment Performance Installation (℃) -10 to +50
Transportation and Operation (℃) -40 to +65


Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

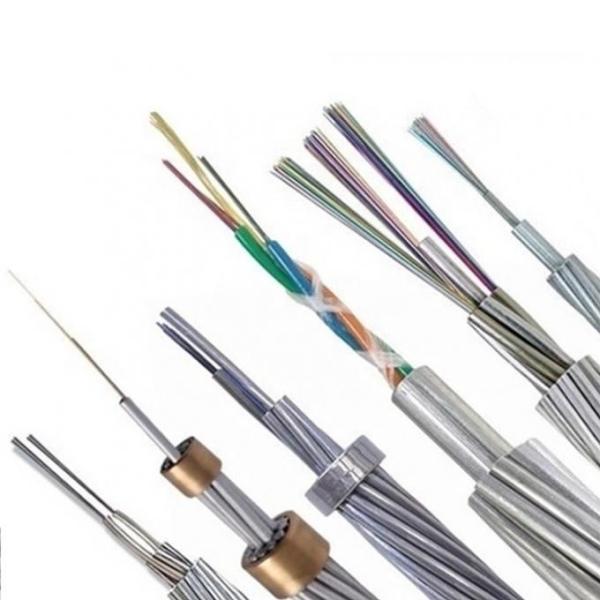

Structure and Product Pictures

48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable

Packing & Shipping

Cable is supplied on separate drums in specified lengths with plastic protection caps, and a test report for each fiber.

48 Core Aerial Central Optical Unit Overhead Ground Wire OPGW Fiber Cable
