60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer stranded OPGW
60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer stranded OPGW
Specifications
Brand Name :
MingTong
Model Number :
OPGW
Certification :
ISO
Place of Origin :
Dong Guan China
Price :
500-5000RNB/KM
Payment Terms :
L/C, T/T
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
Application :
Telecommunication, Aerial, Telecom, Network
Fiber :
G652D, G657A1, G657A2
Cable Diameter :
9-18.2mm
Bending Radius :
25 Times Cable Diameter
Package :
Iron-wooden Reel
Highlight :
60 Core OPGW Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable, double layer stranded OPGW
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Name :
OPGW Cable
Description
Product Description

OPGW Optical Ground Wire 60 Core Outdoor Aerial Fiber Optic Cable

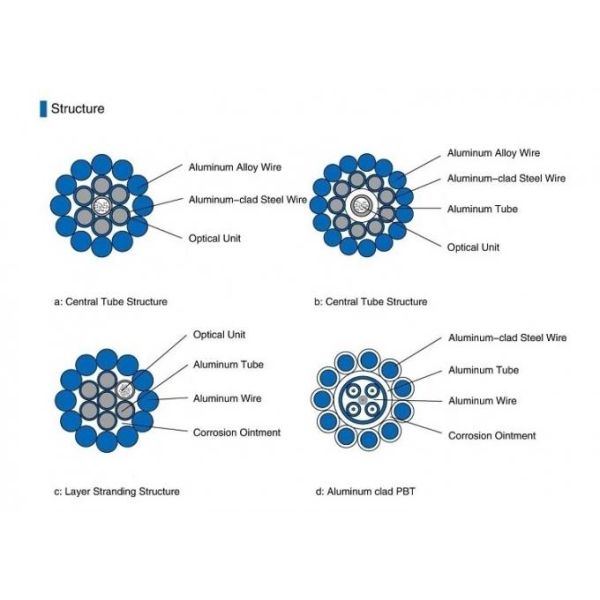

The opgw cable central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.

Features

1.Large diameter, large fiber capacity

2.The structure is stable and the reliability is high

3.Excellent capability against side and outstanding short circuit current capacity

4.The optimum stranding design can obtain the surplus length of secondary optical fiber

5.The number of strands can be designed in two or three layers

6.Match with common ground wires

Speicfication

Cable Count Out sheathDiameter(MM) Weight(KG) Minimum allowable Tensile Strength (N) minimum allowable Crush Load (N/100mm) Minimum Bending Radius(MM) Storage temperature(°C)
short term long term short term long term short term long term
60 10.5 90 1500 600 1000 300 20D 10D -40~70

Cable model OPGW-60 OPGW-70 OPGW-90 OPGW-110 OPGW-130
Number /diameter(mm) of stainless steel tube 1/3.5 2/2.4 2/2.6 2/2.8 1/3.0
Number /diameter of AL wire(mm) 0/3.5 12/2.4 12/2.6 12/2.8 12/3.0
Number /diameter of ACS wire(mm) 6/3.5 5/2.4 5/2.6 5/2.8 6/3.0
Diameter of Cable (mm) 10.5 12.0 13.0 14.0 15.0
RTS(KN) 75 45 53 64 80
Cable weight (kg/km) 415 320 374 432 527
DC resistance(200C W/km) 1.36 0.524 0.448 0.386 0.327
Modulus of elasticity(Gpa) 162.0 96.1 95.9 95.6 97.8
coefficient of Linear thermal expansion(1/×10-6) 12.6 17.8 17.8 17.8 17.2
Short circuit capacity (kA²s) 24.0 57.3 78.9 105.8 150.4
Max. operation temperature (C) 200 200 200 200 200

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

60 Core OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable double layer stranded OPGW

Packing and Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
