Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Application :
Aerial, Duct,Multi-cores Wiring System In Data Center
Fiber :
G652D, G657A1, G657A2
Fiber Count :
2-288 Fibers
Central Strength Member :
FRP
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
GYFTY53 Single Mode Armored Fiber Optic Cable, G652D Single Mode Armored Fiber Optic Cable, GYFTY53 single mode armored fiber cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Optical Cable
Description

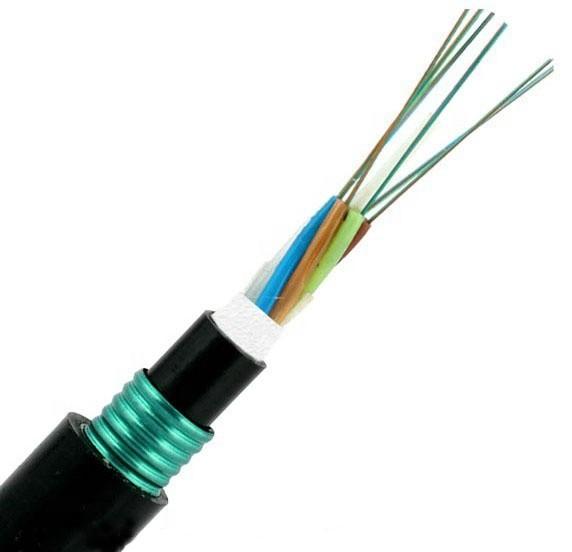

GYFTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable

GYFTY53 optic fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

  • Good mechanical and temperature perfomance;
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • The following measures are taken to ensure the cable watertight:

---FRP used as the central strength member

---Loose tube filling compound

---100% cable core filling

---PSP enhancing moisture-proof

---Water-blocking material

Applications

  • Aerial / Duct
  • Connecting communication equipments
  • Multi-cores wiring system in data center

Specifications

Cable Type GYTY53
Fiber Type SM
Application Long-distance communication, LAN
Recommended installation methods Direct buried
Environment Outdoor
Temperature Range -40℃ to 70℃

Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N)

Allowable Crush

Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
2~30 12.2 142 6 5 3000 1000 3000 1000
32~48 12.8 155 8 6 3000 1000 3000 1000
50~72 13.6 170 12 6 3000 1000 3000 1000
74~96 15.0 192 12 8 3000 1000 3000 1000
98~144 16.6 220 12 12 3000 1000 3000 1000
>144 Available upon customer’s request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

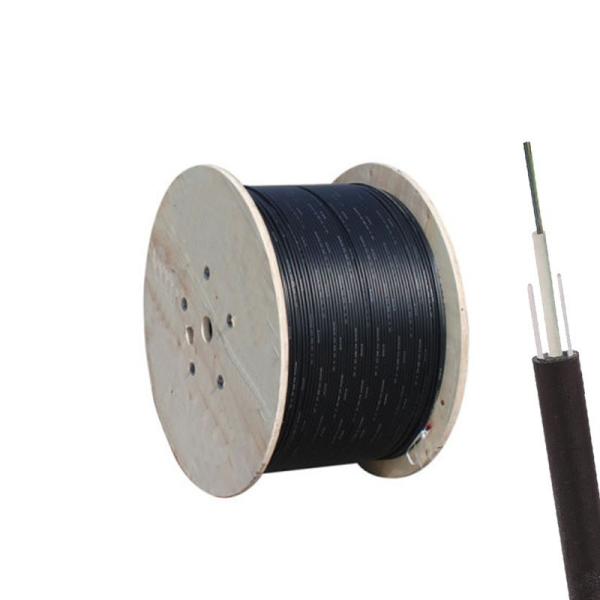

Structure and Product Pictures

Stranded Loose Tube GYFTY53 Single Mode Water-Blocking Armored Fiber Cable Commpetitive PriceStranded Loose Tube GYFTY53 Single Mode Water-Blocking Armored Fiber Cable Commpetitive Price
