36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable
36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable
36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable
36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Outer Sheath Material :
MDPE / HDPE
Outer Sheath Color :
Black
Loose Tube Material :
PBT Or Jelly
Single Armour Material :
Corrugated Aluminium Tape
Operating Temperature :
-40 Degree ~ +60 Degree
Water Blocking Material :
Water Blocking Tape Or Filling Compound
Installation Methods :
Self-Support Aerial

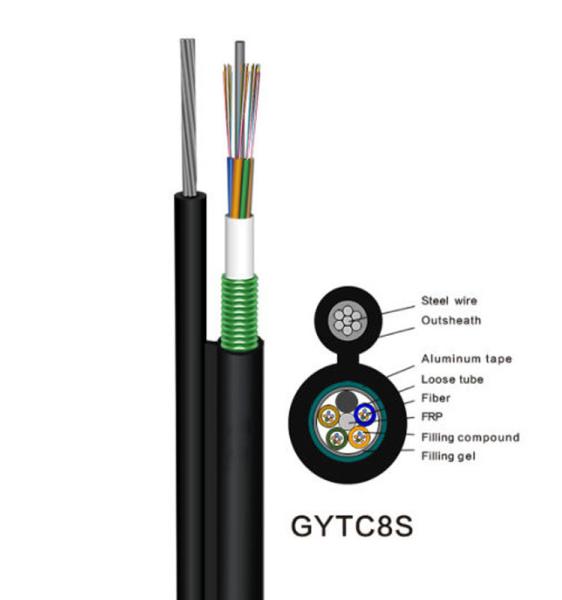

Structure Section :
"8" Figure Cross Section
Highlight :
steel wire armoured cable, direct burial fiber optic cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Optical Cable
Description

Outdoor Self-Support 36Core Fiber Optic Cable GYTC8s

36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable

36 Cores Self Support Armoured Network Cable GYTC8Sfiber optic cable for outdoor cable


Application:

☆.Adopted to outdoor distribution.

☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.

Characteristics:

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
☆.Fiber count: 2-24 cores.

Fiber Allocation Scheme

Fiber number Tube number Fiber per tube Fiber type
2 1 2 F/Tube SM G652D MM 50/125 MM 62.5/125
4 1 4 F/Tube
6 1 6 F/Tube
8 1 8 F/Tube
12 1 12 F/Tube
24 1 24 F/ Tube

Cable Sheath Marking
Each cable have the following information clearly marked on the outer jacket of cables:
a. Name of manufacturer.
b. Year of manufacturer
c. Type of cable and fiber
d. Length mark (printing on each meter normally)
e. Or as customer's requirements.

Cable Construction Details

Items Description
Number of fiber 2 cores to 24cores
Connector strength member Material Galvanized steel wire
diameter 1.2 mm
Loose tube material PBT
diameter Ф2.0-2.8
Cable filling material Cable filling compound
Outer sheath material HDPE
diameter 1.7±0.2mm

Cable Mechanical Characteristic

Items Cable diameter Weight
2 cores to 24 cores 3.2*7.2 mm 70 kg/km
Installation Temperature range -15--+60
Operation and transport temperature -40-+70
Rec.daily max working tension 1500 N
Max. Allowable working tension 600 N
Min Bending Radius(mm) operation 10D mm
installation 20D mm
Extra load 0.5%-0.7%
Ice 5mm
Wind speed 35m/s

Fiber Characteristic

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
condition nm 1310/1550 850/1300 850/1300
attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Dispersion 1310nm Ps/(nm*km) ≥-3.4 ≤3.4 ..... .....
1550nm Ps/(nm*km) ≤18 ..... .....
1625nm Ps/(nm*km) ≤22
Bandwidth 850nm MHZ. KM ..... >=400 >=160
1300nm MHZ. KM ..... >=800 >=500
Zero dispersion wavelength nm >=1302,≤1322 ..... .....
Zero dispersion slope Ps(nm2*km) ≤0.091 ..... .....
PMD Maximum Individual Fiber Ps√km ≤0.2 ..... .....
PMD Design Link Value Ps√km ≤0.08 ..... .....
Fibre cutoff wavelength λc nm >=1180,≤1330 ..... .....
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 ..... .....
1550nm um 10.4±0.8 ..... .....
Numerical Aperture(NA) ...... 0.200±0.015 0.275±0.015
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.10 ≤0.10
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.10 ≤0.10
Difference backscatter coefficient dB/km ≤0.03 ≤0.08 ≤0.10
Attenuation uniformity dB/km ≤0.01 ....... .......
Core diameter um ...... 50±1.0 62.5±2.5
Cladding diameter um 125.0±0.1 125.0±0.1 125.0±0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤1.5 ≤1.5
Curl(radius) um ≤4 ..... .....
Tag: self-supporting cable, figure 8, 24 core.
