Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication
Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication
Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication
Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Product Name :
Outdoor Optic Fiber Cable
Application :
Aerial
Fiber Type :
G652D
Fiber Count :
2-24 Cores
Installation :
Self- Supporting Aerial
Jacket Material :
PE
Highlight :
GYXTC8S 2 Core Outdoor Cable, Loose Tube 2 Core Outdoor Cable, GYXTC8S 2 core outdoor fiber optic cable
Name :
Outdoor Optical Cable
Description

Loose Tube Stranded GYXTC8S Outdoor Fiber Optic Cable Aerial Telecommunication Optical Cable

Description:

GYXTC8S is an outdoor communication figure 8 aerial-self supporting optical cable of metallic strength member of the central tube jelly-filled structure, with steel-polyethylene laminated sheath.


The metal strength member is made up of stranded wires, the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

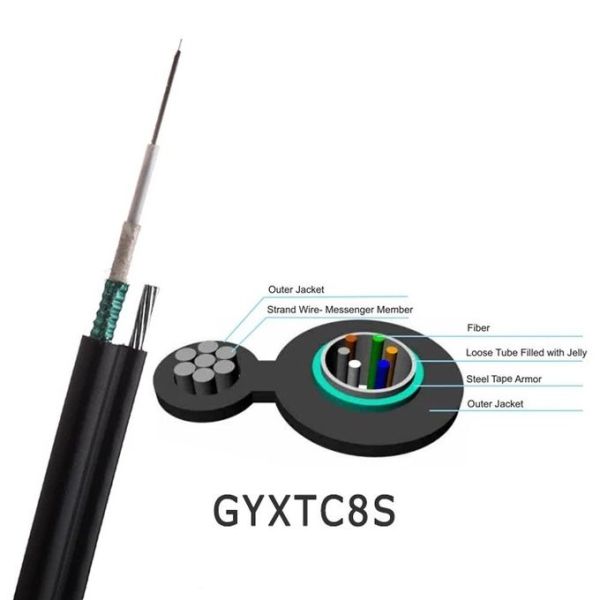

Structure:

  • Self-supporting 7 steel wire strand,structure of figure 8
  • Central Loose tube, special gel in the tube
  • Corrugate steel tape armored
  • PE outer sheath

Feature:

  • Loose tube gel-filled construction for superior fiber protection.
  • CST armor to protect cable from rodent attack and mechanical damage.
  • UV and moisture-resistant design

Specification:

Technical Parameters
Cable Type
Fiber Count
Cable Diameter (mm)
Cable Weight (kg/km)
supporting wire Spec.
connection diameter
Tensile Strength
Long/Short Term(N)
Crush Resistance
Long/Short Term (N/100mm)
Bending Radius
Static/Dynamic (mm)
GYXTC8S
2~12
7.65*14.5
118
φ1.0mm*7 stranded wire
H*W 3.0*2.5 mm
1000/2500
300/1000
80D/160D
GYXTC8S
14-24
8.2*15.4
129
φ1.0mm*7 stranded wire
H*W 3.0*2.5 mm
600/1500
300/1000
80D/160D
Storage/Operating Temperature : -40℃ to + 70℃
Optical Characteristics
G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
'@850nm
≤3.0 dB/km
≤3.0 dB/km
'@1300nm
≤1.0 dB/km
≤1.0 dB/km
'@1310nm
≤0.36 dB/km
≤0.40 dB/km
'@1550nm
≤0.22 dB/km
≤0.23 dB/km
Bandwidth
(Class A)
'@850nm
≥500 MHz·km
≥200 MHz·km
'@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.

Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication

Application:

  • Inter-building voice or data communication backbones.
  • Duct and Self-Supporting aerial
