Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core
Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core
Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core
Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core
Specifications
Brand Name :
MingTong
Model Number :
GYFTY
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber Type :
G652D, G657A1, G657A2
Fiber Count :
2 Fibers
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
Loose Tube GYFTY Fiber Optic Cable, 2 Core GYFTY Fiber Optic Cable, Non Metallic GYFTY Fiber Optic Cable
Central Strength Member :
FRP
Armor :
Non-armored
Name :
Outdoor Optical Cable
Description
Product Description

Loose Tube Non - Metallic & Non - Armored 2 Core GYFTY Outdoor Fiber Optic Cable

1. Description

Product Construction:

Fiber:

2 fiber

Multi-loose tube gel-filled


Central Strength Member:

Fiberglass reinforced Platic (FRP).


Outer Jacket:

Black UV Polyethylene(PE)


2. Features

  • Loose tube gel-filled construction for superior fiber protection.
  • Corrugated steel tape armor to protect cable from mechanical damage.
  • UV and waterproof design.

3. Specifications

Fiber Type G.652 G.655 50/125 um 62.5/125 um
Attenuation 850 nm

<3.0 dB/km <3.3 dB/km
(+20X) 1300 nm

<1.0 dB/km <1.0 dB/km

1310 nm <0.36 dB/km <0.40 dB/km


1550 nm <0.22 dB/km <0.23 dB/km

Bandwidth 850 nm

>500 MHz-km >200 Mhz-km
1300 nm

>500 MHz-km >500 Mhz-km
Numerical Aperture

0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm



Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Max Fiber

Per Tube

Max No. of

(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
2~36 10.2 85 6 6 1500 600 1000 300
38~72 11.1 100 12 6 1500 600 1000 300
74~96 12.6 130 12 8 1500 600 1000 300
98~120 14.1 162 12 10 1500 600 1000 300
122~144 15.9 204 12 12 1800 600 1000 300

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

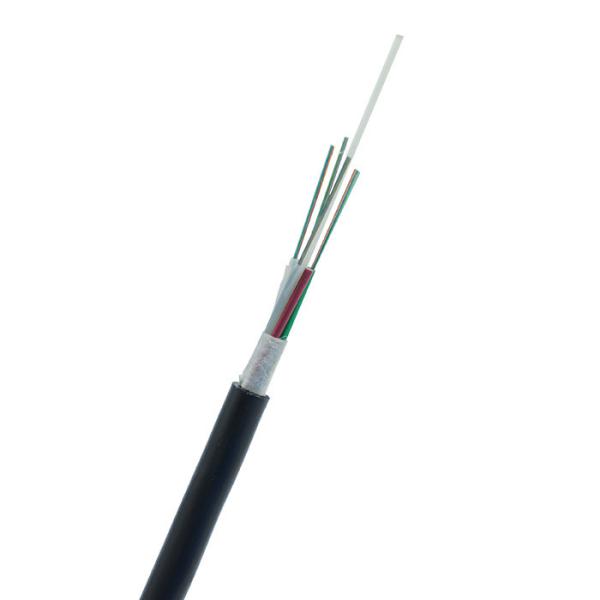

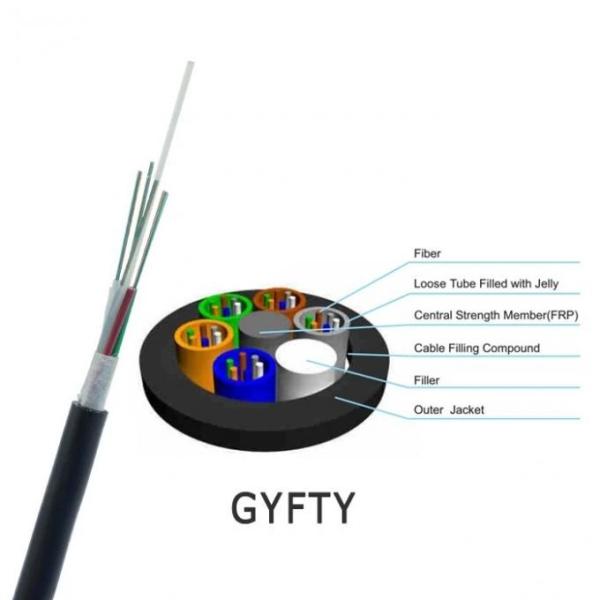

4.Structure and Product Pictures

Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 CoreLoose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core


5.Packing and Shipping

Cable is supplied in length as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.


Loose Tube GYFTY Fiber Optic Cable Non - Metallic & Non - Armored 2 Core
