Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Product Name :
Figure 8 Self-support Fiber Cable
Messenger :
Steel Wire
Messenger Diameter :
5.0mm
Outersheath Material :
PE
Standard :
YD/T 1155-2011
Fiber Count :
2-144 Core
Highlight :
GYTC8S Armoured Fiber Optic Cable, 6 Core Armoured Fiber Optic Cable, Single Mode Armoured Fiber Optic Cable
Name :
Outdoor Optical Cable
Description

Outdoor Aerial Figure-8 Fiber Optic Cable Singlemode 2-144 core GYTC8S Loose Tube Optical Communication Cable



Description:

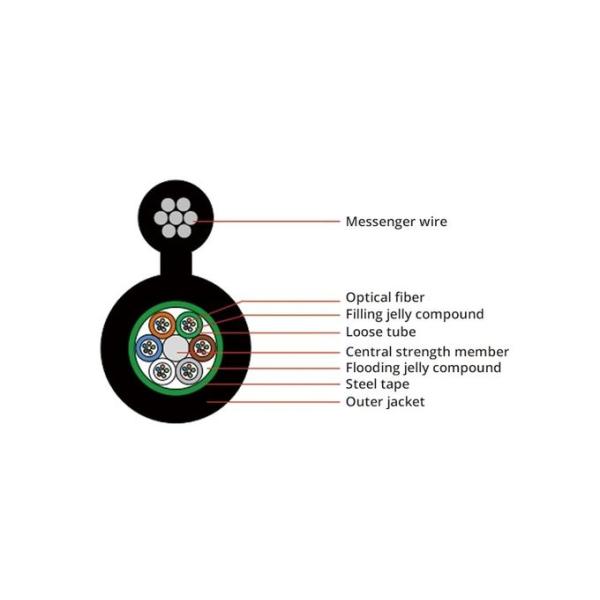

Loose tube style, a figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.


Feature:

1.G652D fiber information after cabled
2. Mode field diameter (1310nm): 9.2m0.4m
3. Mode field diameter (1550nm): 10.4m0.8m
4. Cut off wavelength of cabled fiber (cc): 1260nm
5. Attenuation at 1310nm: 0.36dB/km
6. Attenuation at 1550nm: 0.22dB/km
7. Bending loss at 1550nm (100 turns, 30mm radius): 0.05dB
8. Dispersion in the range 1288 to 1339nm: 3.5ps/ (nm•km)
9. Dispersion at 1550nm: 18ps/ (nm•km)
10. Dispersion slope at zero dispersion wavelength: 0.092ps/
(nm2•km)


Dimensional Characteristics:

Designation Max. number Steel wire/ stand Stranded Nominal cable Nominal cable
Of fibers per tube Diameter (mm) units diameter (mm) weight (kg/km)
GYTC8S 2-36 6 2.3 6 11.6X25.5 270
GYTC8S 38-72 12 2.3 6 13.2X28.5 310
GYTC8S 74-96 12 2.3 8 14.9X33.0 390
GYTC8S 98-120 12 2.3 10 16.8X33.0 390
GYTC8S 122-144 12 2.3 12 18.8X35.0 440


Mechanical & Environmental Characteristics:

Item Characteristics
GYTC8S 2-72 GYTC8S 74-96 GYTC8S 98-144
Tensile Strength 9000N 10000N 12000N
Crush Resistance 1000/100mm
During Installation 20 Times Cable Diameter
After Installation 10 Times Cable Diameter
Messenger wire Diameter: 1.2mmx7 steel wire strand
Storage(°c) -50 to+70
Operating(°c) -40 to+60


Fiber G652D

Category Description Specifications
Before cabling
After cabling
Optical Specifications Attenuation @1310 nm ≤0.34 dB/km (max.) ≤0.36 dB/km (max.)
Attenuation @1550 nm ≤0.20 dB/km (max.) ≤0.22 dB/km (max.)
Attenuation @1625 nm ≤0.23dB/km ≤ 0.25 dB/km
Zero Dispersion Wavelength 1300~1324 nm
Zero Dispersion Slope ≤ 0.090 ps/nm2·km
PMD Link value (M=20cables Q=0.01% )
maximum PMDQ		 0.2 ps/√km
Cable Cutoff Wavelength (λcc) ≤1260 nm
Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm
≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB
Mode Field Diameter @1310 nm 9.2±0.4μm
@1550 nm 10.4±0.5μm
Dimensional
Specifications		 Cladding Diameter 125 ±0.7μm
Core/clad concentricity error ≤0.5μm
Cladding Non-Circularity ≤1.0%
Mechanical
Specifications		 Proof stress ≥0.69Gpa
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.


Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
Application:

  • Aerial
  • Long distance communication and LAN
  • Indoor shaft, building wire
