6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C,T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Fiber Optic Cable Multi Mode
Product Name :
Figure 8 Self-support Optical Cable
Application :
Telecommunication,Aerial
Fiber Type :
G652D,single Mode Or Multi Mode
Fiber Count :
2-288 Cores
Jacket Material :
PE,LSZH,PVC
Installation :
Self- Supporting Aerial
Highlight :
GYTC8S Outdoor Fiber Optic Cable, 250μm outdoor fiber optic cable, 6 Core Outdoor Fiber Optic Cable
Description

GYTC8S Outdoor Aerial Multi mode/Single Mode Self-supporting Figure 8 Armored 6 Core Fiber Optic Cable



Description:

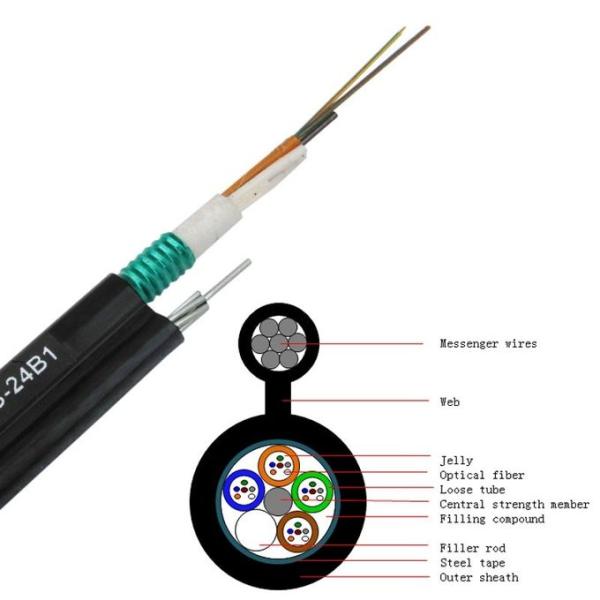

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.


Feature:

  1. The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
  2. Has good mechanical and temperature properties.
  3. The loose tube material itself has good hydrolysis resistance and high strength.
  4. The tube is filled with a special grease to protect the fiber.
  5. Double coated steel strip (PSP) improves the moisture resistance of the cable.
  6. Small diameter, light weight and easy to lay.
  7. Long delivery length and low price.

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D

Cores no. 2-42 44-72 74-84 86-96 98-108 110-120 122-132 134-144
OD Outer diameter(mm) 10.4 11.2 12.2 14.0 14.8 15.8 16.6 17.4
Cable weigh(kg/km) 90 100 115 180 195 220 240 265

Mechanical & Environmental Characteristics:

Item Characteristics
GYTC8S 2-72 GYTC8S 74-96 GYTC8S 98-144
Tensile Strength 9000N 10000N 12000N
Crush Resistance 1000/100mm
During Installation 20 Times Cable Diameter
After Installation 10 Times Cable Diameter
Messenger wire Diameter: 1.2mmx7 steel wire strand
Storage(°c) -50 to+70
Operating(°c) -40 to+60


Fiber G652D

Category Description Specifications
Before cabling
After cabling
Optical Specifications Attenuation @1310 nm ≤0.34 dB/km (max.) ≤0.36 dB/km (max.)
Attenuation @1550 nm ≤0.20 dB/km (max.) ≤0.22 dB/km (max.)
Attenuation @1625 nm ≤0.23dB/km ≤ 0.25 dB/km
Zero Dispersion Wavelength 1300~1324 nm
Zero Dispersion Slope ≤ 0.090 ps/nm2·km
PMD Link value (M=20cables Q=0.01% )
maximum PMDQ		 0.2 ps/√km
Cable Cutoff Wavelength (λcc) ≤1260 nm
Macro bending Loss
(1 turn; Ф32 mm) @1550 nm
(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm
≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB
Mode Field Diameter @1310 nm 9.2±0.4μm
@1550 nm 10.4±0.5μm
Dimensional
Specifications		 Cladding Diameter 125 ±0.7μm
Core/clad concentricity error ≤0.5μm
Cladding Non-Circularity ≤1.0%
Mechanical
Specifications		 Proof stress ≥0.69Gpa
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.


6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
Application:

  • Aerial
  • Long distance communication and LAN
  • Indoor shaft, building wire

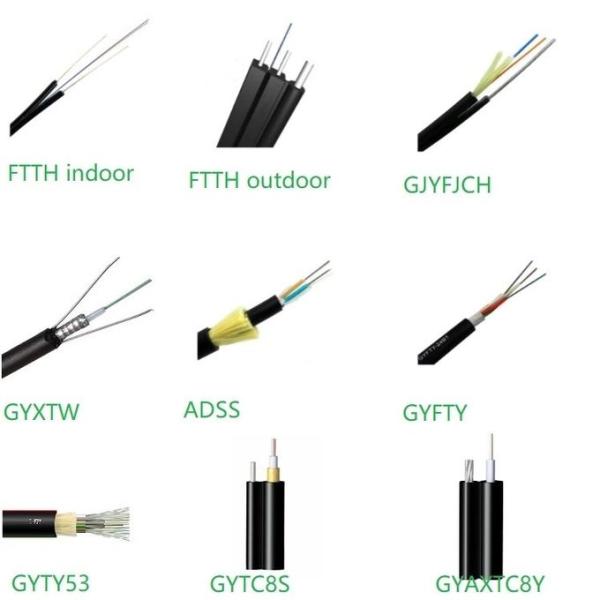

Relalted Products:
