GYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode
GYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode
Specifications
Brand Name :
MingTong
Model Number :
GYTA53
Certification :
ISO
Place of Origin :
Dong Guan China
MOQ :
20km
Price :
500-3000RNB/KM
Payment Terms :
T/T,L/C
Supply Ability :
200km/Day
Delivery Time :
It depends on the actual situation.
Product Name :
Outdoor Fiber Optic Cable GYTA53
Structure :
Loose Tube Strand
Fiber Type :
G652D Single Mode
Fiber Count :
2-288 Core
Strength Member :
Steel Wire
Highlight :
GYTA53 Armored Outdoor Fiber Optic Cable, HDPE Armored Outdoor Fiber Optic Cable, GYTA53 shielded fiber optic cable
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Name :
Outdoor Optical Cable
Description
Gallery

HDPE Double Sheath GYTA53/GYTS53 Single Mode Armored about Direct Buried Outdoor Fiber Optic CableGYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single ModeGYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode

Product Description

MDPE/HDPE Double Sheath 2-288 Core GYTA53 Armored Fiber Optic Cable

Underground Direct Burial

Description

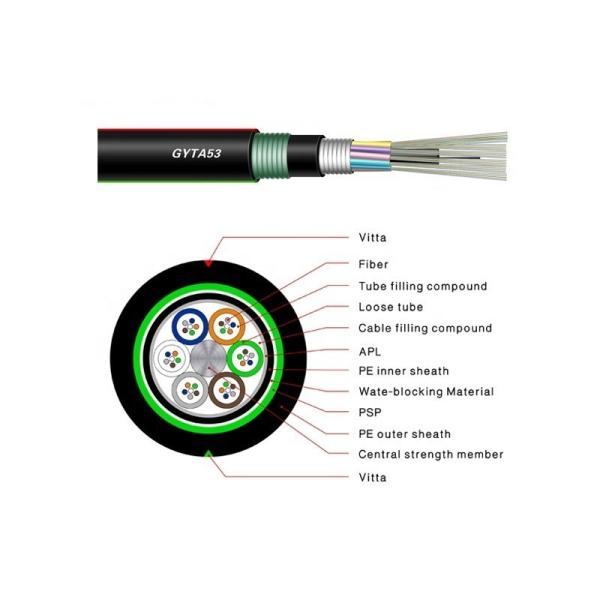

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


Structure

  • Single steel wire as central strength member with PE sheath
  • The loose tube filled with special waterproof compound
  • Full core filling jelly
  • Double corrugated steel tape armored
  • Anti-UV PE outer jacket


Features

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • PE sheath protects cable from ultraviolet radiation
  • Good crush ability,applies for duct and directly buried application
  • To assure the water-proof function by:
  • Single steel wire as central strength member
  • Special tube filling compound ensure a critical protection of fiber
  • Fully filled in the cable
  • Double APL layers prevent the moisture
  • Good water-blocking tape prevent the sinking verticallyGYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode
