Aerial GYFXTY Non Metallic Fiber Optic Cable 4 Core PE Jacket G652D Fiber Cable
Aerial GYFXTY Non Metallic Fiber Optic Cable 4 Core PE Jacket G652D Fiber Cable
Aerial GYFXTY Non Metallic Fiber Optic Cable 4 Core PE Jacket G652D Fiber Cable
Aerial GYFXTY Non Metallic Fiber Optic Cable 4 Core PE Jacket G652D Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :

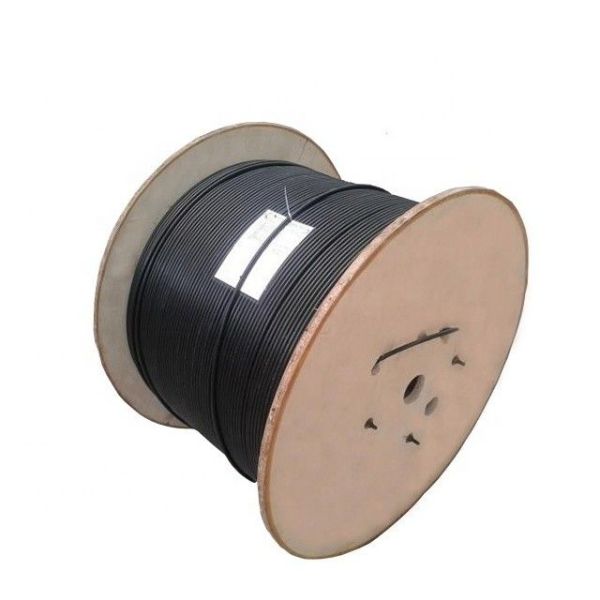

Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Model No :
GYFXTY
Outer Sheath Material :
PE
Strength Member :
2 FRP
Fiber Count :
2-288 Cores
Waterblocking Material :
Water Blocking Tape Or Filling Compound
Loose Tube Material :
PBT With Jerry
Highlight :
GYFXTY Outdoor Fiber Optic Cable, G652D Fiber Outdoor Fiber Optic Cable, GYFXTY 4 core fiber optic cable
Name :
Outdoor Optical Cable
Description

4 Cores Aerial GYFXTY Outdoor Non-Metallic Fiber Optic Cable PE Jacket With G652D Fiber

Outdoor Aerial 4 Cores GYFXTY PE Jacket FRP Messenger Wire Optical Fiber with G652D Fiber

GYXFTY single mode fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member. the cable is completed with a PE sheath. GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application

Product functions and features

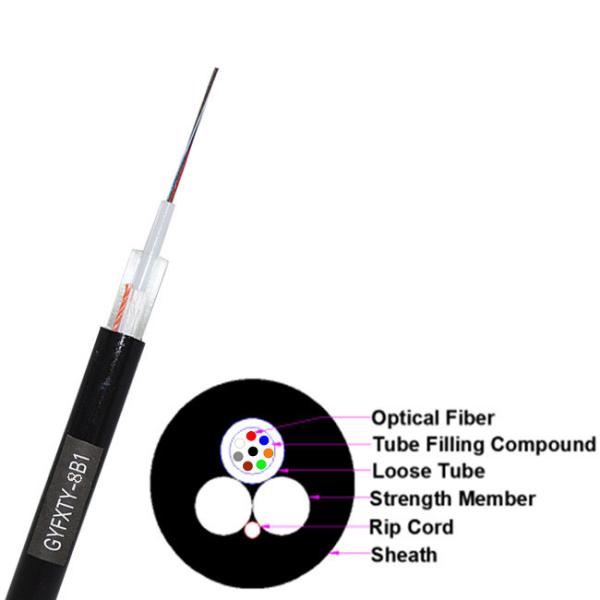

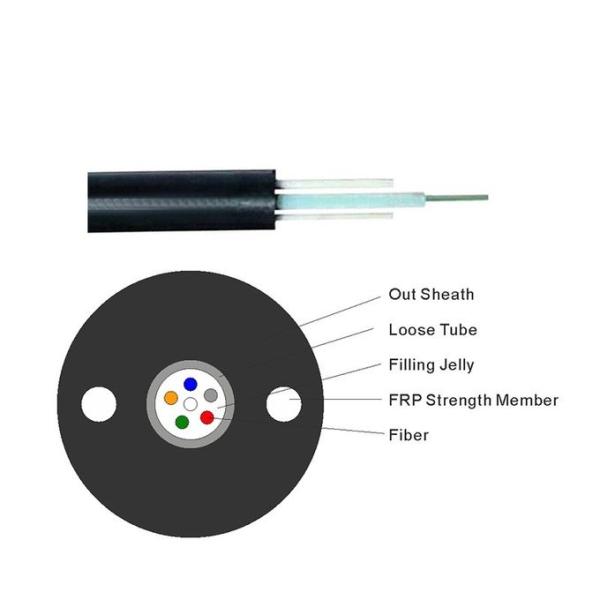

The structure of GYFXTY central beam tube optical cable is to insert 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube is wrapped with a layer of aramid yarn(Made In China) longitudinally, and water blocking material is added between the aramid yarn and the loose tube to ensure the compactness of the optical cable and the longitudinal water blocking. Two parallel steel FRP are placed on both sides and the polyethylene sheath is extruded Into a cable.

Specifications

Brand
TW-SCIE
Optical Fiber Type
Singel Mode G652D
Jacket Material
PE
Fiber Count
4
Jacket Color
Black
Strength Member
2 Parallel FRP
Cable Diameter
6.0mm
Length
2000m per roll or customized
Gross Weight
35 kgs

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
Optical Characteristics
Mode field diameter (MFD) 1310nm
1550nm		 9.2±0.4
10.4±0.8		 µm
µm
Cut-off wavelength (λcc) ≤1260 nm
Attenuation coefficient 1310nm
1383nm
1550nm		 <0.35
<0.35
<0.22		 dB/km
dB/km
dB/km
Macro bending loss φ75mm, 100circles, at 1550nm ≤0.1 dB
Attenuation non-uniformity ≤0.05 dB
Dispersion coefficient 1288~1339nm
1271~1360nm
1550nm		 ≤3.5
≤5.3
≤18		 Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km)
Zero dispersion wavelength 1300~1324 nm
Max zero dispersion slope ≤0.093 Ps/(nm2.km)
Group index of refraction (typical value) 1310nm
1550nm		 1.466
1.467
Geometric characteristic
Cladding diameter 125.0±1.0 µm
Core/cladding concentricity error ≤0.8 µm
Cladding non-circularity ≤1.0 %
Coating diameter 245.0±10 µm
Cladding/coating concentricity error ≤12.0 µm
Coating non-circularity ≤8 %
Diameter of colored coating 250.0±15 µm
Mechanical characteristic
Curling (radius) ≥4 m
Proof stress >0.69 Gpa
Coating strip force Average value
Peak value		 1.0-5.0
1.3-8.9		 N
N
Dynamic stress corrosion susceptibility parameter (nd value) ≥20
