Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket
Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket
Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket
Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Supply Ability :
200km/Day
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Highlight :
Steel Tape Armoured Ofc Cable, Aerial Corrugated Armoured Ofc Cable, Anti UV Armoured Ofc Cable
Product Name: :
Outdoor Fiber Optic Cable
Fiber Type :
G652D
Strength Member :
Steel Wire
Sheath Material :
PE
Fiber Count :
2 Core
Water Blocking Material :
Water Blocking Material: Water Blocking Tape And Jelly
Waterblocking Material :
Water Blocking Tape
Name :
Armoured OFC Cable
Description
Product Description

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

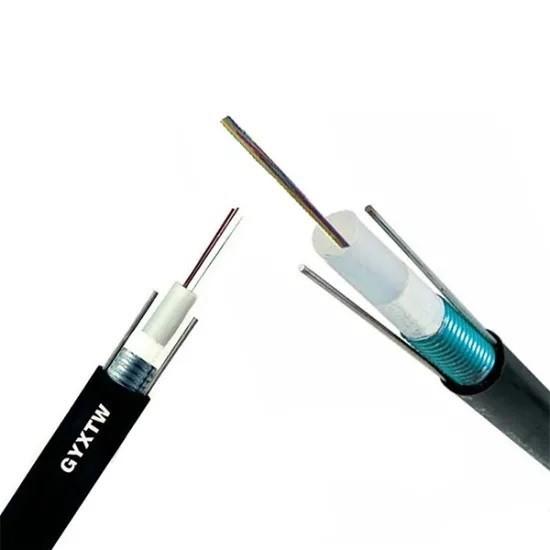

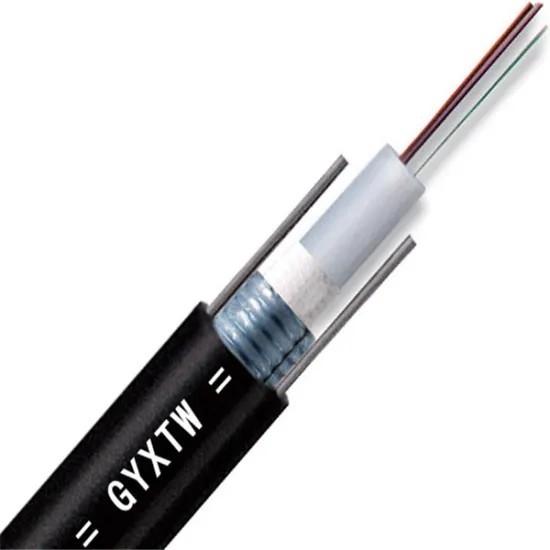

GYXTW

Central Loose Tube Fiber Optic Cable

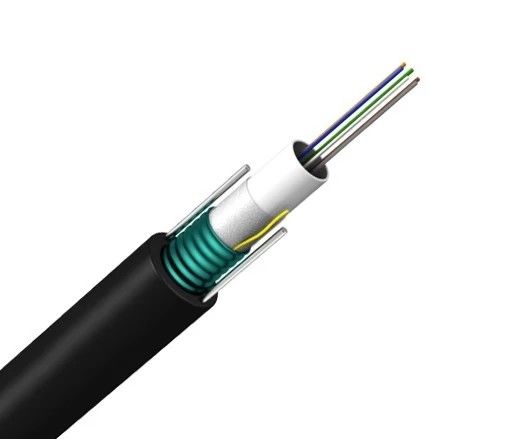

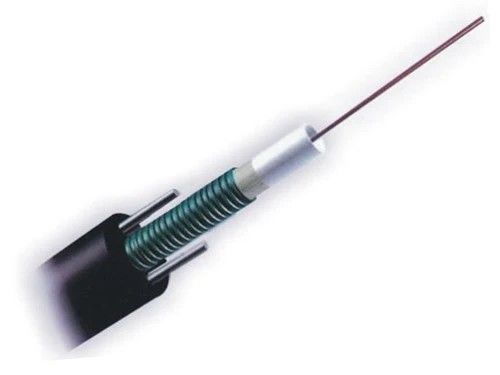

The fibers are positioned in a loose tube filled with a water-resistant filling compound. Two parallel round steel wires are placed at the two sides of inner PE sheath, outside the central loose tube it is wrapped by water-blocking system, corrugated steel tape is laminated at both side and bonded to PE outer jacket.

Feature:

1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties

Specification:

Optical Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Structure and Technical Specifications

Fiber Count

Nominal Diameter

(mm)

Nominal Weight

(kg/km)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 7.8 60 1500 600 1500 600
14~24 8.5 85 1500 600 1500 600

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for

more detailed information.

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE JacketOutdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE JacketOutdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Application:

Aerial & Duct

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Related products:

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Our Company:

We specialize in the manufacture of a wide range of optical cables including Aerial & Duct Optical Cable, Buried Cable, under water Fiber Cable, Field fiber cable, ADSS, OPGW, FTTH Drop cable, patch cord, pigtail and optical passive device series etc. They are produced to international quality standards or composite construction to customers’ specification incorporating other services when required.

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE JacketOutdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket

Quality Commitment

Our product quality is consistently high. Every drum of cable is carefully tested with stringent criteria. As a result, our cables not only meet, but exceed the industry standard most of the time. We have total quality commitment to follow strictly the emerging standard and ever-changing technologies in data communications.

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794-1-2-E
Max. Operation Tension IEC 60794-1-2-E1
Crush Test IEC 6079 -1-2-E3
Impact Test IEC 60794-1-2-E4
Repeated Bending IEC 60794-1-2-E6
Torsion Test IEC 60794-1-2-E7
Cable bend IEC 60794-1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794-1-2-F1
Water Penetration IEC 60794-1-2-F5B
Filing Compound Flow IEC 60794-1-E14
