GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Unitube Fiber Optic Cable 2-24 Core
GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Unitube Fiber Optic Cable 2-24 Core
GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Unitube Fiber Optic Cable 2-24 Core
GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Unitube Fiber Optic Cable 2-24 Core
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Bulk Outdoor Fiber Optic Cable
Product Name :
Outdoor Aerial Self-support Optical Fiber Cable
Messenger :
1 Single Steel Wire
Structure :
Uni-Tube
Outer Sheath :
Aramid Yarn + PE Sheath
Fiber Count :
2-24 Cores
Highlight :
GYXTC8 Bulk Outdoor Fiber Optic Cable, Uni Tube Bulk Outdoor Fiber Optic Cable, GYXTC8 bulk fiber optic cable
Description

GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Uni Tube

GYXTC8 Self-support Fiber Optic Cable Uni-tube Figure 8 Shape Single Wire Messenger PE Sheath Optical Cable

Description:

GYXTC8 is an outdoor communication figure 8 aerial-self supporting optical cable of metallic strength member of the central tube jelly-filled structure, with aramid yarn sheath.


Self-supported figure 8 optical cable with fibers placed in a unit tube, The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a aramid yarn. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

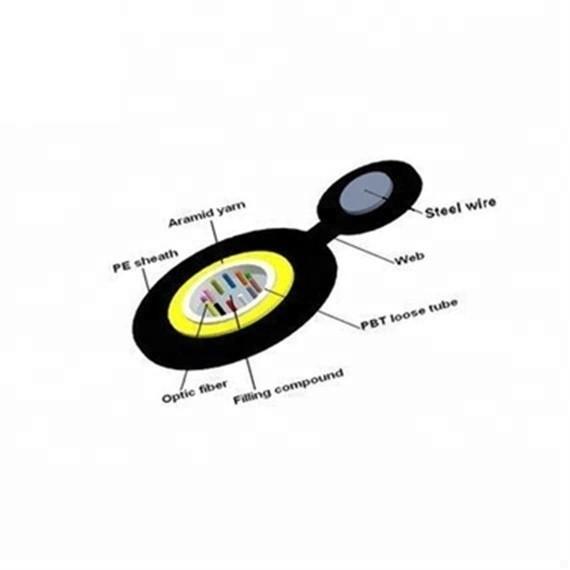

Structure:

  • 1 phosphating steel wire as messenger, figure 8 shape cable body.
  • Central Loose tube, special gel in the tube
  • Aramid Yarn + PE sheath

Feature:

  • High tensile strength of stranded wires meet the requirement of self-supporting
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • The following measures are taken to ensure the cable watertight:
    · Loose tube filling compound
    · 100% cable core filling

Specification:

Technical Parameters
Cable Type
Fiber Count
Cable Diameter (mm)
Cable Weight (kg/km)
supporting wire Spec.
connection diameter
Tensile Strength
Long/Short Term(N)
Crush Resistance
Long/Short Term (N/100mm)
Bending Radius
Static/Dynamic (mm)
GYXTC8S
2~12
7.65*14.5
118
φ1.0mm*7 stranded wire
H*W 3.0*2.5 mm
1000/2500
300/1000
80D/160D
GYXTC8S
14-24
8.2*15.4
129
φ1.0mm*7 stranded wire
H*W 3.0*2.5 mm
600/1500
300/1000
80D/160D
Storage/Operating Temperature : -40℃ to + 70℃
Optical Characteristics
G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
'@850nm
≤3.0 dB/km
≤3.0 dB/km
'@1300nm
≤1.0 dB/km
≤1.0 dB/km
'@1310nm
≤0.36 dB/km
≤0.40 dB/km
'@1550nm
≤0.22 dB/km
≤0.23 dB/km
Bandwidth
(Class A)
'@850nm
≥500 MHz·km
≥200 MHz·km
'@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.

GYXTC8 Bulk Outdoor Fiber Optic Cable Self Support Unitube Fiber Optic Cable 2-24 Core

Application:

  • Aerial.
  • Long distance communication and LAN.
  • Indoor shaft, building wiring.

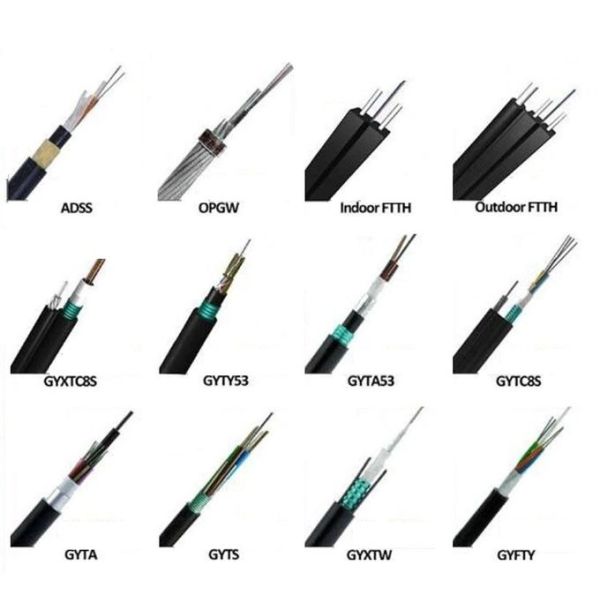

Relalted Products:
