2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Black Outdoor Fiber Optic Cable
Model No :
GYXTW
Outer Sheath Material :
PE
Strength Member :
Steel Wire
Filler :
Jelly
Fiber Count :
2-288
Brand Name Of Fiber :
Corning ,Yofc,Draka,Fujikura Or As Your Requiremen
Waterblocking Material :
Water Blocking Tape
Installation Style :
Aerial,Duct,Connecting Communication Equipments,Indoor Shaft,Building Wiring
Highlight :
GYXTW Outdoor Fiber Optic Cable, PE Sheath Outdoor Fiber Optic Cable, 12 core gyxtw fiber optic cable
Description

2 4 8 12 Core Black Anti-UV PE Sheath GYXTW Outdoor Fiber Optic Cable

Outdoor Fibre Cable Optical Fiber - GYXTW Price 2/4/8/12 Core

The single mode fiber optic cables, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics


1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Duble-sided PE corrugated steel tape armored.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.

Applications

1. Suitable for ducts & aerial.
2. Long distance communication system.
3. Local area network system.
4. Subsriber network.

Specifications

Fiber count cable diameter Cable Weight Tension(N) Crush(N/100mm) Bending radius(mm)
2-30 9.6 90 600 1500 300 1000 10D 20D
32-36 10.0 97 600 1500 300 1000 10D 20D
38-60 10.4 112 600 1500 300 1000 10D 20D
62-72 11.0 130 600 1500 300 1000 10D 20D
74-96 12.5 165 600 1500 300 1000 10D 20D
98-120 14.0 190 600 1500 300 1000 10D 20D
122-144 16.5 204 600 1500 300 1000 10D 20D

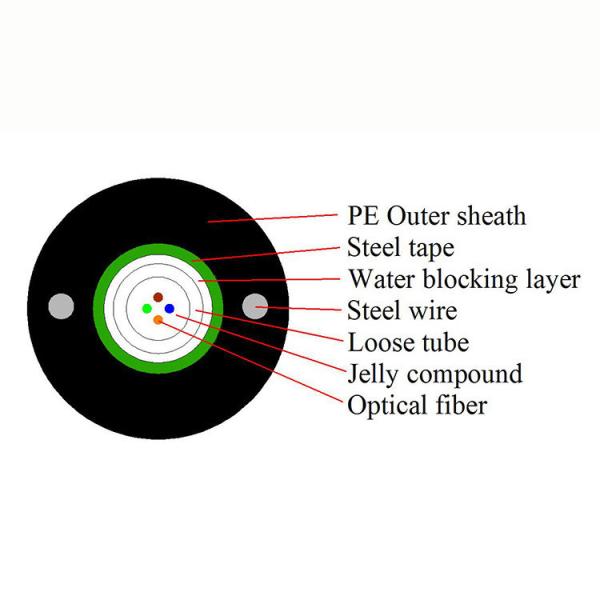

Product Structure

2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
