Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Application :
Telecommunication,Aerial, Duct
Name :
Direct Burial Fiber Optic Cable Loose Tube
Fiber Type :
G652D,single Mode Or Multi Mode
Fiber Count :
2/4/6/8/12 Core
Color :
Black,Customized
Jacket :
PE,MDPE,LSZH
Product Name :
Outdoor Optic Fiber Cable
Length :
1 Km 2km 3km Per Drum
Oem :
Available
Structure :
Loose Tube
Operating Temperature :
-40~75
Strength Member :
Two Steel Wire
Fiber Color :
Blue,Orange,Brown,Grey
Core :
Up To 48 Fibers
Highlight :
GYTA53 Armoured Fiber Cable, Loose Tube Armoured Fiber Cable, direct burial armoured ofc cable
Description

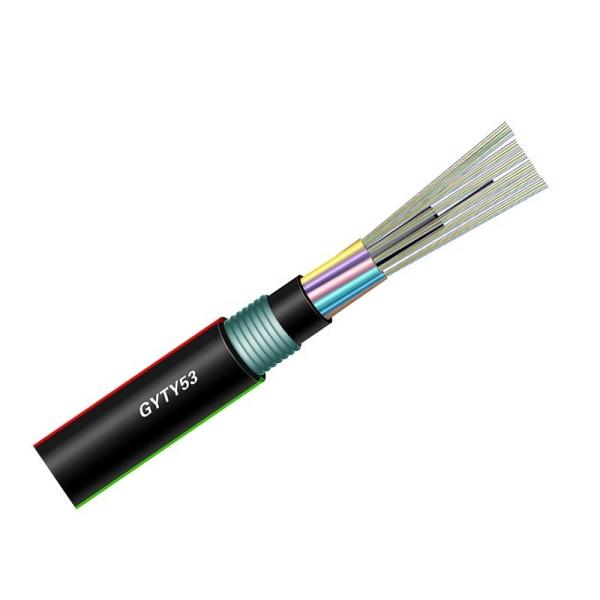

GYTA53 Direct Burial Outdoor Loose Tube Stranded Armoured Multi Core Fiber Optical Cable Price

Cable Description:
Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance.

Feature
Overlapping aluminium tape providing an excellent anti-moisture performance
Double sheath

GYTA53 optic fiber cable Applications:
1.Adopted to Outdoor distribution
2.Suitable for duct and buried method
3.Long distance and local area network communication
4.Used OUTDOOR cabling

GYTA53 Fiber Optic Cable Technology Specification:
Out sheath Tight buffer Weight Minimum allowable Minimum allowable Crush Load Minimum Bending Radius Storage
Diameter Diameter

TensileStrength(N)
(N/100mm) (MM) temperature(°C)
(MM) (MM) (KG) short term long Term short term long term short term long term -40+60
2-60 13.3 2210 3000 1000 3000 1000 20D 10D -40+60
62-72 14.6 255 3000 1000 3000 1000 20D 10D -40+60
74-96 16.2 305 3000 1000 3000 1000 20D 10D -40+60
98-120 17.7 350 3000 1000 3000 1000 20D 10D -40+60
122-216 19.6 420 3000 1000 3000 1000 20D 10D -40+60

GYTA53 Fiber Optic Cable Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C) B1.1:Conventional fiber
G.652D B2: Zero dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3) B4: Main technical data for positive
dispersion shifted single-mode fiber

GYTA53 Direct Burial Fiber Optic Cable Loose Tube Stranded 12 Core Armoured Fiber Optic Cable

Competitive Advantages:

1.OEM fiber optic cable manufacturer .

2. Fiber brand : YOFC, CORNING,FUJIKURA .

3.Quality certification :ISO9001.ROSH.REACH.

4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects.

5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service.

Why choose us?

1.Introduction of foreign advanced production equipment and technology, have 12 year production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.

2.FAST SHIPPING from factory

3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.

4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.

5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;

6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise
