8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Optical Cable
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber Type :
G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Fiber Count :
2-24 Cores,2-288 Core,2/4/6/8/12 Core
Fiber Color :
Black,Blue,Grey,Customized,Green
Color :
Black,Customized
Jacket :
PE,MDPE,LSZH
Length :
1 Km 2km 3km Per Drum,2km Or Customized Length
OEM :
Available
Structure :
Unitube
Installation :
Self- Supporting Aerial,aerial,Aerial & Duct
Operating Temperature :
-40~75
Highlight :
GYTC8S Outdoor Fiber Optic Cable, 1km Outdoor Fiber Optic Cable, 8 Shape Outdoor Fiber Optic Cable
Description

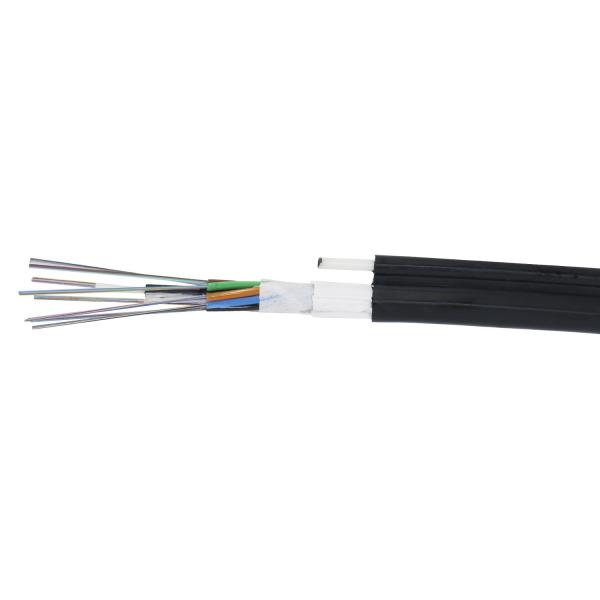

8 Shape 1km GYTC8S Outdoor Fiber Optic Cable

1~144 Core Fiber Optic Cable with 8 Shape Self Supporting Messenger GYTC8S

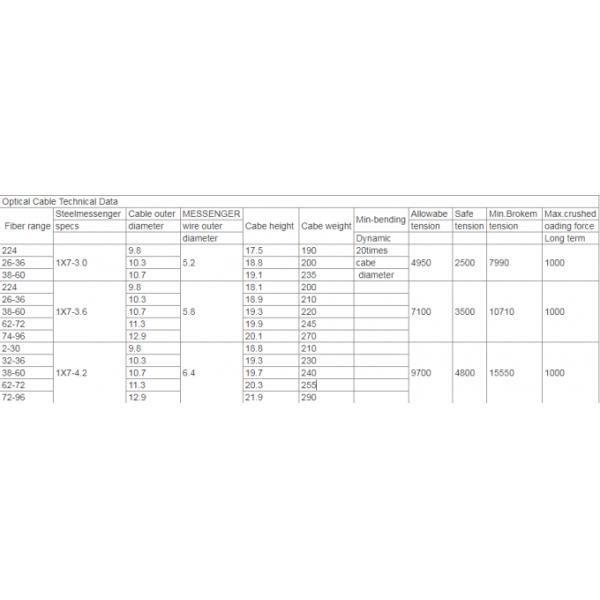

Technical data:
Fiber core Stranded Wire Cable diameter (mm) Messenger cable Diameter (mm) Cable Height (mm) Cable weight (kg/kg) Min.bend radius Max. Running tension (N) Safe running tension (N) Min.Breaking tension (N) Max.crush loading (N/100mm)
Dynamic Static Short term Long term
2-12 1×7-3.0 8.3 5.0 15.8 135 10D 20D 3000 1000 7990 2000 1000

8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM

8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM

8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM

Packaging & Delivery:
Packaging Details
wooden drum or as customized.
Delivery Time
According to the order quantity,usually within 1 week

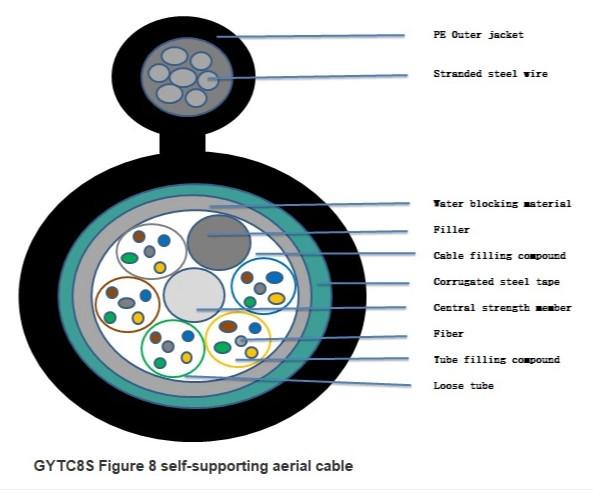

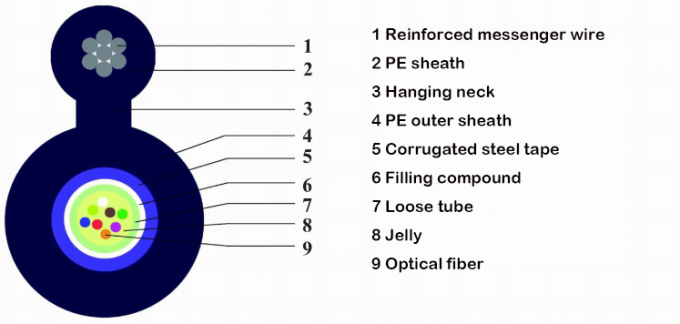

Description
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.APL Moisture barrier
5.Stranded wires as the self-supporting messenger
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· 100% cable core filling
· PSP enhancing moisture-proof

Standards:
GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 75°C
