Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Steel Armored Cable
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber Type :
G652D, G657A1, G657A2
Fiber Count :
12 Fibers
Central Strength Member :
FRP Or Steel Wire
Armor :
Corrugated Steel Tape
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
Multi Core Armoured Fiber Optic Cable, Outdoor 12 Core Steel Armored Cable, 12 Core Armoured Fiber Optic Cable
Description

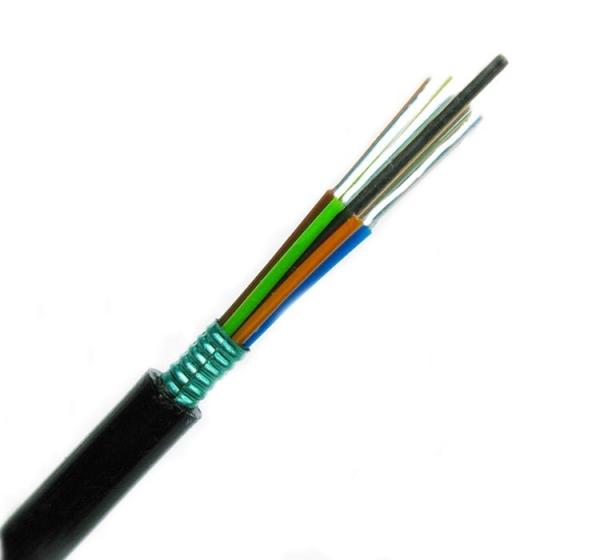

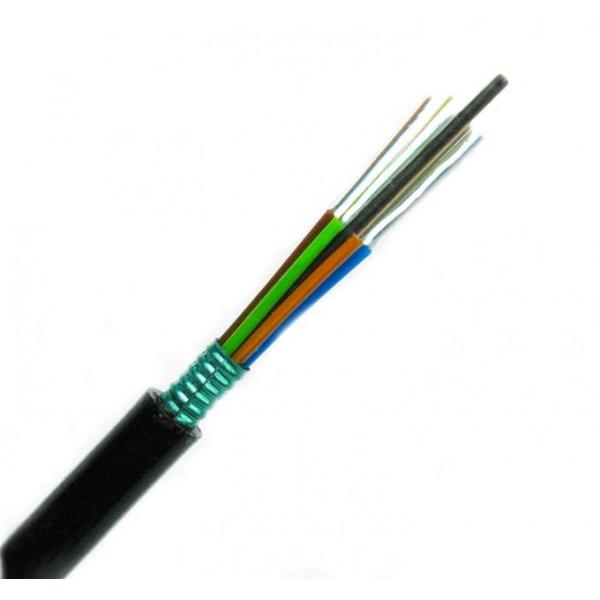

Multi Core Armoured Fiber Optic Cable / Outdoor 12 Core Steel Armored Cable

GYTS multi core armoured fiber optic cable outdoor 12 core steel armored cable

1. Description

The fiber,125μm,are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with water-resistant filling compound.
A FRP, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the centre of core as a non-metallic/metallic strength member.
Tubes(and fillers) are stranded around the strength member into a compact and circular cable core.
The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water
ingress.
The cable is completed with a PE sheath.

2.Specifications
2.1 General Specifications

Cable Type GYTS
Fiber Type SM
Application Long-distance communication, LAN
Recommended installation methods Aerial
Environment Outdoor
Temperature Range -40℃ to 70℃


2.2 Structure and Technical Specifications

Multi Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored CableMulti Core Armoured Fiber Optic Cable Outdoor 12 Core Steel Armored Cable

Fiber Count

Nominal Diameter

(mm)

Nominal
Weight

(kg/km)

Max Fiber

Per Tube

Max No. of

(Tubes+fillers)

Allowable Tensile Load

(N)

Allowable Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
12 9.7 96 6 5 1500 600 1800 800


Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

3. We produce and test the cable complying with the following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14


4. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
