Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Armored Fiber Optic Cable
Out Jacket :
LSZH/PE/PVC
Application :
Aerial
Fiber Type :
G652D
Type :
Outdoor Optical Cable Aerial
Oem :
Available
Installation :
Self- Supporting Aerial
Operating Temperature :
-40~75
Strength Member :
Two Steel Wire
Highlight :
Gyxtc8a Armored Fiber Optic Cable, Figure 8 Armored Fiber Optic Cable, Gyxtc8s Armored Fiber Optic Cable
Description

Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable Gyxtc8a Gyxtc8s

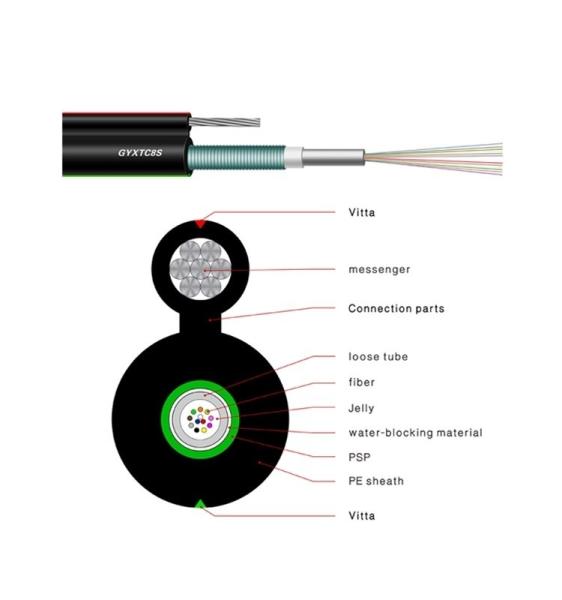

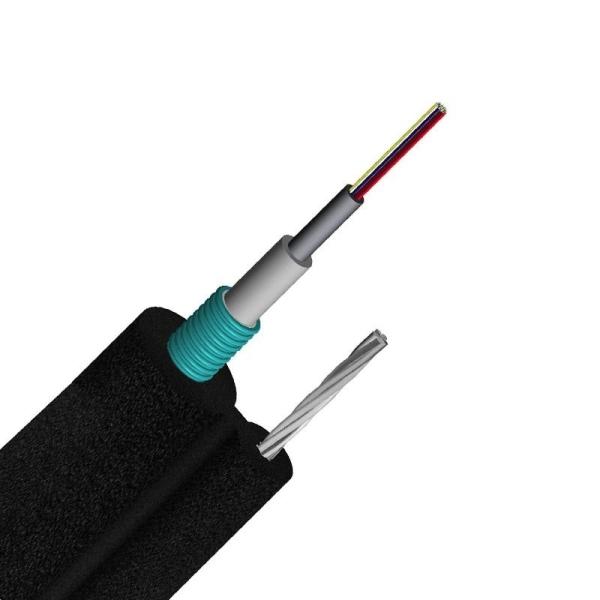

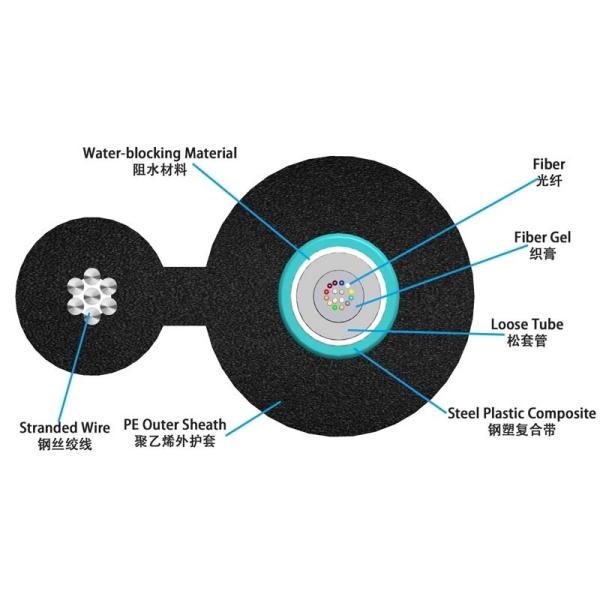

GYXTC8S is a typical outdoor use fiber optic cable for aerial applications; GYXTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYXTC8S fiber cables from 2-fiber type to 24-fiber type. GYXTC8A

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Spec:

Fiber Range outer diameter weight Min bending radius Alowable tension Max.crush loading force
Static Dynamic Short term Long term Short term Long term
2-36 10.4 90 10times cable diameter 20times cable diameter 1500 600 1000 300
38-60 11.2 105
62-72 11.7 115
74-96 13.4 150
98-120 15 190
122-144 16.6 230
146-216 16.9 240
218-240 19.3 305
242-288 21.5 375

Optical Cable Technical Data
Fiber range Steelmessenger Cable outer MESSENGER Cabe height Cabe weight Min-bending Allowabe Safe Min.Brokem Max.crushed
specs diameter wire outer tension tension tension oading force
diameter Dynamic Long term
224 1X7-3.0 9.8 5.2 17.5 190 20times 4950 2500 7990 1000
26-36 10.3 18.8 200 cabe
38-60 10.7 19.1 235 diameter
224 1X7-3.6 9.8 5.8 18.1 200 7100 3500 10710 1000
26-36 10.3 18.9 210
38-60 10.7 19.3 220
62-72 11.3 19.9 245
74-96 12.9 20.1 270
2-30 1X7-4.2 9.8 6.4 18.8 210 9700 4800 15550 1000

Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8SSteel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8SSteel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8SSteel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
