GYFTY Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable
GYFTY Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable
GYFTY Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable
GYFTY Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable
Specifications
Brand Name :
MingTong
Certification :
ISO
Place of Origin :
Dongguan CHINA
Price :
500-3000RNB/KM
Payment Terms :
L/C, T/T
Delivery Time :
It depends on the actual situation
Application :
Telecommunication, Aerial, Duct, Telecom, Network
Fiber Type :
G652D, G657A1, G657A2
Fiber Count :
2-24 Fibers
Central Strength Member :
Steel Wire
Armor :
Non-armored
Outer Jacket :
Black UV-and Moisture-resistant Polyethylene(PE)
Highlight :
GYXTY Outdoor Fiber Optic Wire, Loose Tube Outdoor Fiber Optic Wire, GYXTY Armored Outdoor Optical Cable
MOQ :
20km
Packaging Details :
Wooden scroll + cardboard box / Wooden scroll + wooden board
Supply Ability :
200km/Day
Name :
Outdoor Optical Cable
Description

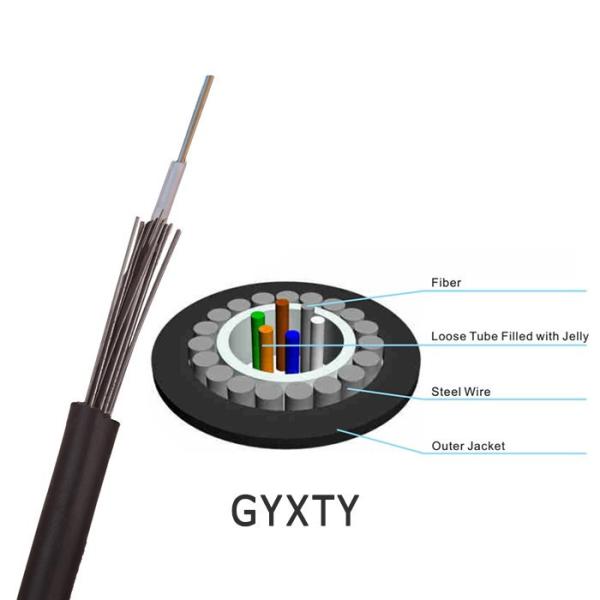

GYXTY Outdoor fiber optic cable central loose tube non-armored outdoor optical cable

1. Description

GYXTY Steel Wire Armored Uni Tube Single Jacket cable is designed with the flexibility and versatility required for today's most demanding installations, including aerial, Conduit and Duct. Overall steel wire armoring provide good tensile and crush resistant.

2.Specifications
2.1 optical characteristics

Fiber Type G.652 G.655 50/125 um 62.5/125 um
Attenuation 850 nm <3.0 dB/km <3.3 dB/km
(+20X) 1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm


2.2 Structure and Technical Specifications

GYFTY Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable

Fiber

Count

Nominal

Diameter

Nominal

Weight

Allowable Tensile Load

(N)

Allowable Crush Resistance

(N/100mm)
(mm) (kg/km) Short Term Long Term Short Term Long Term
2~12 7.5 74 3000 1000 1500 600
14~24 8 80 3000 1000 1500 600

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

3. We produce and test the cable complying with the following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14


4. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
