2-288 Fibers Armored Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable

1. Description

• The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Steel tape is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Application

• Adopted to Outdoor distribution fiber optic cable system .
• Suitable for aerial .duct pipeline, direct burried installation lashing menthod
• Long distance and local area network(LAN) communication system.

2. Features

• Good mechanical and temperature performance
• High strength looes tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:
  - Steel wire used as the central strength member
  - Loose tube filling compound
  - 100% cable core filling
  - APL moisture barrier
  - PSP enhancing moisture-proof
  - Water-blocking material

3.Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

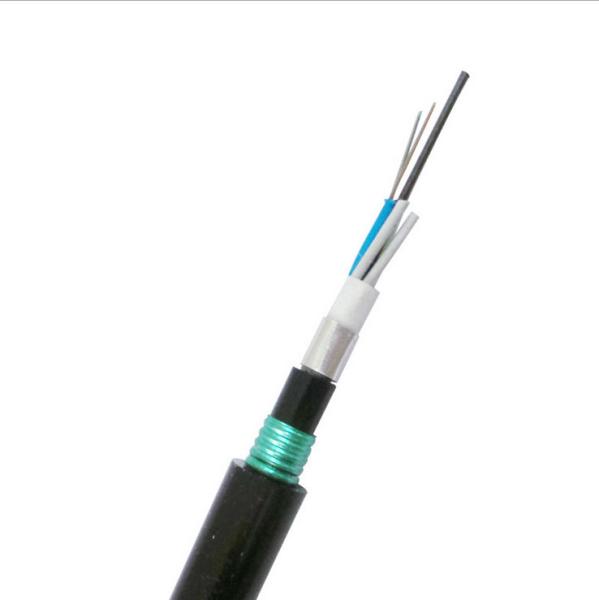

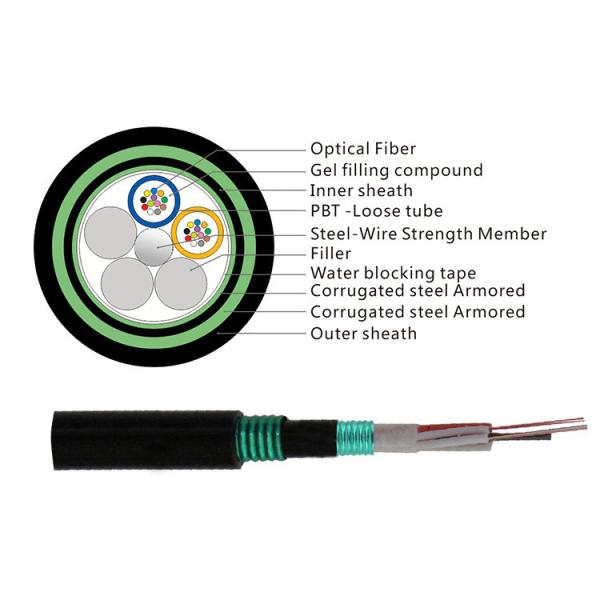

4. Structure and Product Pictures

5.Packing and Shipping

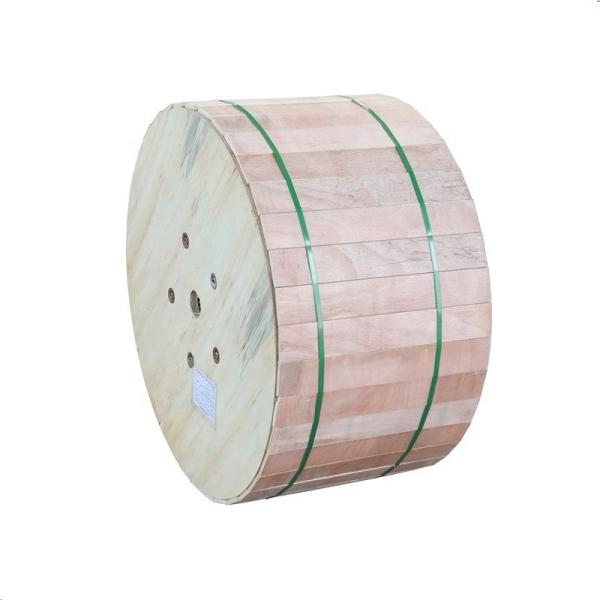

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
