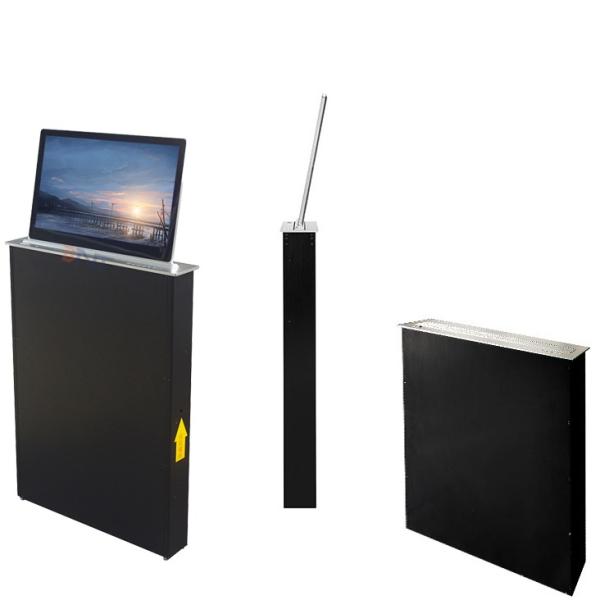

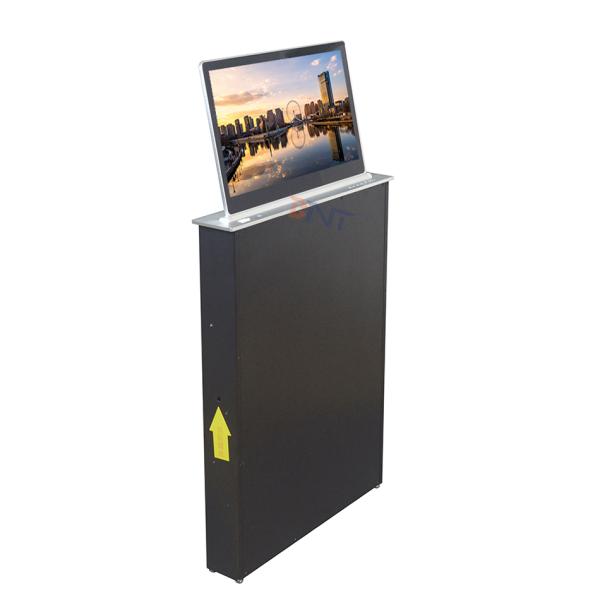

Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Specifications
Type :
Audio Conference System, Network Conference System, Video Conference System, Conference System
Function :
Presentation
Simultaneous Interpretation :
NO
Place of Origin :
Guangdong, China
Brand Name :
Boente
Model Number :
AML-15.6
Product Name :
pop up monitor
Material :
Aluminum alloy
Panel Thickness :
5mm
Panel Size :
450*80*5mm
Box Size :
432*71*600mm
Monitor Tilt Angle :
0-30 degree
Monitor :
15.6 inch FHD screen
Resolution :
1920*1080 (16:9)
Interfaceq :
H-DMI+USB+RS232 I/O
Color :
Black/silver
Description
Product Description
Introduction:

Lcd lift is designed as advance hiding equipment with FHD screen for audio video system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size. Controlled by touch switch, remote control, rs232/485 central control system, the screen could be rising up form the conference tables automatically to present the workable

screen by the lift driving.

It is widely use in conference system, audio video conference system, paperless conference system,etc.


Model No.
AML-13.3
AML-15.6
AML-17.3
AML-18.5
AML-21.5
AML-23.6
Monitor
13.3 inch FHD screen
15.6 inch FHD screen
17.3 inch FHD screen
18.5 inch HD screen
21.5 inch FHD screen
23.6 inch FHD screen
Material
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Panel Size
400*80*5mm
450*80*5mm
490*80*5mm
515*80*5mm
600*80*5mm
650*80*5mm
Box Size
382*145*655mm
432*147*650mm
473*147*650mm
497*147*650mm
582*71*730mm
632*71*730mm
Monitor Pitch Angle
20 Degree
20 Degree
20 Degree
20 Degree
20 Degree
20 Degree
Adjustable Angle
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
Panel Color
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Interface
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
Protection System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection




All-aluminum structure chassis, small size, high-quality aluminum profile and CNC carved processing, elegant appearance. Mechanical spring anti-pinch design, safety and humanization, and stable opening and closing of the door. Smart hidden desk pop up monitor lift mechanism, Controlled by touch switch, remote control and RS232 central control system for video conference system, paperless conference system, conference AV solution.


Details Images
Conference system solution
Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video
conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different

monitor size. audio video conference system, paperless conference system,etc.


Standard English language operating system, other national languages ​​can be set as needed.

Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection


Full aluminum alloy design
Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, )



Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically.


Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.






Screen pitch angle 0-30 degree


Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection.


The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel




Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Anti-pinching design

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.


Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
The lifting system adopts special ultra-quiet gears, racks, and non-steel materials, which are quiet, stable and reliable.


After the screen rises, write vigorously on the screen without shaking to ensure the accuracy and continuity of touch positioning.
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
The elevation stroke is stable and trouble-free for life.
The circuit board is highly integrated, easy to use, and the circuits structure is completely hidden, safe, and reduces operating failures.



The sinking design of the signal and control connection

port facilitates the installation of the connection line.
Buttons


Buttons on panel.


1. With buttons for monitor to lift up /down
2. With buttons for adjust the monitor tilt angle forward/backward you want

3. With button for setup menu(brightness of the monitor, color, language, etc)

4. With buttons for switch the VGA/HDMI input signal(When there are HDMI and VGA 2 way signal input)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection


Buttons on panel.


With USB connectors on panel, could add one USB more.
With power switch on panel, for monitor power on/off



Buttons on the panel all supported customized made.






Connectors on lift case
VGA/HDMI for video input, USB connectors for data input or touch screen, RS232/RS485 for central control, Colorful cable coil for computer switch extension cable (Red & black for LED, Yellow & green for switch)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Optional Integration
We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Optional with touch screen .
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
With built in microphone
(monitor&mic work together/separately)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
With built in double screen
(front & back screen same size)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
With built in PC computer
(for paperless conference system)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
With built in back 10.1" screen
(for name display)
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
With built in front camera
Engineering Case

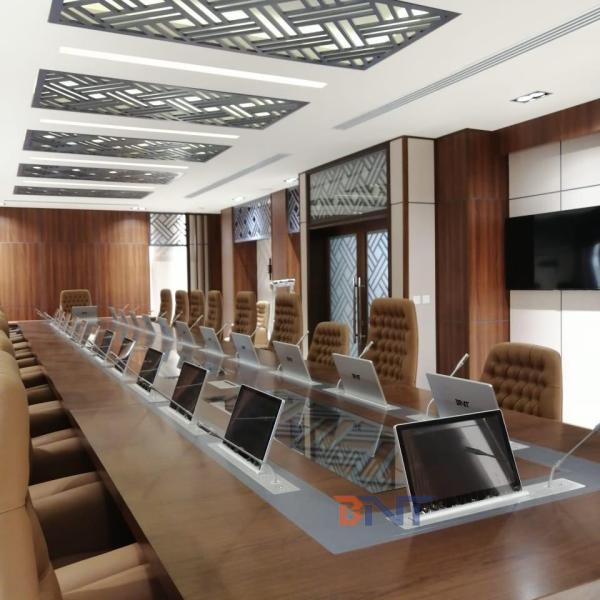

Conference AV solution with BNT LCD Monitor Lifts
BNT could offer one stand conference system solution devices

Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
Related Products

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.
→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.
→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection

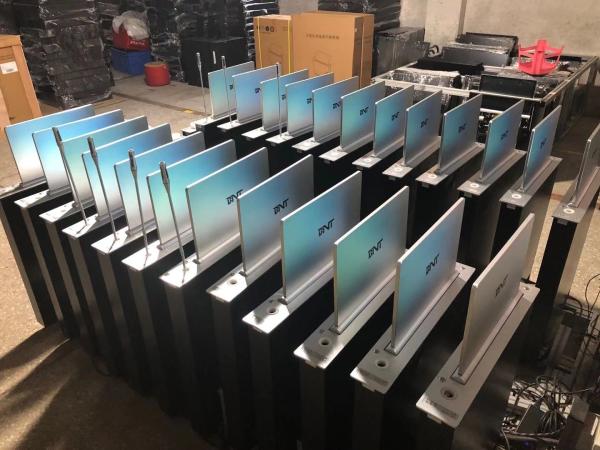

Factory
Conference Table Motorized Retractable Pop up Monitor LCD Monitor Lift With Anti-pinch Hand Protection
