Specifications
Type :
Audio Conference System, Network Conference System, Video Conference System, Conference System
Function :
Presentation
Simultaneous Interpretation :
NO
Place of Origin :
Guangdong, China
Brand Name :
Boente
Model Number :
BLM-17.3
Style :
retractable monitor lift
Material :
aluminum silver anodized
Panel Thickness :
5mm
Panel Size :
558*88*5mm
Viewing Angle :
Horizontal 160 / Vertical 140 degree
Color :
Aluminum Silver / Aluminum Matte Black
Box Size :
538*75*605mm
Monitor Tilt Angle :
15/35/45 degree
Monitor :
Full HD 17.3 LED Screen
Resolution :
1920*1080 (16:9)
Description
Product Description
Introduction:
Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size.
Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.

Model No.
AML-13.3M
AML-15.6M
AML-17.3M
AML-18.5M
AML-21.5M
AML-23.6M
Monitor
13.3 inch FHD screen
15.6 inch FHD screen
17.3 inch FHD screen
18.5 inch HD screen
21.5 inch FHD screen
23.6 inch FHD screen
Material
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
MIC Lifting Type
Together/ Separate
Together/ Separate
Together/ Separate
Together/ Separate
Together/ Separate
Together/ Separate
Panel Size
585*80*5mm
615*80*5mm
655*80*5mm
680*80*5mm
765*80*5mm
790*80*5mm
Box Size
460*145*655mm
525*147*650mm
575*147*650mm
655*147*650mm
752*71*730mm
772*71*730mm
Monitor Pitch Angle
20 Degree
20 Degree
20 Degree
20 Degree
20 Degree
20 Degree
Adjustable Angle
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
0-30 Degree
Panel Color
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Black/Sliver
Interface
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
HDMI+USB+RS 232 I/O
Protection System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
With Anti-pinch System
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen

The motorized monitor lift has the above two colors to choose from, of course, you can also choose the color you want to customize. For more information, please contact customer service.
Details Images
Conference system solution
Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video
conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different
monitor size. Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.

Standard English language operating system, other national languages ​​can be set as needed.
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen

Full aluminum alloy design
Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, )

Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically.

Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.



Screen pitch angle 0-30 degree

Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection.

The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel


Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.
We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.
Buttons

Buttons on panel.

1. With buttons for monitor to lift up /down
2.With buttons for adjust the monitor tilt angle forward/backward you want
3.With button for setup menu(brightness of the monitor, color, language, etc)
4. With buttons for switch the VGA/HDMI input signal(When there are HDMI and VGA 2 way signal input)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen

Buttons on panel.

With USB connectors on panel, could add one USB more.
With power switch on panel, for monitor power on/off

Buttons on the panel all supported customized made.



Connectors on lift case
VGA/HDMI for video input, USB connectors for data input or touch screen, RS232/RS485 for central control, Colorful cable coil for computer switch extension cable (Red & black for LED, Yellow & green for switch)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Optional Integration
We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Optional with touch screen.
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
With built in microphone
(monitor&mic work together/separately)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
With built in double screen
(front & back screen same size)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
With built in PC computer
(for paperless conference system)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
With built in back 10.1" screen
(for name display)
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
With built in front camera
Engineering Case

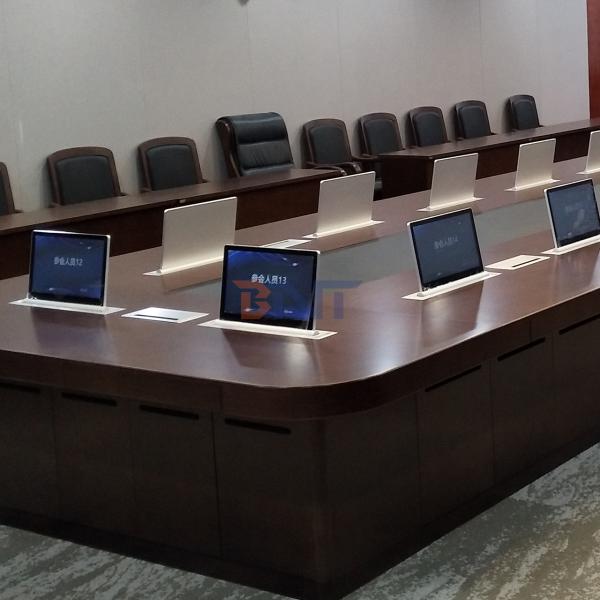

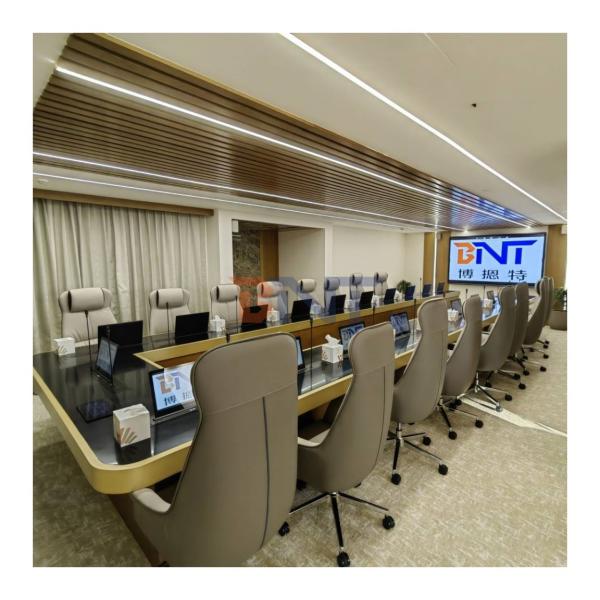

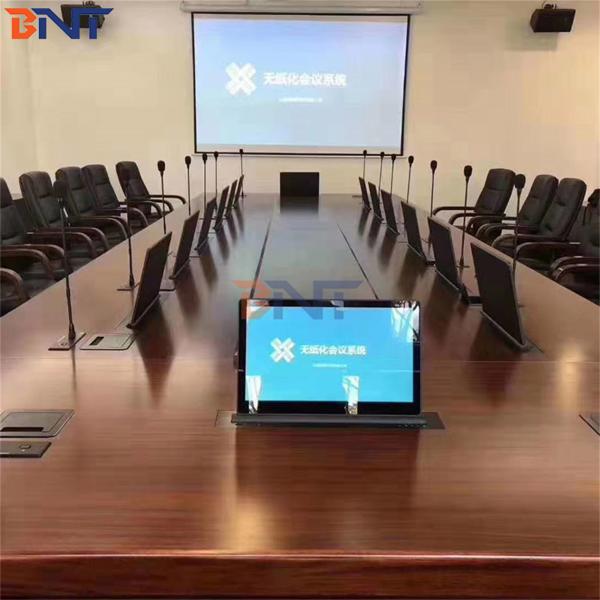

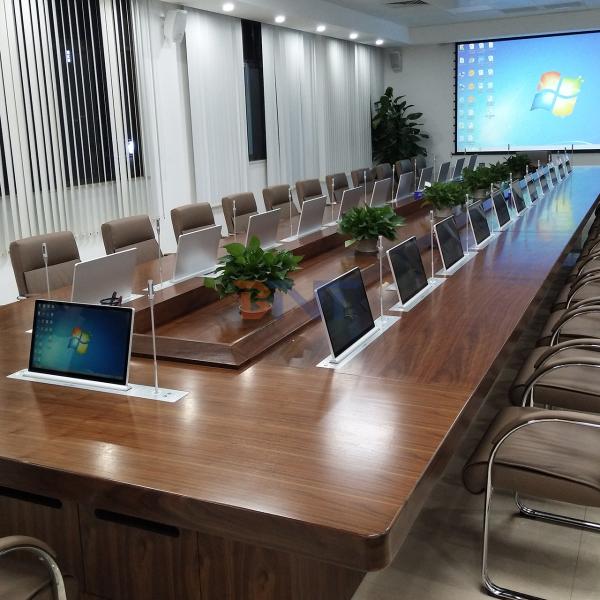

Conference AV solution with BNT LCD Monitor Lifts
BNT could offer one stand conference system solution devices
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Conference Table Pop up LCD Monitor Lift BNT 17 3 Retractable Touch Screen
Related Products

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.
→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.
→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
