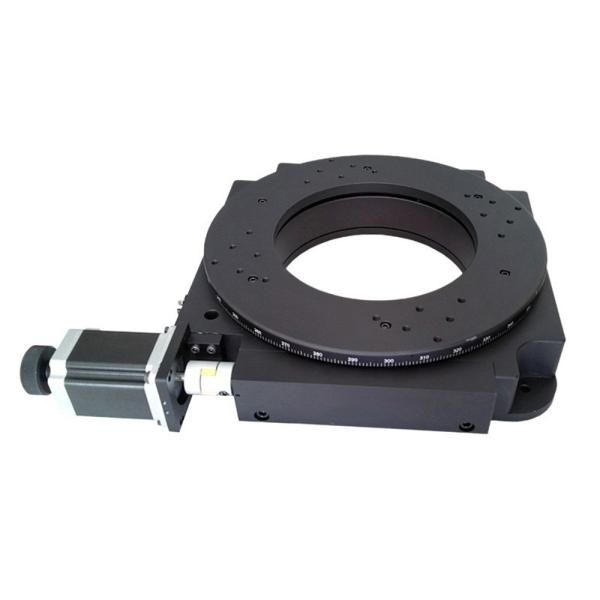

360 Degree Continuous Motorized Rotation Stage With Stepper Motor

Precision electric rotary stage (worm gear): PT-GD205

This product adopts new structure and new technology. After strict testing, the key indicators have reached the level of similar products. The product is mainly used in laser precision machining, three-dimensional scanning measurement system and other application fields.

The electric rotary table is a device used in the microscope to make the object can be observed from multiple directions and angles. The main scope of use is in the microscope for precision requirements of very strict equipment, so for its precision requirements than the general equipment to be more strict, but also in order to achieve the measurement value and avoid the loss and impact of measurement errors, to a certain extent to avoid the occurrence of accidents.

Electric rotary stage product features

1. Stepper motor is used to drive, realizing automatic Angle adjustment.

2. Worm gear and worm are made of wear-resistant materials and treated by special technology, so they have high wear resistance and high precision and reliability of rotary table.

3. Adopt imported high-precision and high-rigidity shafting, with high rotation accuracy, large bearing and stable operation.

4. The turntable outer ring has scale, intuitive and convenient, with physical zero.

5. Standard interface, convenient signal transmission.


Electric rotary stage product specification

Item Number

PT-GD205

Structure Specifications

Rotation Range

360° of Continuous Rotation

Diameter of Platform

Ø300mm

Drive Mechanism

Worm Gear

Worm Gear Ratio

288 : 1

Stepper Motor (1.8°)

57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

Material – Finish

Aluminum Alloy - Black-Anodized

Load Capacity

55 kg

Weight

7.9 kg

Accuracy Specifications

Design Resolution

0.01°=36”, Non-MS Driver

0.0005°=1.8”, 20MS Driver

Rotational Velocity (Max)

25°/sec

Repeatability

0.005°=18”

Absolute On-Axis Accuracy

0.01°=36”

Run-Out of Top Plate

10μm

Backlash

0.005°=18”

Eccentricity

20μm

Lost Motion

0.005°=18″

Parallelization

100μm

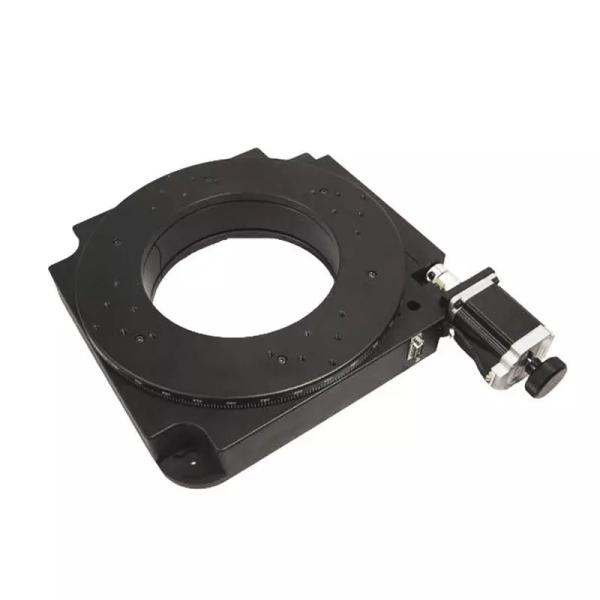

Product diagram

360 Degree Continuous Motorized Rotation Stage With Stepper Motor

360 Degree Continuous Motorized Rotation Stage With Stepper Motor
