Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Aluminum Alloy Miniature Rotary Stage Dia 100mm High Load Capacity,
Specifications
Brand Name :
PDV
Model Number :
PX110-100
Place of Origin :
Beijing, China (Mainland)
MOQ :
1piece
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Delivery Time :
1-2 weeks
Diameter of Platform :
Ø100mm
Drive Mechanism :
Worm Gear
Worm Gear Ratio :
180 : 1 or 90:1
Load Capacity :
45 kg
Weight :
1.7 kg
Rotational Velocity (Max) :
25°/sec
Parallelization :
80 μm
Material :
Aluminum Alloy
Description

Dia 100mm 360 Degree Motorized Rotation Stage , Electric Rotary Stage , High Percision Linear Stage

Precision electric rotating table: PX110-110

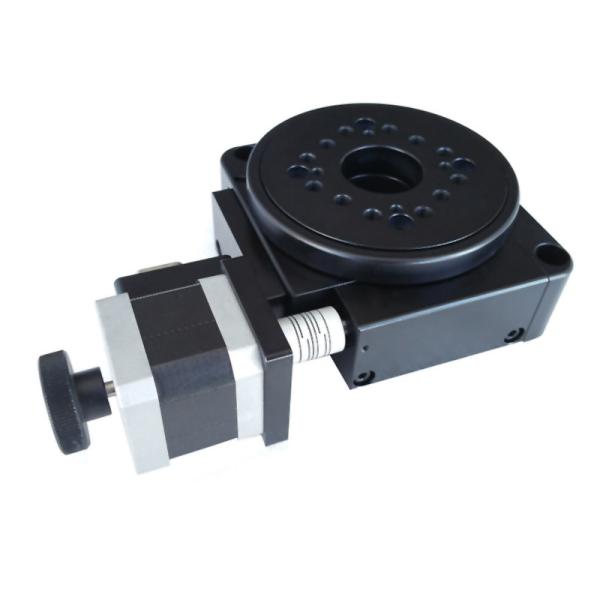

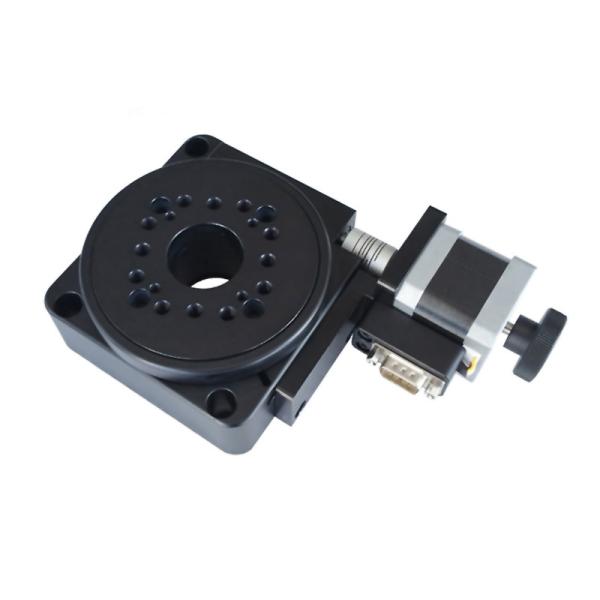

PX110-110 precision electric rotating table is an electric rotating table product with high precision. It adopts refined worm gear and cross roller shaft ring to ensure high rotating precision, and key indexes such as end jump and diameter jump reach the advanced level of the peer. The product has a high load capacity, can be used in horizontal or even vertical use, can be combined multi-dimensional use.

Product features

Standard stepper motor and DB9 interface, choose to controller flexibility ,We also can provide fully customized motion systems .

Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily.

High precision Worm gear design for high accuracy, loading and long working time.

Forward and reverse rotate are possible.

The stage could use in vertical and assemble with other stages.

Prototype stepper motor42 stepper motor (1.8°). Servo motor available for replacement on request.

Fine steel rotary shoe, high accuracy, massive loading capacity and long using life.

Fine grinding worm drive with comfortable movement and backlash can almost ignored.

Clearance elimination design.

The motor is connected with the worm via high quality elastic coupling, synchronized drive without noise.

Scaling on the outerring of the platform, easy scale reading.



Product specification

Item Number

PX110-100

Structure Specifications

Rotation Range

360° of Continuous Rotation

Diameter of Platform

Ø100mm

Drive Mechanism

Worm Gear

Worm Gear Ratio

180 : 1 or 90:1 (Choose one of the two)

Stepper Motor (1.8°)

42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

Material – Finish

Aluminum Alloy - Black-Anodized

Load Capacity

45 kg

Weight

1.7 kg

Accuracy Specifications

Design Resolution

0.01°, Non-MS Driver

0.0005°=1.8”, 20MS Driver

Rotational Velocity (Max)

25°/sec

Repeatability

0.005°=18”

Absolute On-Axis Accuracy

0.01°=36”

Run-Out of Top Plate

15μm

Backlash

0.005°=18”

Eccentricity

5μm

Lost Motion

0.05°=18″

Parallelization

80μm

Product diagram
