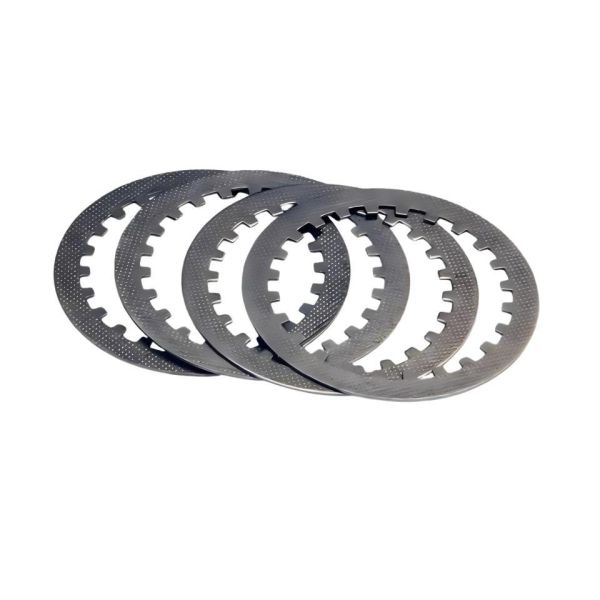

CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
CG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
CG125 clutch friction plates 4-piece steel set
Material :
Low-carbon cold-rolled steel (black passivation treatment)
Specifications and dimensions :
Inner diameter 91mm / Outer diameter 119mm / Thickness 1.5mm
Set quantity :
4 pieces/set (CG125 standard configuration)
Surface treatment :
Anti-slip textured stamping Anti-rust treatment
flatness error :
≤0.02mm
Adaptive structure :
Internal spline (fits small clutch)
Packaging type :
Coloured bags Coloured boxes/white bags
Warranty period :
One year
Customised service :
Colour bags/colour boxes (leave your contact information for more details)
Description

CG125 clutch friction plates 4-piece steel plate set, moulded according to CG125 wet clutch standards, inner diameter 91mm / outer diameter 119mm / thickness 1.5mm, inner spline perfectly meshes with the clutch hub, directly replacing old plates without modification; made from high-quality low-carbon cold-rolled steel, surface treated for rust resistance, hardness reaches HV200-250, deformation-resistant, wear-resistant, able to withstand frequent clutch pressure impact; surface pressed with anti-slip texture, closely fits clutch wooden plates, delivering power without play, solving gear shifting jerks and power slippage caused by old steel plates deforming and blackening; surface undergoes blackening and passivation double treatment, salt spray resistance ≥48 hours, suitable for high-temperature, oily engine environments, long-term use without rusting; combined with CG125 clutch wooden plates (5-piece set) to form the standard "4 steel plates 5 wooden plates" set, ready for direct assembly without separately matching specifications; steel plate flatness error ≤0.02mm, minimal wear on clutch large teeth and hub during operation, indirectly extending the life of the entire clutch systemCG125 Clutch Friction Plates 4 Piece Steel Set Surface Treatmented
