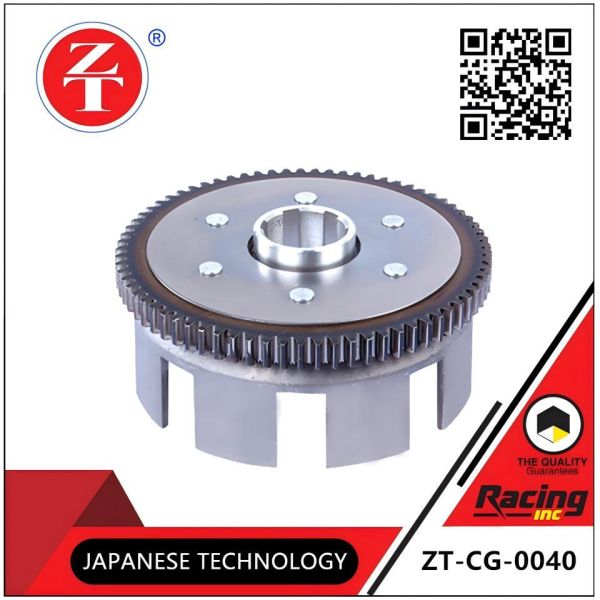

CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
CG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
Specifications
Brand Name :
ZT
Model Number :
CG125
Place of Origin :
CHINA
Product Name :
Clutch large gear
Main material :
No. 45 carbon steel (integrally forged, tooth surface quenched)
Core specifications :
8 grooves 73 teeth, compatible with CG125 series standard clutch system
Key dimensions :
Outer diameter approximately 150mm, tooth outer diameter φ119mm, spline hole diameter 28mm, thickness approximately 30mm
Surface treatment :
High-temperature blackening Anti-rust oil coating
Packaging type :
Coloured bags Coloured boxes/white bags
Warranty period :
One year
Customised service :
Custom coloured bags/custom coloured boxes (please leave your contact information for more details)
Description

CG125 motorcycle clutch large gear, 1:1 replica of the CG125 original specification, 8-slot 73-tooth standard design, spline size and mounting holes match the crankshaft and clutch small gear 100%, directly replacing the old parts without modification; teeth are precisely machined by CNC, tooth gap ≤0.02mm, uniform engagement depth, power transmission without play or slipping, ensuring smooth starting and shifting; the overall structure has been tested for dynamic balance and can withstand the centrifugal force of high-speed engine operation, preventing tooth deformation or breakage under heavy load or climbing; comes with a spline washer and fixing bolts, align with the crankshaft interface and simply clamp and tighten, no special tools required, easy for beginners to install; surface treated with blackening and anti-rust oil for dual protection, salt spray test ≥72 hours, suitable for high-temperature and oily engine environments, long-term use without rustingCG125 Motorcycle Clutch Large Gear 73 Tooth Clutch Drive Plate
