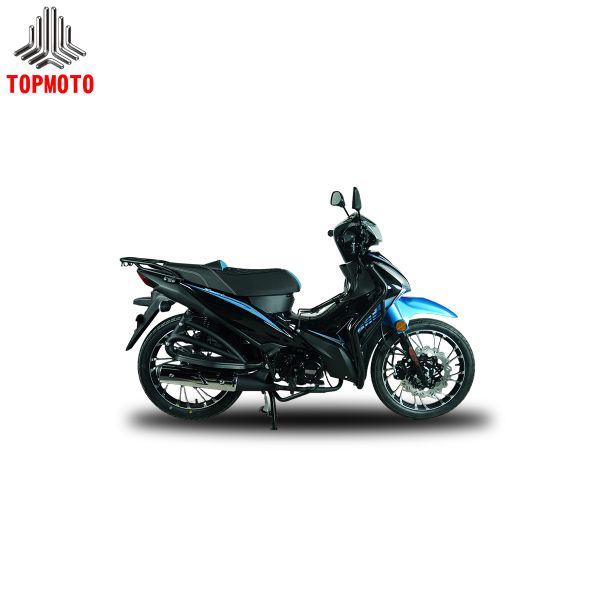

107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
107cc Underbone Motorcycle with Chain Drive, High Gear Protection and Semi-Automatic Clutch for Urban Commuting
Specifications
Brand Name :
ZFYC
Model Number :
KX-BB3
Place of Origin :
CHINA
MOQ :
100
Price :
Price negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Packaging Details :
CKD,SKD,CBU
Colors :
Available in multiple colors
Engine Displacement :
Multiple displacements available
Description
107cc Urban Motorcycle with Chain Drive
Designed for extended urban commuting, this underbone motorcycle delivers exceptional fuel efficiency and cost-effective long-term operation. The advanced engineering ensures optimal performance while minimizing operating expenses.
Fuel Efficiency & Economic Benefits
The 107cc single-cylinder horizontal air-cooled engine features precise bore and stroke dimensions with a 9.1:1 compression ratio, ensuring complete fuel combustion and remarkably low fuel consumption. Compared to similar-class models, this motorcycle significantly reduces fuel usage, making daily commuting affordable without excessive fuel expenses.
Technical Specifications
Engine TypeSingle-cylinder, horizontal, air-cooled
Bore × Stroke52.4 mm × 49.5 mm
Displacement107 cc
Compression Ratio9.1 : 1
Max. Power5.2 kW @ 8,000 rpm
Max. Torque7.2 N*m @ 5,000 rpm
Ignition SystemCDI
Starting SystemElectric & kick start
Magneto12V, 8-pole, full-wave AC
Transmission4-speed, semi-automatic clutch (with high-gear protection)
Final DriveChain drive
1st Gear3.273
2nd Gear1.938
3rd Gear1.35
4th Gear1.043
Primary / Final Reduction Ratio4.059 / 2.714
Front SuspensionTelescopic hydraulic fork
Rear SuspensionDual shock absorbers
Front BrakeDisc brake
Rear BrakeDrum brake
Front Tire2.50-17 tubeless tire (optional: deep tread tire)
Rear Tire2.75-17 tubeless tire (optional: deep tread tire)
Front WheelSpoked wheel (optional aluminum wheel)
Rear WheelSpoked wheel (optional aluminum wheel)
Rear CarrierOptional rear carrier / large rear carrier
Center CarrierOptional
Overall Dimensions (L × W × H)1940 × 720 × 1130 mm
Wheelbase1250 mm
Seat Height770 mm
Ground Clearance150 mm
Net Weight95 kg
Max. Load Capacity150 kg
Max. Speed75 km/h
Climbing Ability≥ 12°
Fuel Tank Capacity3.1 L
Helmet Box CapacityFull-face helmet
HeadlightLED lens type, 12V 8W (low beam) / 12W (high beam)
TaillightLED 1.2W (brake) / 1.2W (position)
Front Turn SignalsDynamic indicators, halogen 10W / LED 0.8W
Rear Turn SignalsDynamic indicators, halogen 10W / LED 0.8W
Logo Light0.3W
Battery12V 5Ah, maintenance-free gel battery
USB ChargerUSB, 2A
Extended Range & Low Maintenance
The 3.1L fuel tank combined with ultra-low fuel consumption provides a cruising range exceeding 100 kilometers, eliminating frequent refueling stops and reducing overall fuel costs. The maintenance-free 12V 5Ah gel battery delivers stable power without requiring regular maintenance, saving on replacement and upkeep expenses.
Built with reliable components and low failure rates, this motorcycle requires only basic maintenance such as regular engine oil and tire checks. The simplified maintenance process ensures extremely low upkeep costs, making it ideal for both household use and commercial transportation while effectively controlling long-term expenses.
