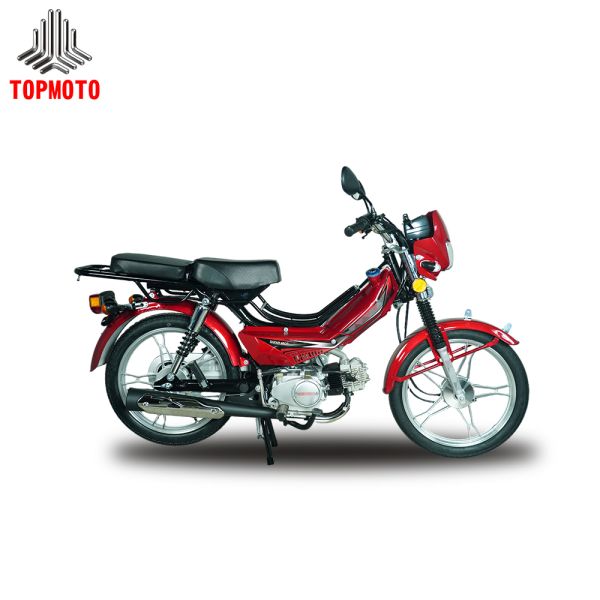

97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
97cc Engine Underbone Motorcycle with LED Headlight and Rear Shelf & Helmet Box
Specifications
Brand Name :
ZFYC
Model Number :
D3
Place of Origin :
CHINA
MOQ :
100
Price :
Price negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Packaging Details :
CKD,SKD,CBU
Colors :
Available in multiple colors
Engine Displacement :
Multiple displacements available
Description

Comes with a full set of High-Brightness LED Headlights with 12W Low/High Beam for exceptional night visibility. Upgraded Front and Rear LED Turn Signals and Brake Lights ensure high visibility and safety. A 12V Maintenance-Free Gel Battery and integrated USB Charging Port guarantee reliable power on every ride. Spoked wheels are available with an upgrade to Aluminum Alloy rims, blending retro style with modern strength for long-lasting durability.

Specification Details
Engine Type 97cc, Air-Cooled, Single Cylinder, EFI
Bore × Stroke 50 × 49.5 mm
Displacement 97 cm³
Compression Ratio 9.1:1
Max Power 4.5 kW @ 8000 ± 500 rpm
Max Torque 6.5 N·m @ 6000 ± 500 rpm
Ignition CDI, Electronic Fuel Injection
Starting System Kick start & Electric start
Magneto 12V DC
Gear & Clutch 4-speed, Automatic Clutch (with high gear protection)
Transmission Mode Chain drive
1st Gear Ratio 3.273
2nd Gear Ratio 1.938
3rd Gear Ratio 1.35
4th Gear Ratio 1.043
Primary / Final Drive Ratio 4.059 / 2.714
Front Suspension Hydraulic Fork
Rear Suspension Twin Shock Absorbers
Front Brake Disc Brake
Rear Brake Drum Brake / Optional: Expandable Shoe
Front Tire 2.50-16, Standard / Optional: Deep Tread Tire
Rear Tire 2.75-16, Standard / Optional: Deep Tread Tire
Front Wheel Spoked / Optional: Aluminum Wheel
Rear Wheel Spoked / Optional: Aluminum Wheel
Rear Shelf Optional: Rear Shelf / Large Shelf
Middle Shelf Optional: Yes / Default: No
Length × Width × Height 1860 × 700 × 1270 mm
Wheelbase 1220 mm
Seat Height 780 mm
Min Ground Clearance 130 mm
Net Weight 90 kg
Max Load 150 kg
Max Speed 75 km/h
Climbing Ability ≥12°
Fuel Tank Capacity 3.1 L
Helmet Box Capacity Fits full helmet
Headlight LED Lens, 12V 8W (Low Beam) / 12W (High Beam)
Taillight LED 1.2W (Brake Light) / 1.2W (Position Light), Standard 21W / 5W
Front Indicators Standard 10W / LED 0.8W
Rear Indicators Standard 10W / LED 0.8W
Logo Light Standard 0.3W
Battery 12V 5Ah, Maintenance-Free Gel Battery
Charger USB 2A
