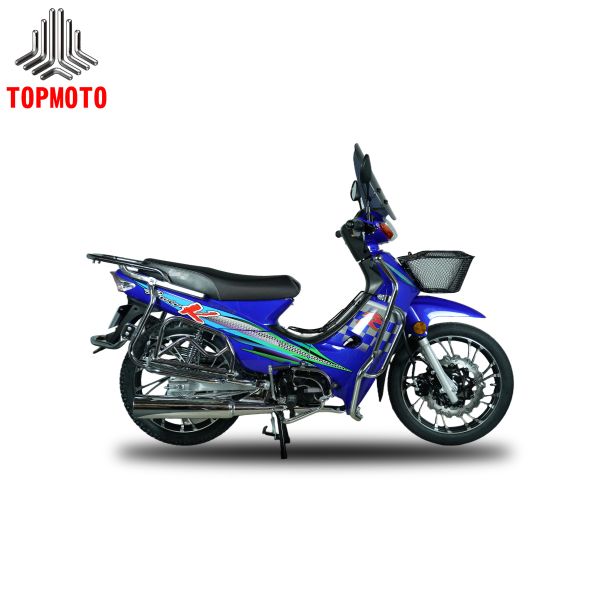

107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
Specifications
Brand Name :
ZFYC
Model Number :
ST1-DB
Place of Origin :
CHINA
MOQ :
100
Price :
Price negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000Unit/Month
Delivery Time :
5-12 weeks
Packaging Details :
CKD,SKD,CBU
Colors :
Available in multiple colors
Engine Displacement :
Multiple displacements available
Description

The motorcycle features telescopic hydraulic front fork and dual rear spring shock absorbers for a smooth and comfortable ride. Front and rear drum brakes provide responsive braking, paired with anti-slip tires to ensure stable and safe riding on urban and rural roads.

Item Description
Engine Type Single-cylinder, horizontal engine
Bore × Stroke 52.4 mm × 49.5 mm
Displacement 107 cc
Compression Ratio 9.1 : 1
Max. Power 5.2 kW @ 8,000 ± 500 rpm
Max. Torque 7.2 N·m @ 5,000 ± 500 rpm
Ignition System CDI ignition
Starting System Electric & kick start
Magneto 6-pole magneto, full-wave rectification
Transmission 4-speed, semi-automatic clutch
Final Drive Chain drive
Front Suspension Telescopic hydraulic fork
Rear Suspension Dual spring shock absorbers
Front Brake Drum brake
Rear Brake Drum brake
Front Tire 2.50-17
Rear Tire 2.75-17
Front Wheel Spoked wheel / Optional: aluminum wheel
Rear Wheel Spoked wheel / Optional: aluminum wheel
Rear Carrier Yes
Center Carrier Yes
Overall Dimensions (L×W×H) 1900 × 700 × 1070 mm
Wheelbase 1220 mm
Seat Height 740 mm
Ground Clearance 110 mm
Net Weight 86 kg
Max. Load Capacity 150 kg
Max. Speed 80 km/h
Climbing Ability ≥ 27°
Fuel Tank Capacity 3.5 L
Helmet Box No
Headlight 12V 35W
Taillight Combined taillight, 12V 21W / 10W
Front Turn Signals 12V 5W
Rear Turn Signals 12V 5W
License Plate Light 12V 5W
Battery 12V 5Ah, maintenance-free

107cc Engine 4-Speed Semi-Automatic Lightweight Underbone Motorcycle for Commuting and Enduro Riding
