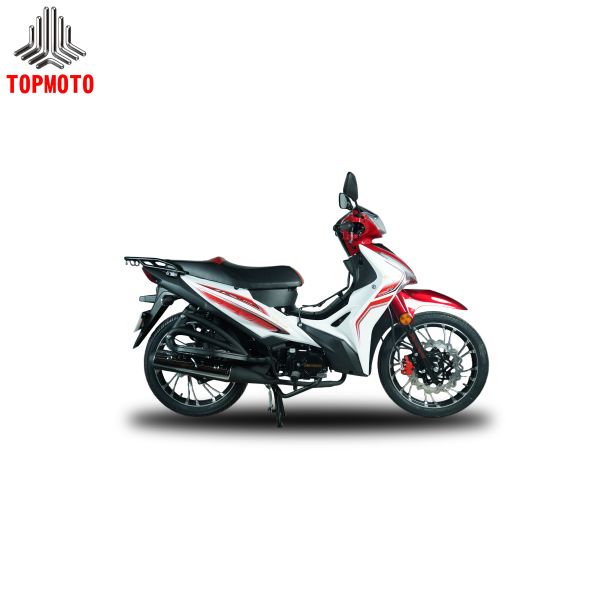

95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
95kg Lightweight 107cc Underbone Motorcycle with 4-Speed Semi-Automatic Transmission for Easy Commuting
Specifications
Brand Name :
ZFYC
Model Number :
KX-RW
Place of Origin :
CHINA
MOQ :
100
Price :
Price negotiable
Payment Terms :
L/C,T/T
Supply Ability :
1000Unit/Month
Delivery Time :
5-12 weeks
Packaging Details :
CKD,SKD,CBU
Colors :
Available in multiple colors
Engine Displacement :
Multiple displacements available
Description

For newbies who have just come into contact with motorcycles, an easy-to-operate and easy-to-get-started model is very important. This underbone motorcycle is specially designed for newbies, lowering the riding threshold, allowing newbies to quickly master riding skills and easily start their riding journey. The vehicle adopts a 4-speed semi-automatic clutch transmission with high-gear protection, which is simple and easy to operate. There is no need to frequently squeeze the clutch, and the gear can be switched by simply shifting gears gently, avoiding stalling, jamming and other problems caused by improper operation of newbies, and greatly reducing the learning difficulty.

Specification Details
Engine Type & Cylinder Arrangement Single-cylinder, vertical, air-cooled
Displacement 271.3 cc
Bore × Stroke 75 × 61.4 mm
Compression Ratio 9.29:1
Max Power 16 kW @ 8500 rpm
Max Torque 22 N·m @ 6500 rpm
Ignition CDI Communication
Starting System Electric / Kick Start
Magneto 12V, 8-pole AC
Clutch Manual Wet Multi-Plate
Gearshift Constant Mesh, Two-Stage Transmission, 6-Speed
Transmission Mode Chain Drive
Gear Ratios 1st: 2.583 (31/12)

2nd: 1.857 (26/14)

3rd: 1.437 (23/16)

4th: 1.167 (21/18)

5th: 1.000 (19/19)

6th: 0.857 (18/21)
Primary / Final Drive Ratio 3.09 (68/22) / 3.02 (13/43)
Front Suspension Hydraulic Disc Fork
Rear Suspension Single Shock Absorber
Front Brake Disc Brake
Rear Brake Drum Brake
Front Tire 4.6-17 Deep Tooth Off-Road
Rear Tire 5.1-17 Deep Tooth Off-Road
Front Wheel Standard Mesh Wheel (Iron)
Rear Wheel Standard Mesh Wheel (Iron)
Rear Carrier Aluminum Rear Grab Handle + Small Iron Shelf
Middle Shelf None
Overall Dimensions (L×W×H) 2400 × 850 × 1200 mm
Wheelbase 1400 mm
Seat Height 1000 mm
Min Ground Clearance 350 mm (engine clearance)
Net Weight 142 kg
Max Load 150 kg
Max Speed 115 km/h
Climbing Ability 28°
Fuel Tank Capacity 11 L
Helmet Box Capacity None
Headlight LED, 12V, 5W
Taillight 12V, 5W / 21W
Front Indicators LED, 12V, 1W
Rear Indicators LED, 12V, 1W
License Plate Light Standard 12V, 5W
Battery 12V 5Ah, Maintenance-Free
Charger Optional

The dual start mode of electric start and kick start ignites quickly and stably, even newbies can easily start the vehicle without worrying about start failure. The light net weight of 95kg makes the control light and flexible, allowing newbies to easily control the vehicle, with convenient turning and parking, and no difficulty in controlling due to the heavy weight of the vehicle. The 770mm seat height design allows most newbies to easily put both feet on the ground, making riding more secure, reducing the nervousness of newbies and quickly building riding confidence. In addition, the braking operation of the vehicle is simple, the front and rear brakes work together, and the response is sensitive, which can be accurately controlled by newbies, further improving riding safety. Whether it is a newbie who just got a driver’s license or a beginner who has never ridden a motorcycle, they can quickly get started and easily control this underbone motorcycle.

Custom motorcycle orders accepted
Wholesale from Factory
